3mm Heavy Duty Galfan Cage Welded Mesh Gabions For Rock Retaining Wall

Basic Properties
Place of Origin: HB
Brand Name: SHUXIN
Certification: ISO, CE, SGS, PVOC and so on
Model Number: SX-1110
Trading Properties
Minimum Order Quantity: 10 PCS
Price: Negotiated
Standard Packaging: Usually packed by Pallet
Delivery Time: 15 business days after getting payment
Payment Terms: L/C, , T/T, Western Union, , Paypal
Supply Ability: 1000 PCS Per Week
Product Summary
Philippines 3mm Heavy Duty Galfan Cage Welded Gabions for Rock Retaining Wall Welded Cage Gabions is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions ...

Product Details

Highlight:

welded wire gabion baskets

,

retaining wall gabion cages

Material: Low Carbon Steel Wire, Galvanized Iron Wire
Hole Shape: Square, Ractangle
Type: Welded Mesh, Welded Gabion
Surface Treatment: Hot Dipped Galvanized, Galfan Coated
Usage: Protection, Garden Fence, Garden Building
Sample: Available, Free
Main Markets: Europe,America,Southeast Asia,etc.
Application: Gabions, Construction Wire Mesh, Garden, Retaining Wall, Shore Protection
Product Description

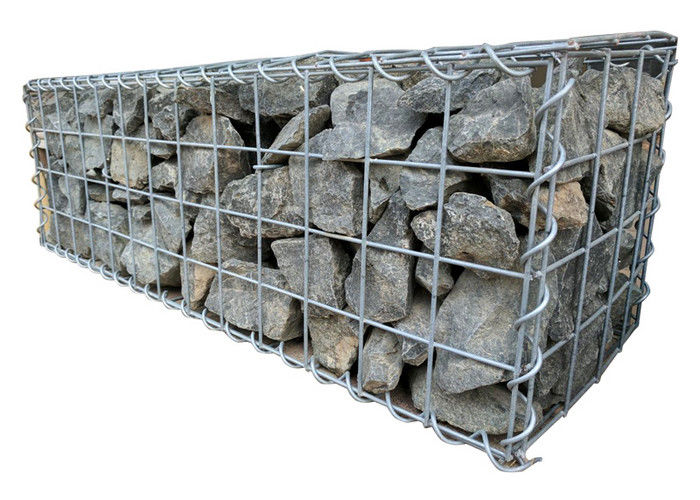

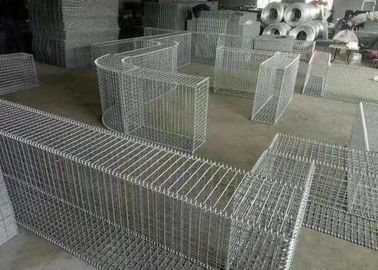

Philippines 3mm Heavy Duty Galfan Cage Welded Gabions for Rock Retaining Wall



Welded Cage Gabions is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Gabion Basket is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.

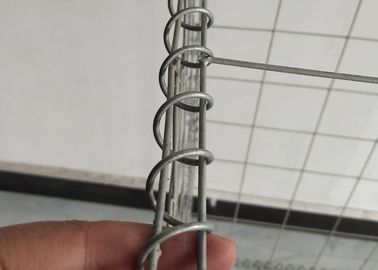

Welded Gabion stone cage is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.



Package of Welded Gabion Basket with Sone:



1. By Pallet

2. Each box Per Carton

3. Each Box per Plastic Bags

4. OEM Packing



Specification of Welded Gabions:



 Mesh Wire  Diameter  3mm,4mm,5mm,6mm etc
 Spring wire Diameter   3mm,4mm,5mm,6mm etc
 Mesh size  50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or as your request.
 Panel Size  0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m,2*2m, 2.21*2.13m or as your request.
 Finish  Electro galvanized after welded

 Hot dipped galvanized welded

 Galfan coated after welded

 Packing  Wrapped with shrink film or packed in pallet



Features of Welded Gabion Box:



1.  Easy to Install

2. Anti- Rust and Anti-Corrosive

3. Low - Cost

4. High Security

5. Beautiful Appearance



Advantages of Gabion Stone Wall:



1. Selected High Quality Low Carbon Steel Wire, Excellent Corrosion resistant performance and strong ability to withstand Natural Damage and resist adverse weather effects.

2. Complted by Automated, precision mechanical equipment, strictly Follow BS 1052:1986 Standard.

3. Directly Factory Price.

3mm Heavy Duty Galfan Cage Welded Mesh Gabions For Rock Retaining Wall
