Heavy Duty 100x50x30 Wire Welded Mesh Gabions , Wall Stone Welded Limestone Gabion

Basic Properties
Place of Origin: AP
Brand Name: SX
Certification: ISO, CE, SGS, PVOC and so on
Model Number: SX-1550
Trading Properties
Minimum Order Quantity: 10 PCS
Price: Negotiated
Standard Packaging: Usually packed by Pallet
Delivery Time: 15 business days after getting payment
Payment Terms: L/C, , T/T, Western Union, , Paypal
Supply Ability: 1000 PCS Per Week
Product Summary
Heavy Duty Galvanized 100x50x30 Wire Mesh Wall Stone Welded Limestone Gabion 100x50x30 Limestone Gabion Retaining Wall: Limestone Gabion Retaining Wall, is a kind of Gabion basket, can consist protection wall,used in garden, city road, and park and so on.Welded Gabion box also can used for flood ...

Product Details

Highlight:

welded wire gabion baskets

,

retaining wall gabion cages

Material: Q195, Low Carbon Steel Wire
Technical: Welding And Assembling
Outer Size: 200*50*50cm
Surface Treatment: Hot Dipped Galvanized, Galfan Coated
Usage: Landscape Sight, Government Project
Sample: Available, Free
Aperture: 50*50mm, 50*100mm
Application: Garden Gabion Retaining Wall, Shore Protection
Product Description

Heavy Duty Galvanized 100x50x30 Wire Mesh Wall Stone Welded Limestone Gabion

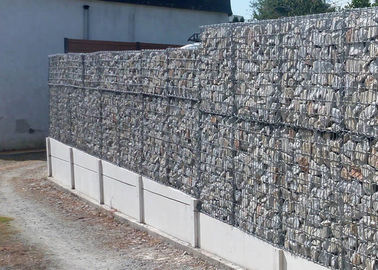

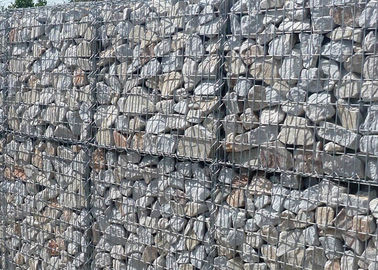

100x50x30 Limestone Gabion Retaining Wall:

Limestone Gabion Retaining Wall, is a kind of Gabion basket, can consist protection wall,used in garden, city road, and park and so on.Welded Gabion box also can used for flood control in smooth land. No matter Landscape Gabion basket or protection gabion retaining wall, both of them are often appeared in large project program. Small part of landscape used for homemade, and fit for express shipping.

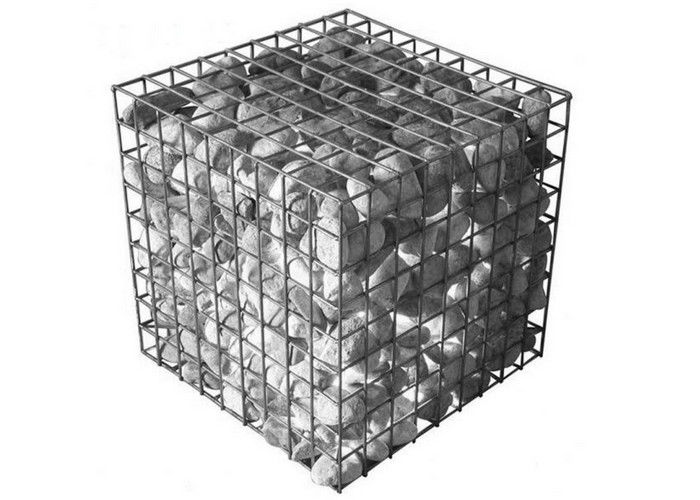

Welded Gabion stone cage is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.



Welded Cage Gabions is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Gabion Basket is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.



Gabion Wall box Applications


control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures,dams and culverts; coastal embankment works; architectural feature retaining walls.



Specification of Welded Gabions:



 Mesh Wire  Diameter  3mm,4mm,5mm,6mm etc
 Spring wire Diameter   3mm,4mm,5mm,6mm etc
 Mesh size  50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or as your request.
 Panel Size  0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m,2*2m, 2.21*2.13m or as your request.
 Finish  Electro galvanized after welded

 Hot dipped galvanized welded

 Galfan coated after welded

 Packing  Wrapped with shrink film or packed in pallet



Features of Welded Gabion Box:



1.  Easy to Install

2. Anti- Rust and Anti-Corrosive

3. Low - Cost

4. High Security

5. Beautiful Appearance



Advantages of Gabion Stone Wall:



1. Selected High Quality Low Carbon Steel Wire, Excellent Corrosion resistant performance and strong ability to withstand Natural Damage and resist adverse weather effects.

2. Complted by Automated, precision mechanical equipment, strictly Follow BS 1052:1986 Standard.

3. Directly Factory Price.
