Durable Structure 75*75mm Welded Gabion Baskets With Higher Strength

Durable Structure 75*75mm Welded Gabion Baskets With Higher Strength
Durable Structure 75*75mm Welded Gabion Baskets With Higher Strength Durable Structure 75*75mm Welded Gabion Baskets With Higher Strength

Large Image :  Durable Structure 75*75mm Welded Gabion Baskets With Higher Strength

Product Details:
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE
Model Number: SX-welded gabion
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Packaging Details: Packing into pallet
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union

Durable Structure 75*75mm Welded Gabion Baskets With Higher Strength

Description
Material: Galvanized Iron Wire Size: 100x80x30, Can Be Customzied
Wire Gauge: 4.0, 5.0 Mm Mesh Size: 75X75 Mm,50 X100 Mm
Finish: Hot Dip Galvanized Feature: Easily Assembled
High Light:

welded wire gabion baskets

,

retaining wall gabion cages

Durable Structure 75*75mm Welded Gabion Baskets with Higher Strength





Description





Welded gabion basket is usually a box filled with rocks, concrete, sometimes sand and soil for use in civil engineering, road building, military applications and landscaping.



Welded gabion baskets combine the benefits of soft and hard armor technologies to provide maximum structural protection, erosion control, vegetation growth, and vegetation reinforcement in one system



Specifications of Welded Gabion Box
 Name  Welded Gabion / Gabion Cage / Gabion Box / Gabion Basket
 Material  Low carbon steel wire
 Surface finish  Galvanized
 Color  Silver
 Connect way  Spiral wire,U clip,C ring,lacing wire,hook
 Application  Garden building, gabion wall,gabion fence
 Notes:Welded Gabion comes in different sizes which can be customized


Feature



1. Easy to Install

Align wire mesh with the spiral pole to form a single structure, the pole will fall down automatically by itself; no tools necessary.


2. High Quality Material

Made of galvanized steel wire, resistant to rust and corrosion; with grids evenly spaced at 5 x 10 cm and hooks to fasten and keep the original shape, gabion is solid and durable.


3. Multi Purpose Use

Can be used as partitions for a retaining wall, fencing, garden decoration; road building or stabilizing inclines against erosion.


4. Cost Effective

Replace traditional walls to save cost and time, easy to operate and has an appealing look.



5. Custom Fillers

Materials for filler based on your need, cobblestone, rock, brick fragments, concrete and wood blocks; lights, flowers or plants can be added for decoration and as the highlight of your yard.



How to install Welded Gabion Box?



Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.

Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.

Step 4. Welded gabion box filled with graded stone by hand or with a shovel.

Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.

Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up



Application

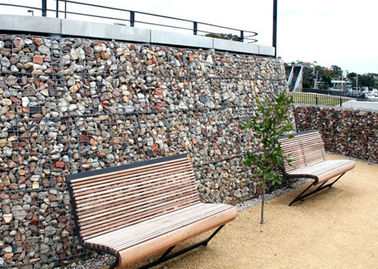

Welded Gabion Box can be used as protective fences around your properties or as a support on slopes or paths. Single stone baskets can be used in your garden to design different fences around fireplaces, as base constructions for garden benches or bars, or to surround and decorate ponds or plants. You can even use them as a decorative support for climbing plants. Metal mesh baskets are made of firm wire.
