Product Details:
|
| Material: | Galvanized Iron Wire | Size: | 50x50x50cm, 100x50x200 Cm, Etc |
|---|---|---|---|
| Mesh Size: | 50X50 Mm,50 X100 Mm | Wire Gauge: | 4.0, 5.0 Mm |
| Customization: | Yes | Color: | Sliver |
| High Light: | welded wire gabion baskets,retaining wall gabion cages |
||
3 4 5mm Welded Standard Galvanized Welded Gabion Box Terra Mesh For Architecture
Description
Welded Gabion stone cage is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
Welded Gabion could be used for prefilled on site construction which is quick and easy.
They have a variety of applications such as retaining walls for commercial, industrial and road project, landscaping, erosion control.
| Specifications of Welded Gabion Box | |
|
Material |
Galvanized steel; Galfan coated wire, stainless steel wire |
|
Wire diameter |
0.16'', 0.2'' |
|
Mesh size |
3.9" x 2" (L x W), 2" x 2" (L x W) |
|
Spiral wire diameter |
0.16'' |
|
L x W x H |
30x30x30cm, 100x100x100cm, 18" x18" x18", 50X50X100cm, 100x100x200cm,30x30x300cm etc |
|
Packing details |
a. by pallets; b. each set per package; c. OEM packing; |
|
Feature |
* Corrosion-resistant,rust-resistant * Uniform mesh size,flat and even mesh surface,weave tightly * Galvanized for longer life,low costs. |
How to install Welded Gabion Box?
1) Foundation preparation
The foundation on which the gabions are to be placed shall be cut or filled and graded as required. Surface irregularities, loose material, vegetation, and all foreign matter shall be removed from foundation surface area. Extra care should be taken with foundation preparations in order to ensure a level and smooth surface.
2) Assembly
Rotate the gabion panels into position and join the vertical edges with fasteners for gabion assembly. Where spiral fasteners are used, crimp the ends to secure the spirals in place. Where C ring type alternate fasteners are used for basket assembly, install the fasteners at a maximum spacing of 150 mm. Use the same fastening procedures to install interior diaphragms where they are required. Interior diaphragms will be required where any inside dimension exceeds 1m for gabion baskets. Diaphragms will be installed to assure that no open intervals are present that exceeds 1m.
3) Placement
Place the empty gabions on the foundation and interconnect the adjacent gabions along the top, bottom, and vertical edges using spirals or C rings.
4) Filling
The gabions shall be carefully filled with rock, ensuring alignment, avoiding bulges, and providing a compact mass that minimizes voids.
The last layer of rock shall be uniformly leveled to the top edges of the gabions. Lids shall be placed over the rock filling using only approved lid closing tools as necessary. The use of crowbars or other single point leverage bars for lid closing is prohibited due to the potential for damage to the baskets. The gabion lid shall then be secured to the sides, ends, and diaphragms with spiral binders, approved alternate fasteners, or lacing wire wrapped with alternating single and double halfhitches in the mesh openings.
Application

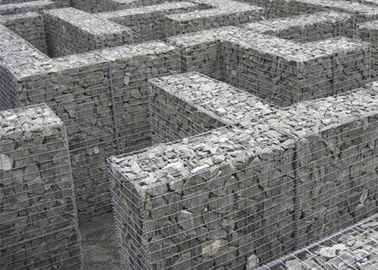

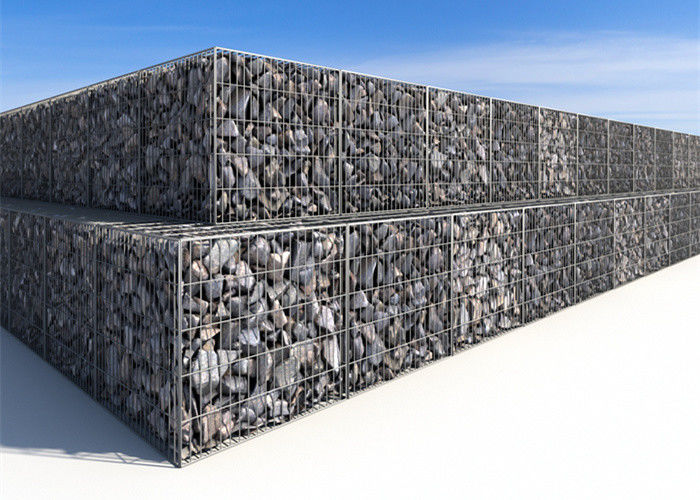

1. In the construction of gabion retaining walls;
2. For the consolidation and conservation of slopes;
3. For the consolidation and conservation of road and rail soil;
4. In the field of architecture.
