Zinc Coat 80 * 100 Mm Gabion Wall Cages / Gabion Basket Cage River Protection

Zinc Coated 80 * 100 mm Gabion Basket Cage for River Protection

Gabion Baskets are galvanized steel, double twisted, woven wire mesh filled with stone and used for various applications including, but not limited to, retaining walls, slope paving, out fall structures, weirs, drop structures and stream bank protection. Earth Wall Products’ Double Twisted Hexagonal Mesh Gabion Baskets are manufactured in accordance with and meet the guidelines of ASTMA975-97. The stone fill material used for filling the gabion units is clean, hard stone with pieces ranging from 4 – 8 inches on the greatest dimension.

Quick View of Foldable Stone Filled Woven Gabion Wire Mesh :

Production Process of Foldable Stone Filled Woven Gabion Wire Mesh :

Raw Materials (Wire Rod) - Cold drawn / Galvanized / PVC Coated - Machine Weaving - Artificial Shear, Assembly - Product Inspection - Packaging and Transport

Specification Sheet of Foldable Stone Filled Woven Gabion Wire Mesh :

PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion Wire Mesh, The using life can be        20 years, it is more suitable.

Application:

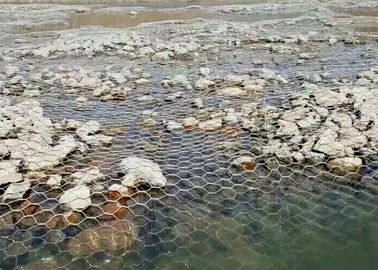

Foldable Stone Filled Woven Gabion Wire Mesh Mainly used for river, bank slope, road slope slope protection structure. It can not only prevent riverbank from making water flow and storm and wave, but also achieve the natural convection and exchange function between water bodies and the soil beneath the slope to achieve ecological balance.

Advantages:

• Economy, Just put the stone into the cage is okay to use.
• It is simple to Operation, No need special skills.
• Strong ability to resist the effects of natural damage, corrosion and weather.
• It will not collapse with a wide range of deformation
• It is good to Growing for Plant between the gap of Stone,together with the Environmental.
• Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
• It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
• Corrosion resistance: galvanized materials are not afraid of sea water.
