|Material:||Q195||Surface Treatment:||Galfan Coated|
|Application:||River Bank Project||Cage Size:||1*1*1M, 1*1*2M,1*1*3M|
|Mesh Hole:||7*9cm,6*8cm,8*10cm,10*12cm||Wire Gauge:||2.0-4.0mm, 3mm 4mm 5mm, 2.7- 4.0mm, 3-5mm, 2.0-2.4|
gabion wall baskets,
rock mesh retaining wall

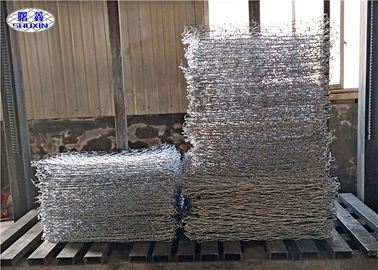

1 x 1 x 1 Zinc Coated Hexagonal Gabion Box Price in Philippines
* Material: Low carbon steel wire Q195
* Processing mode: twist, reverse twist, doubled sided twist

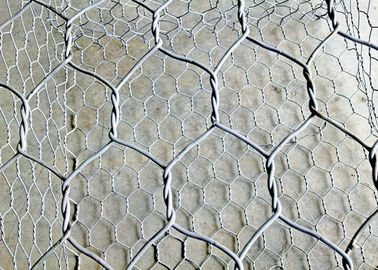

I. Electric galvanized hexagonal mesh;
II. Hot dipped galvanized hexagonal mesh;
III.PVC coated hexagonal mesh.
* Feature:firm in structure, flat surface, with fine resistant to corrosion or oxidation.
Specification Sheet of Foldable Stone Filled Woven Gabion Wire Mesh :
|Wire Diameter||Mesh Hole||Size of Box Cage|
|2.0mm-4.0mm||60 * 80 mm||
2M * 1M * 1M
3M * 1M * 1M
4M * 1M * 1M
2M * 1M * 0.5M
4M * 1M * 0.5M
|80 * 100 mm|
|80 * 120 mm|
|100 *120 mm|
|120 * 150mm|
|90 * 110 mm|
|Surface Treatment: Galvanized, Hot Dipped Galvanized,Galfan Coated, PVC Coated|
PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion Wire Mesh, The using life can be 20 years, it is more suitable.
Gabion Baskets are galvanized steel, double twisted, woven wire mesh filled with stone and used for various applications including, but not limited to, retaining walls, slope paving, out fall structures, weirs, drop structures and stream bank protection. Earth Wall Products’ Double Twisted Hexagonal Mesh Gabion Baskets are manufactured in accordance with and meet the guidelines of ASTMA975-97. The stone fill material used for filling the gabion units is clean, hard stone with pieces ranging from 4 – 8 inches on the greatest dimension.

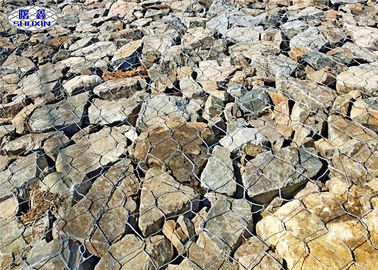

Foldable Stone Filled Woven Gabion Wire Mesh Mainly used for river, bank slope, road slope slope protection structure. It can not only prevent riverbank from making water flow and storm and wave, but also achieve the natural convection and exchange function between water bodies and the soil beneath the slope to achieve ecological balance.
