Galvanized Steel 80x100mm 60x80mm Stone Filled Gabions Basket Retaining Wall

Galvanized Steel 80x100mm 60x80mm Stone Filled Gabions Basket Retaining Wall
Galvanized Steel 80x100mm 60x80mm Stone Filled Gabions Basket Retaining Wall Galvanized Steel 80x100mm 60x80mm Stone Filled Gabions Basket Retaining Wall

Large Image :  Galvanized Steel 80x100mm 60x80mm Stone Filled Gabions Basket Retaining Wall

Product Details:
Place of Origin: Hebei, China
Brand Name: Shuxin
Certification: CE, SGS
Model Number: SX-1
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meter
Packaging Details: Packing into pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 square meter per month

Galvanized Steel 80x100mm 60x80mm Stone Filled Gabions Basket Retaining Wall

Description
Material: Low-Carbon Iron Wire Wire Diameter: 2.7-4.0mm
Surface Treatment: PVC Coated, Galvanized Hole Size: 6x8cm, 10x12cm
Length: 10m-100m, Can Be Customzied Size: 4*1*1m
High Light:

stone basket retaining walls

,

galvanised steel stone cage


Philippines manila galvanized steel 80x100mm 60x80mm gabion basket retaining wall


Product Description

Gabion baskets are made of heavy galvanized wire / Golfan wire / PVC coated wires, the mesh shape is hexagonal style. The gabion baskets are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.

Specification


CharacteristicsGalvanizedPVC CoatedGalvanizedPVC CoatedGalvanizedPVC Coated
Mesh Hole80 x 100mm60 x 80mm100x120mm
Wire Dia2.7mm3.7mm2.2mm3.2mm2.7mm3.7mm
Selvedge Wire3.4mm4.4mm2.7mm3.7mm3.4mm4.4mm
Binding Wire2.2mm3.2mm2.2mm3.2mm2.2mm3.2mm
Whole Size

2m x 1m x 1m 2m x 1m x 0.5m 3m x 1m x 1m
3m x 1m x 0.5m; 4m x 1m x 1m 4m x 1m x 0.5m


Feature

1. High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.

2. Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.

3. Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses.

4. Good ductility, no structural joints.

Advantages

1. Economic. Just fill the stone into the gabions and seal it.
2. Simple installation. No special technology needed.
3. Weather proof under natural destroy, corrosion resistant.
4. No collapse even under big scope of deforming.

5. Good permeation can prevent the damage by hydrostatic.
6. Less transport freight. It can be fold together for transport.

7. Sludge in the stones is good for plant growing.

Application

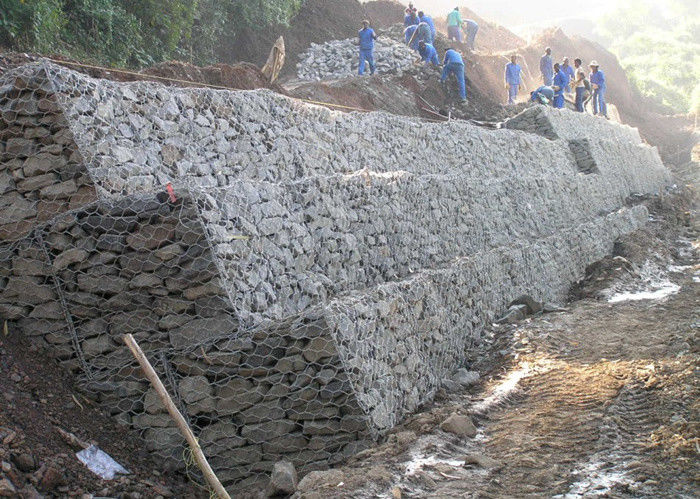

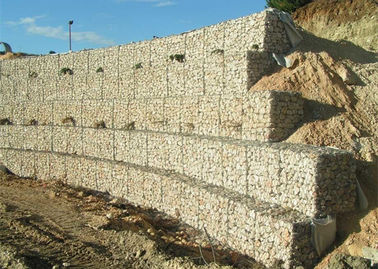

Gabion wall cages are widely used on the project sites after filling it with natural stones. They act as a flexible and permeable structures such as Retaining walls, sea walls, channel lining and wires for erosion control projects.

1.Control and guide of water or flood
2.Flood bank or guiding bank
3.Preventing of rock breaking
4.Water and soil protection
5.Bridge protection
6.Strengthening structure of soil

7.Protection engineering of seaside area
Galvanized Steel 80x100mm 60x80mm Stone Filled Gabions Basket Retaining Wall 0
