Long Barb Length and Width for Extra Security with Razor Barbed Wire

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: CE ISO SGS COC PVOC
Model Number: 96 birds 128 birds
Trading Properties
Minimum Order Quantity: 10 sets
Price: Negotiated
Standard Packaging: Pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 set per week
Product Summary
Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the ...

Product Details

Highlight:

barbed wire and razor wire

,

barbed wire razor

,

barbed wire razor wire

Barbed Length: Barbed Length 10 12 18 22 28 30 60 65
Core Wire Diameter: Core Wire Diameter 2.5mm
Feature: Easily Install, Easily Clean,long Lifetime
Life Duration: ≥ 20 Years
Warranty: ≥ 3 Years
Surface: Galvanized
Product Description

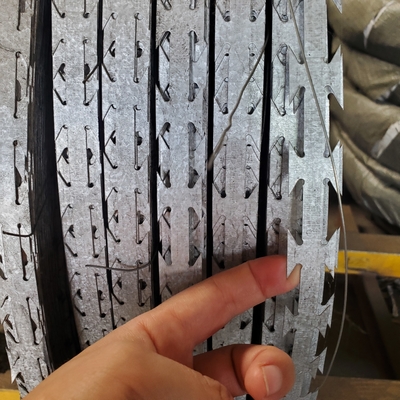

                 Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.
The wire and strip are galvanized or PVC coated to prevent corrosion.

Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate

Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types
: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65

Long Barb Length and Width for Extra Security with Razor Barbed Wire



Model Thickness Wire dia Barb Length Barbed Width
Barb Spacing
BTO-10 0.5+/-0.05 mm 2.5+/-0.1mm 10+/-1mm 13+/-1mm 26+/-1mm
BTO-12 0.5+/-0.05 mm 2.5+/-0.1mm 12+/-1mm 15+/-1mm 26+/-1mm
BTO-18 0.5+/-0.05 mm 2.5+/-0.1mm 18+/-1mm 15+/-1mm 38+/-1mm
BTO-22 0.5+/-0.05 mm 2.5+/-0.1mm 22+/-1mm 15+/-1mm 38+/-1mm
BTO-28 0.5+/-0.05 mm 2.5+/-0.1mm 28+/-1mm 15+/-1mm 53+/-1mm
BTO-30 0.5+/-0.05 mm 2.5+/-0.1mm 30+/-1mm 21+/-1mm 54+/-1mm
CBT-60 0.6+/-0.05 mm 2.5+/-0.1mm 60+/-2mm 32+/-1mm 102+/-1mm
CBT-65 0.3+/-0.05 mm 2.5+/-0.1mm 65+/-2mm 21+/-1mm

102+/-1mm





Long Barb Length and Width for Extra Security with Razor Barbed Wire



Long Barb Length and Width for Extra Security with Razor Barbed Wire

Long Barb Length and Width for Extra Security with Razor Barbed Wire
