Product Details:
|
| Mesh Size: | 3" | Internal Cells: | 5+4=9 Cells |
|---|---|---|---|
| Geotextile Fabric: | 300g/㎡ | Application: | Military Defensive Barrier, Flood Barrier, Etc. |
| Life Duration: | ≥ 25 Years | Wire Diameter: | 4-5mm |
| Panel Size: | 12 Type Size | ||
| High Light: | hesco barrier mil 7,mil 7 hesco barrier,galvanized gabion box hesco wall |
||
Sand Filled Hesco Barriers Galvanized Gabion Box Hesco Barrier Wall Mil 7
Sand Filled Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Sand Filled Barriers are some lined units assembled by galvanized gabion baskets with heavy duty non-woven geotextile to prevent flood. China barrier bastion factory-Anping Shuxin Wire Mesh Manufactory Co.,Ltd is one original and professional maufacturer located in Anping county the largest wire mesh base in China.
we can provide all ideal designs for your projects. The popular unit types of blast wall , all types can be customized to recoverable types . Regarding the color of geotextile, available in beige color, militatry green color and grey color,etc. We will meet any special sizes you required, and support professional advises according to your projects.
Sand Filled Barriers operational principle
It is made of galvanized welded mesh panels, spring with other fittings, canbe filled with sand,earth,
cement, stone, can be used in separate cell or some cells joint together.
Sand Filled Barriers Detail Specification
Material : galvanized wire,hot dipped galvanized wire,hot dipped galvanized after welding,galfan steel wire , Alu-zinc coated wire.
mesh wire diameter : 3mm,4mm,5mm,6mm and so on .
Mesh hole Size :50x50mm, 75x75mm, 76.2x76.2mm, 50x100mm, 100x100mm, as your request .
Spring wire diameter : 3mm,4mm,5mm,6mm etc .
army bastion Finished : Hot dipped galvanized and galfan .
steel wire barriers Geotextile : In heavy duty non-woven polypropylene .
steel wire barriers Geotextile color : beige-sand, olive green,gray etc .
steel wire barriers Geotextile thickness : 300g/m2, 350g/m2, 400g/m2 .
common size : 0.61x0.61x0.61m 2Cells, 1x1x1m 10Cells, 1.37x1.06x1.06m 9Cells, 1x1.5x1m 10Cells, 0.61x0.61x0.61m 5Cells, 1.68x0.61x0.61m 5Cells, 2.21x2.13x2.13m 13Cells, 1.37x1.22x1.10m 9Cells as your request .

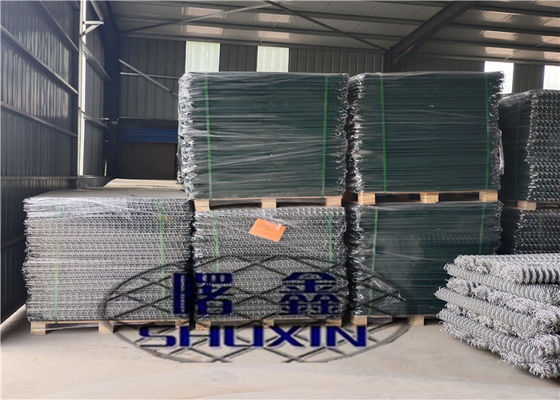

Package: Warapped with shrink film then packed in pallet,and the last packed with steel belt .
Sand Filled Barriers Application
1.Perimeter security and defence walls
Sand Filled Barriers Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid

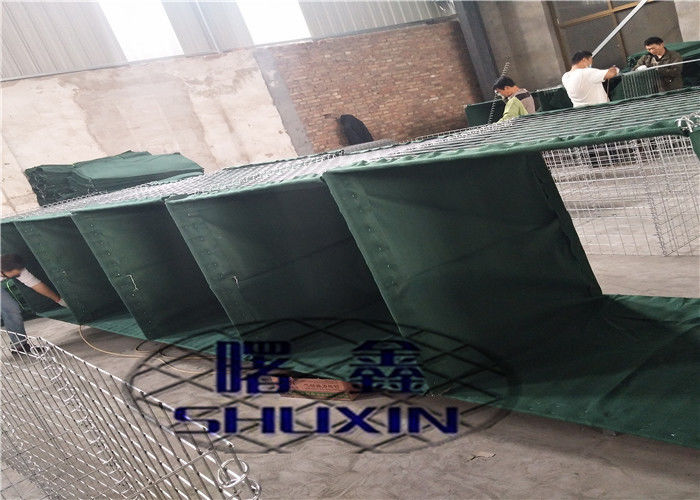

It is a multi-cellular barrier system manufactured from welded zinc-aluminum coated steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.The hesco bastion is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It has seen considerable use in Iraq and Afghanistan,Dominican Republic, Afghanistan, Iraq, USA, France, Kenya, Iran, Saudi Arabia, Italy, Germany.Pakistan, Kazakhstan, Mali, Burkina Faso, Ghana, Mozambique
