Product Details:
|
| Mesh Size: | 3"x 3" Or 8cm X 8cm | Internal Cells: | 5 Cells Or 4 Cells Or Single One Cell |
|---|---|---|---|
| Geotextile Fabric: | 300g/㎡ | Geotextile Color: | White, Beige Or Military Green |
| Application: | Military Defensive Barrier, Flood Barrier, Etc. | Life Duration: | ≥ 25 Years |
| Useful: | Obsercation Points | Feature: | Defensive Firing Positions |
| High Light: | welded wire mesh sand filled barriers,welded wire mesh hesco barrier,4 cells sand filled barriers |
||

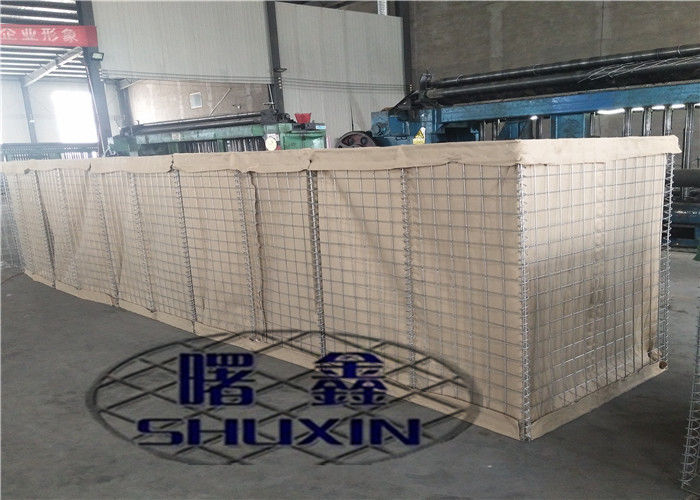

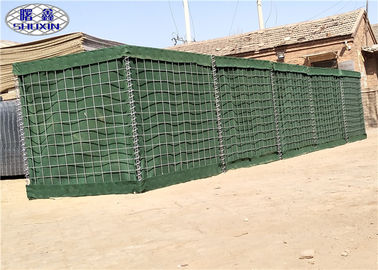

Welded Wire Mesh Sand Filled Barriers Defensive Bastion Hesco Barriers for Military Sand Military Sand Gabion Box Wall
Sand Filled Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Sand Filled Barriers is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It has seen considerable use in Iraq and Afghanistan.
Sand Filled Barriers operational principle
It is made of galvanized welded mesh panels, spring with other fittings, canbe filled with sand,earth,
cement, stone, can be used in separate cell or some cells joint together.
Sand Filled Barriers Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Sand Filled Barriers Application
1.Perimeter security and defence walls
2.Equipment revetments
3.Ammunition compounds
4.Personnel and material bunkers
5.Obsercation points
6.Defensive firing positions
7.Entry control points
8.Guard posts
9.Explosives and contraband search areas
10.Highway checkpoints
11.Border crossing checkpoints
12.Protecting existing structures
13.Highway traffic management
14.Hostile Vehide Mltigation
Sand Filled Barriers Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
The hesco bastion is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms. It has seen considerable use in Iraq and Afghanistan,Dominican Republic, Afghanistan, Iraq, USA, France, Kenya, Iran, Saudi Arabia, Italy, Germany.Pakistan, Kazakhstan, Mali, Burkina Faso, Ghana, Mozambique
Assembly
Assembling the Hesco Bastion entails unfolding it and (if available) using a front end loader to fill it with sand, dirt or gravel. The placement of the barrier is generally very similar to the placement of a sandbag barrier or earth berm except that room must generally be allowed for the equipment used to fill the barrier. The main advantage of Military Barrier, strongly contributing to their popularity with troops and flood fighters, is the quick and easy setup.
Previously, people had to fill sandbags, a slow undertaking, with one worker filling about 20 sandbags per hour. Workers using Military Barrier and a front end loader can do ten times the work of those using sandbags.
The Hesco Barrier come in a variety of sizes. Most of the barriers can also be stacked, and they are shipped collapsed in compact sets. Example dimensions of typical configurations are 4'6" x 3'6" x 32' (1.4m x 1.1m x 9.8m) to 7' x 5' x 100' (2.1m x 1.5m x 30m).
