Product Details:
|
| Mesh Size: | 3"x 3" Or 8cm X 8cm | Internal Cells: | 5+4=9 Cells |
|---|---|---|---|
| Geotextile Color: | White, Beige Or Military Green | Application: | Military Defensive Barrier, Flood Barrier, Etc. |
| Life Duration: | ≥ 25 Years | Barrier Size: | 1*1*1 M |
| High Light: | sand filled barriers CE,welded mesh sand filled barriers,3x3 inch sand filled barriers |
||

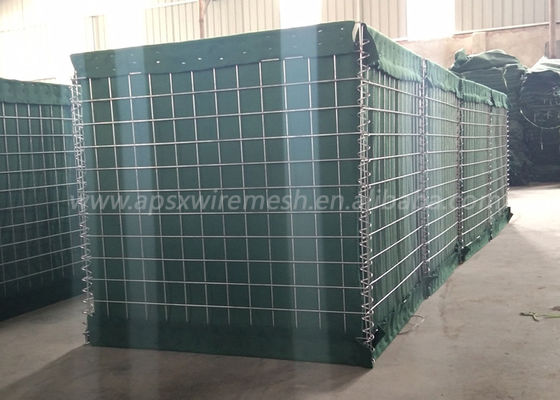

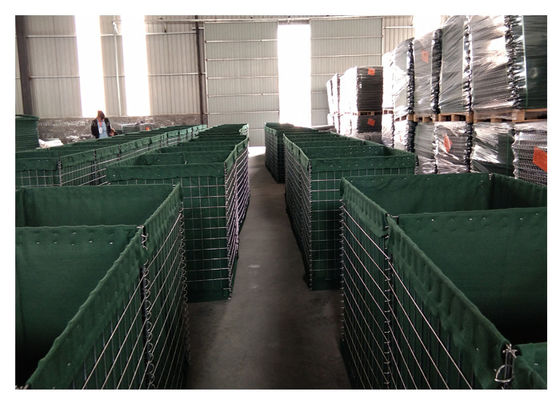

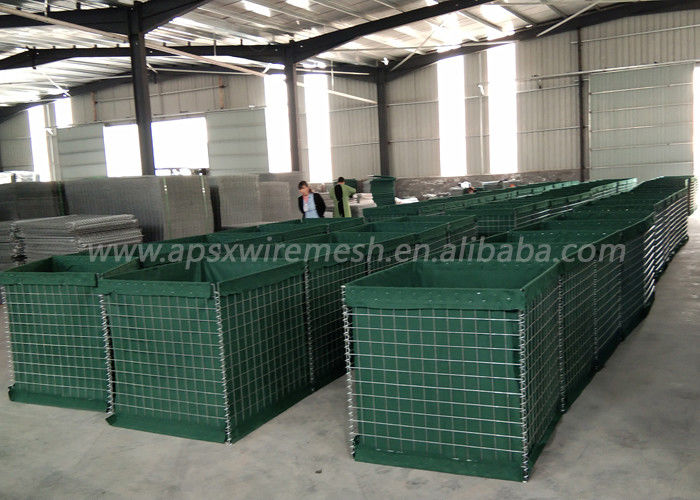

Factory Direct Sale Military Sand Filled Barriers , Perimeter Security Protective Wall
Sand Filled Barriers are some lined units assembled by galvanized gabion baskets with heavy duty non-woven geotextile to prevent flood. China barrier bastion factory-Anping Shuxin Wire Mesh Manufactory Co.,Ltd is one original and professional maufacturer located in Anping county-the largest wire mesh base in China.
Available OEM & ODM in developing military barriers, we can provide all ideal designs for your projects. The popular unit types of blast wall , all types can be customized to recoverable types . Regarding the color of geotextile, available in beige color, militatry green color and grey color,etc. We will meet any special sizes you required, and support professional advises according to your projects.
Sand Filled Barriers Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Sand Filled Barriers Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Sand Filled Barriers Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
1. Police force points and Check points
2. Military Defensive barriers
3. Observation points and border checkpoints
4. Military barrier fortification system
5. Border control and temporary accommodation bunkers
Sand Filled Barriers Features
1.Galfan coated steel mesh frame
2. The integrated unit provides internal structural integrity.
3.Excellent strength and structural integrity
4.High tensile and impact resistance
5. Improve transportation efficiency and speed
Packaging:
The welded gabion mesh are collapsed when shipping.Usually in nude, or in pallet then wrapped with plastic film.Besides, customers' request are also available.
