Product Details:
|
| Type: | Welded Wire Mesh | Wire Diameter: | 4mm, 5mm |
|---|---|---|---|
| Hole Shape: | Square | Mesh Size: | 76.2 X 76.2 Mm, 3''X3'' |
| Panel Size: | Can Be Customized | Color: | White, Sand Color,earth Yellow, Military Green |
| Geotextile: | 2mm Heavy Duty Non-woven Polypropylene | Height: | 2' |
| High Light: | concertainer defence wall system hesco gabion,sand filled barriers hesco gabion,CE sand filled barriers |
||
Height 2' HESCO Sand Filled Barriers Concertainer Defence Wall System With Geotextile Filter Fabric
HESCO Sand Filled Barriers Product Description

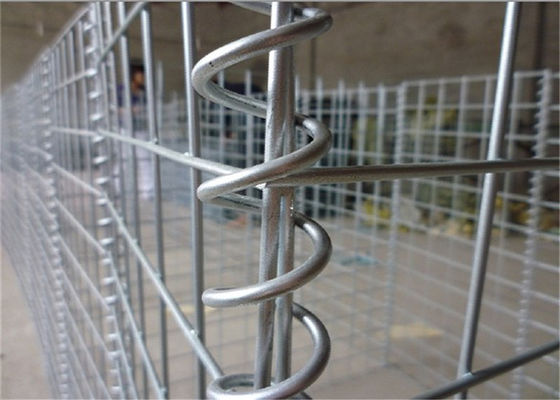

1. HESCO Sand Filled Barriers is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.
2. HESCO Sand Filled Barriers Material:
Military Defensive barrier is made of galvanized welded mesh, spring with other fittings, can be filled with sand, earth, cement, stone, can be used in separate cell or some cells joint together.
3. HESCO Sand Filled Barriers Specification:
1) Material: Steel wire, galvanized wire
2) Wire diameter: 3mm-5mm
3) Hole: 2''x2'',3''x3''
4) Hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be produced as requested.
5) Geotextile: in non-woven geotextile, color can be white, beige-sand color.
6) Color: White, Sand color, Military Green
Type
| HESCO Sand Filled Barriers | |
| Type 1 | 1.37m* 1.06m*10.0m |
| Type 2 | 0.61m* 0.61m*1.22m |
| Type 3 | 1.0m*1.0m*10.0m |
| Type 4 | 1.0m*1.5m*10.0m |
| Type 5 | 0.61m* 0.61m*3.05m |
| Type 6 | 0.61m* 0.61m*6.10m |
| Type 7 | 2.21m*2.13m*8.52m |
| Type 8 | 1.37m*1.22m*10.0m |
| Type 9 | 1.0m*0.76m*9.14m |
| Type 10 | 2.13m*1.52m*7.62m |
HESCO Sand Filled Barriers Applications
Military defensive barrier is made of the steel welded mesh and lined with heavy duty non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defence wall or bunker. Military defence barrier is originally used to control flood and erosion on beaches and marshes.
Environment is that of a Military defence barriers, used to protect personnel and equipment from the effects of weapons and to increase security around a perimeter. For maximum strength and ease of construction, defence walls are generally constructed from multiple courses, and in a pyramid configuration.
HESCO Sand Filled Barriers Advantages
1. The unique design, strength and versatility enable easily-constructed corners, and when joined and filled the system will shape the defensive barrier to the surrounding landscape, creating barriers of exceptional strength and structural integrity.
2. Strongly contributing to their popularity with troops and flood fighters, is the quick and easy setup.
HESCO Sand Filled Barriers Features
1. A pre-fabricated gabion of galvanised welded-mesh steel fitted with a UV-protected Polypropylene geo-textile liner.
2. Filling material is an easily-obtained mix of sand and small stones.
3. Can be connected together to any length, and can be stacked for additional height.
4. Primary military use is as force protection against blast and projectiles.
5. One of the best features of the defensive barrier is the ease in which it is set up. Get it flown in or pull it off a truck, unfold it, use a front end loader or other heavy equipment to fill it up with dirt, sand or gravel.
HESCO Sand Filled Barriers
Perimeter Security Barrier and Defence Wall
Temporary Fort and Command Post
Observation Points and Border Checkpoints
Military Barrier Fortification System
Equipment Revetment
Explosives and Contraband Search Areas
Guard Posts
Personnel and Material Bunkers
