Standard Hexagonal Fine Mesh Metals Gabion Baskets

Standard Hexagonal Fine Mesh Metals Gabion Baskets
Standard Hexagonal Fine Mesh Metals Gabion Baskets Standard Hexagonal Fine Mesh Metals Gabion Baskets Standard Hexagonal Fine Mesh Metals Gabion Baskets

Large Image :  Standard Hexagonal Fine Mesh Metals Gabion Baskets

Product Details:
Place of Origin: Hebei,CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: GABION
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: Negotiated
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day

Standard Hexagonal Fine Mesh Metals Gabion Baskets

Description
Wire Gauge: 2.0mm-4.0mm Aperture: 80*100mm
Lacing Wire: 2.2mm Surface Treatment: PVC Coated/Heavy Galvanized
Mesh Shape: Hexagonal Hole Feature: Anti-corrosion
High Light:

standard fine mesh metals gabion baskets

,

hexagonal fine mesh metals gabion baskets

,

fine mesh metals gabion baskets

Standard Hexagonal Mesh Gabion Sizes Gabion Basket Prices Galvanized Iron Wire In Kenya



Gabion Cage Description :



Gabion baskets, also called gabion boxes, are made of corrosion-resistant, high-strength and ductile galvanized wire or PVC coated wire through mechanical weaving. Wire material is zinc -5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

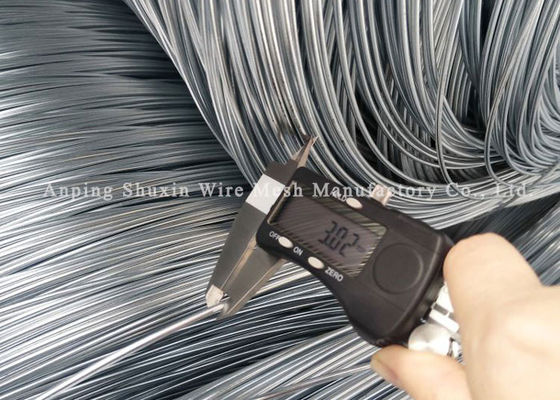

Gabion basket is an ecological grid structure. The stone cage net is mechanically woven from low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire. The box-shaped structure made by the net is the stone cage. The diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire is not less than 38kg/m2, and the metal coating weight is generally higher than 245g/m2. The diameter of the edge wire of the gabion mesh is generally larger than the diameter of the wire. The length of the twisted part of the double wire shall not be less than 50mm. To ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.



Material Galvanized low carbon steel wire
Wire diameter Mesh wire:2.0mm-4.0mm
  Selvedge wire:3.4mm, 3.8mm
  Lacing wire:2.2mm, 2.5mm
Mesh size 60*80mm, 80*100mm, 90*110mm, 100*120mm
Gabion size 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m
Surface treatment HD galvanized, PVC coated
Characteristics Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported.
Usage Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project

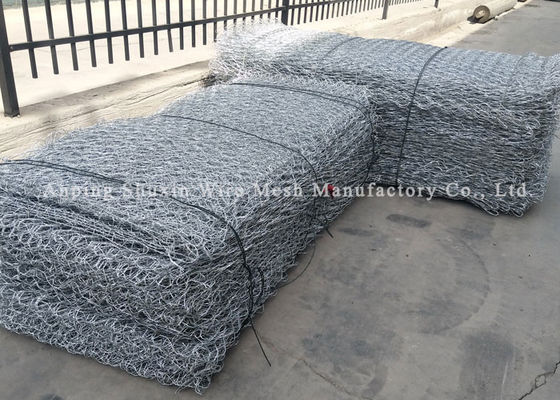

Packaging Packed in bundles or pallets or according to customer's requirements.

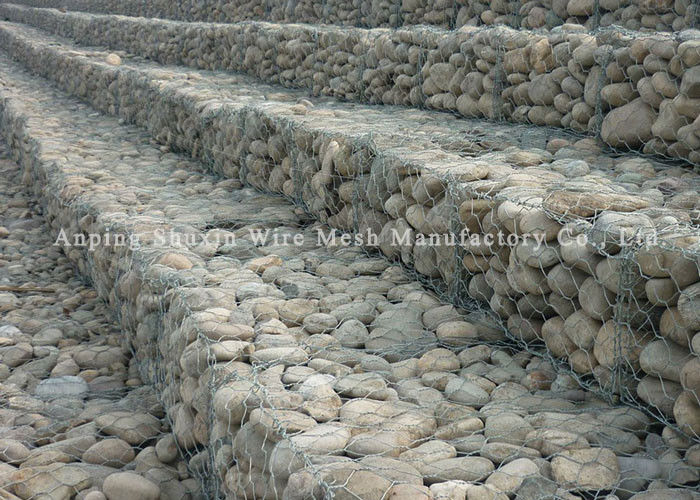

Gabion Cage Applications :


• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road


Gabion Cage Advantage:


Flexibility: Flexibility is an important benefit of any gabion structure. The double-twist hexagonal mesh construction permits it to tolerate differential settlement without fracture. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.


Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability. Generally, the wire mesh is needed for the first few years of the structure’s life; later the void between the stones is filled with soil, silt, and plant roots which act as a bonding agent for the stones.


Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy. This is evident on coast protection installations where gabion structures remain effective long after a massive rigid structure fails. Additionally, the double twisted hexagonal mesh won’t unravel if cut.


Permeability: Gabion walls are previous to water and stabilize slopes by the combined action of draining and retaining, precluding the development of hydrostatic pressure behind the gabion wall. Drainage is accomplished by gravity, as well as evaporation as the porous structure permits air circulation through it. As plant growth develops within the structure, the process of transpiration assists in removing moisture from the backfill – a much more efficient system than weep holes in standard masonry walls.


Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
• It requires little maintenance
• Its installations does not require skilled labor and stone fill is available on site or from nearby quarries,
• It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth.
• Gabions are porous, requiring no costly drainage provision


Ecology: Gabions is an environmentally sensitive solution to slope stabilization. It has already been mentioned that stone fill is done with natural stones making the gabions, naturally porous allowing interaction between the land and the water table and also persuades deposition of soil in the smaller voids between the stone fill during drainage that again promote vegetation growth.



Our Markets :


By now we have already established business relations with 45 customers from Southeast Asia, Asia, Europe, Middle East, Africa,
and quadruple the sales amount and customers annually. We almost have customers all over the world.



Standard Hexagonal Fine Mesh Metals Gabion Baskets 0
