Product Details:
|
| Wire Gauge: | 2.0mm-4.0mm | Material: | Galvanized Iron Wire |
|---|---|---|---|
| Gabion Box Size: | 1*1*1m,2*1*1m | Selvedge Wire: | 3.0-4.0 Mm |
| Mesh Shape: | Hexagonal Hole | Feature: | Corrosion Resistance |
| High Light: | 4mm gabion wall cages,flexible gabion wall cages,galvanised cages for stones |
||
River rock gabion mesh basket 4 mm iron wire flexible gabion baskets price in Nepal
Gabion Basket Description :
Gabion basket is woven from low-carbon steel wire treated with anti-corrosion technology. The mesh is shaped like a hexagon. The cage has a spacer per meter and is divided into independent units.

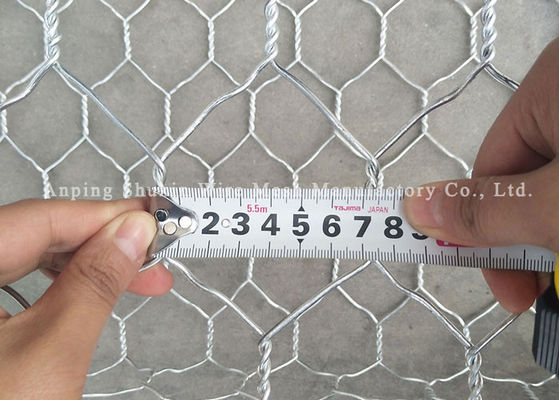

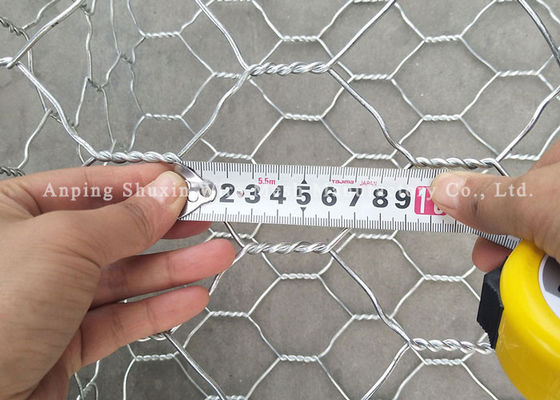

Mesh hole : 80*100 mm
Mesh wire : 2.7 mm
Tie wire : 2.2 mm
Selvedge wire : 3.4 mm
Including binding wire for gabion box.
We have 7 machines to produce gabion baskets, and daily production is 30,000 square meters. Have a lot of stock
| Gabion specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||

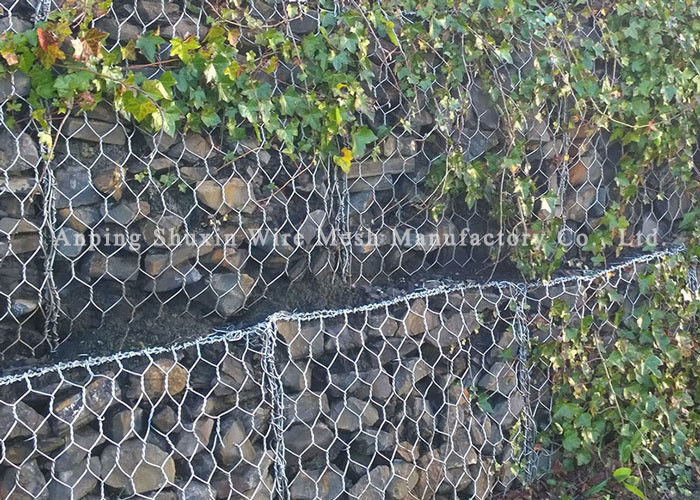

Introduction to the use of gabion basket:
The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.
●Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
●Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.
●Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.
Gabion Basket Advantage:
1. The flexible structure can adapt to the changes of the slope without being destroyed, and has better safety and stability than the rigid structure;
2. Strong anti-scouring ability, can withstand the maximum water flow speed up to 6m/s;
3. The structure is inherently water-permeable, and has strong tolerance to the natural and filtering effects of groundwater. Suspended matter and silt in the water can be deposited in the rockfill, which is beneficial to the growth of natural plants. Restore the original ecological environment.
Gabion Basket Installation Process:
1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
