Hexagon Pvc Coated Stainless Steel Gabion Baskets For Preventing

Basic Properties
Place of Origin: Hebei China
Brand Name: SHUXIN
Certification: ce
Trading Properties
Minimum Order Quantity: 50
Price: Negotiated
Standard Packaging: wooden box ,wooden pallet
Delivery Time: 5-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Product Summary
Hingh Quality Hexagon PVC Coated Gabion Wire Mesh Basket For Preventing Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon ...

Product Details

Highlight:

hexagon stainless steel gabion baskets

,

pvc coated stainless steel gabion baskets

,

stainless steel gabion baskets for preventing

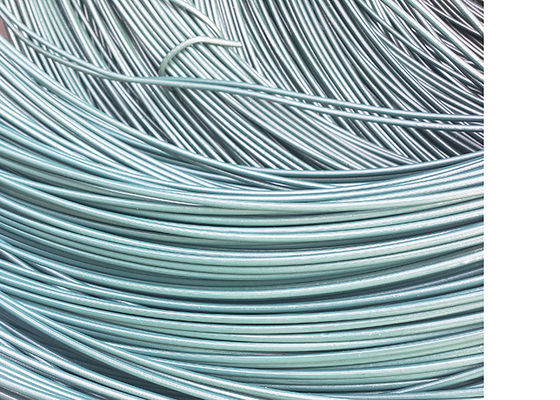

Material: Galvanized Iron Wire ,PVC Wire
Hole Shape: Hexagonal,
Application: Gabion Wall
Type: Weave
Package: Wooden Pallet
Cetification: CE SGS ISO COC
Product Description

Hingh Quality Hexagon PVC Coated Gabion Wire Mesh Basket For Preventing





Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.



Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.



Gabion Specification :

Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire

Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.

Gabion size : 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,

5x1x0.3m,6x2x0.3m etc.,customized is available.

Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized

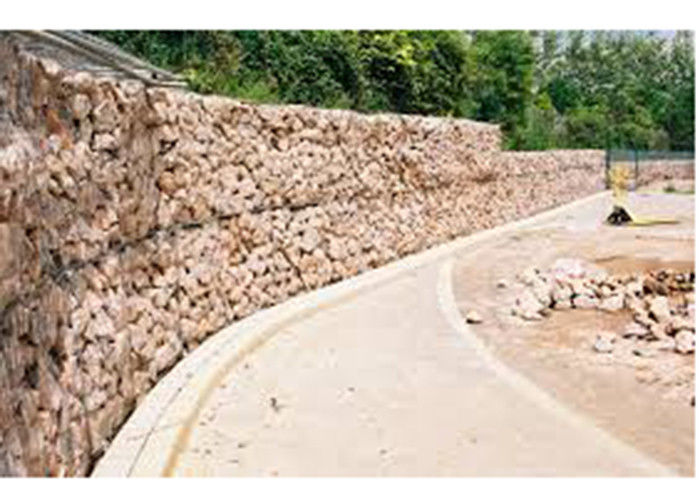

Gabion application: can be widely used in flood controlling,retaining wall,river bank protection,slope protection



Gabion box

(mesh size):

80*100mm

100*120mm

Mesh Wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire diameter 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g,≥220g/m2

Gabion mattress

(mesh size):

60*80mm

Mesh wire diameter. 2.2mm zinc coating:60g, ≥220g/m2
Edge wire diameter. 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g, ≥220g/m2



special sizes Gabion

are available



Mesh wire diameter 2.0~4.0mm

superior quality,competitive price and

considerate service

Edge wire diameter 2.7~4.0mm
Tie wire diameter 2.0~2.2mm



Gabion wire mesh basket advantage

Economic. Just fill the stone into the gabion and seal it.

Easy to install.

High zinc coating thus anti-rust and anti-corrosive.

Low cost and High security.

Good permeation can prevent the damage by hydrostatic pressure
Less transport freight. It can be folded together for transport and further installation.



Gabion basket application:

Control and guide of water or flood

Flood bank or guiding bank

Preventing of rock breaking

Water and soil protection

Bridge protection

Strengthening structure of soil

Protection engineering of seaside area



Gabion box Features

Strong structure, flat surface, good corrosion resistance, oxidation resistance, etc.

Hexagon Pvc Coated Stainless Steel Gabion Baskets For Preventing



Construction steps



The construction combination and stone filling steps can be summarized as follows: Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire. Rock fill in structure Cover the structure and fasten it with tie wire.
