Product Details:
|
| Wire Gauge: | 2.0mm-4.0mm | Aperture: | 80*100mm |
|---|---|---|---|
| Lacing Wire: | 2.2mm | Surface Treatment: | PVC Coated，Heavy Galvanized |
| Mesh Shape: | Hexagonal Hole | Feature: | Durable，Corrosion Resistance |
| High Light: | rust proof galvanized gabion basket,hexagon galvanized gabion basket,seawall protection galvanized gabion basket |
||
Rustproof Galvanized Galfan Hexagon Gabion Basket For Seawall Protection
Gabion Cage Description :

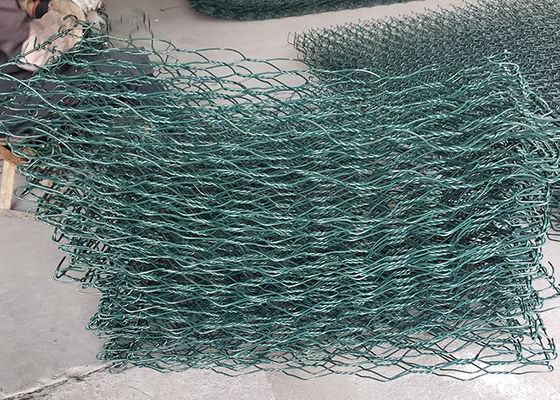

Gabion basket is made of twisted hexagonal woven mesh.
The metal wire used to make gabion baskets is made of soft tensile heavy galvanized steel, and PVC coating can also be used for additional corrosion protection when the application requires. The double twisting of the woven wire mesh provides structural integrity, strength and continuity by increasing the non-loosening effect of preventing any accidental damage from spreading. Fastening wires are used to assemble and interconnect empty units and to close and fix stone filling units. Once assembled, the basket will be filled with stones at the scene.
Gabion Specification :
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion size : 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion application: can be widely used in flood controlling,retaining wall,river bank protection,slope protection
| Gabion basket | |
| Mesh wire | 2.0mm-4.0mm |
| Mesh size | 60*80mm, 80*100mm, 90*110mm, 100*120mm, 120*150mm |
| Selvedge wire | thicker 0.5mm-1.0mm than mesh wire |

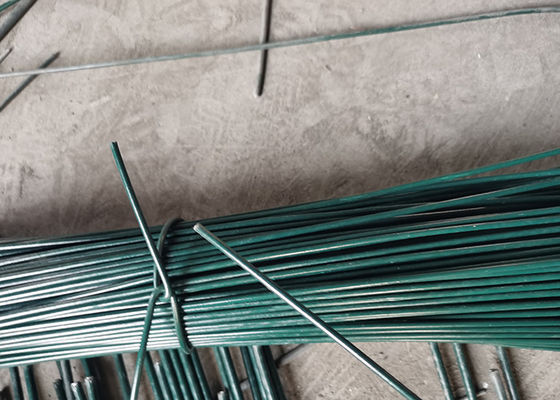

| Tie wire | 2.2mm, 2.5mm |
| Gabion size | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m |
| Surface treatment | high zinc coated, HD galvanized, PVC coated |
Gabion Box Material :
1. hot-dip galvanized low carbon steel wire,
2. Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion.
3. PVC coated , PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
4. Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
5. zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
Gabion Cage Applications :
• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road
Gabion Basket Installation Process:
1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
The packing:

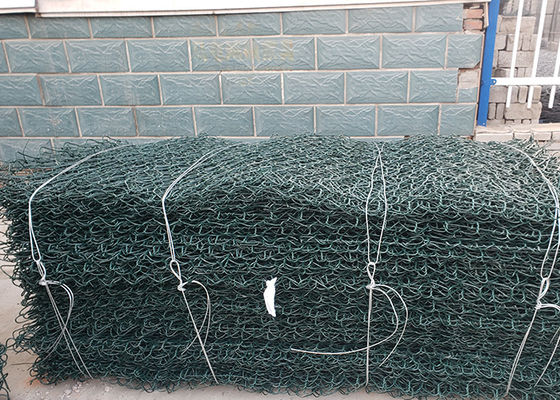

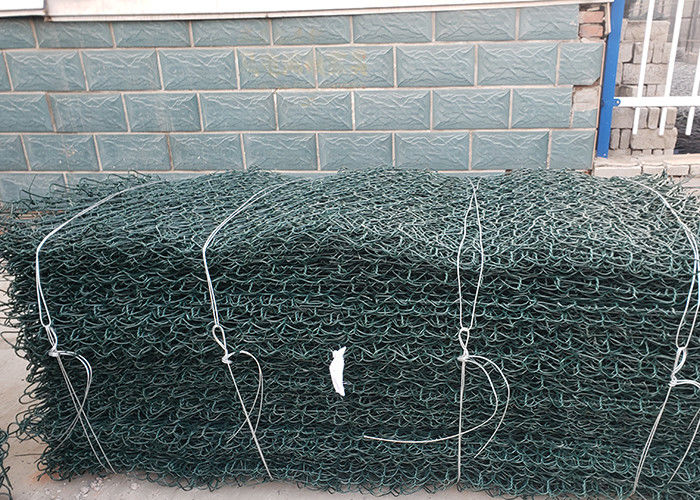

woven bags of the above and bottom,high quality package or as customers requested In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. according to customers requirement.
The Shipping:
Production time :15-20 days after received your payments Transportation way : by see or by air Port: XinGang TianJin or as your order
