Standard Military Hot Galvanized 5m Tall Sand Filled Barriers

Basic Properties
Place of Origin: Hebei,China
Brand Name: SHUXIN
Certification: ISO:9001,CE
Model Number: SX-Hesco Defensive Barriers
Trading Properties
Minimum Order Quantity: 500 pcs
Price: Negotiated
Standard Packaging: Plastic and then Pallet
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100 pcs per day
Product Summary
Standard Military Hot Galvanized Defensive Barriers,Hesco Defensive Sand Wall In Shooting Range Product Description: 1. Wire diameter: 4-5mm 2. Mesh size: 3x3 inches (7.62*7.62 cm) 3. Panel Size: 13 species 4. Application: used for any security protection and sudden attack 5. Geotextiles: Heavy Non...

Product Details

Highlight:

hot galvanized hesco containers

,

5m tall sand filled barriers

,

hot galvanized sand filled barriers

Mesh Hole: 3"x3" 76.2x76.2mm
Surface Treatment: Hot Dipped Galvanized
Stock: 500 Pcs
Application: Military Fortifications, Shooting Ranges, Flood Protection
Feature: Easily Assembled,Durable
Dimension: 1*1*5m,1.37*1*5m
Product Description

Standard Military Hot Galvanized Defensive Barriers,Hesco Defensive Sand Wall In Shooting Range





Product Description:



1. Wire diameter: 4-5mm

2. Mesh size: 3x3 inches (7.62*7.62 cm)

3. Panel Size: 13 species

4. Application: used for any security protection and sudden attack

5. Geotextiles: Heavy Non-woven Polypropylene

6. Color: gray, military green, sand, etc

7. Surface Treatment: Hot Dip Galvanizing, Galvanizing Wire

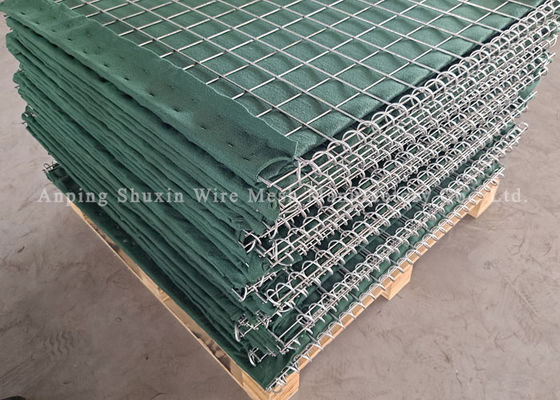

8. Packaging: Packaging with shrink film or pallet



Geotextile introduction:

Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for military defense and flood control.

Working principle:

It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.

Quality assurance:

Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012



HESCO Military Hot Galvanized Defensive Barriers Specification



Model Height Width Length Internal Cells
SX-1 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5=20 cells
SX-11 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells



HESCO Military Hot Galvanized Defensive Barriers Application

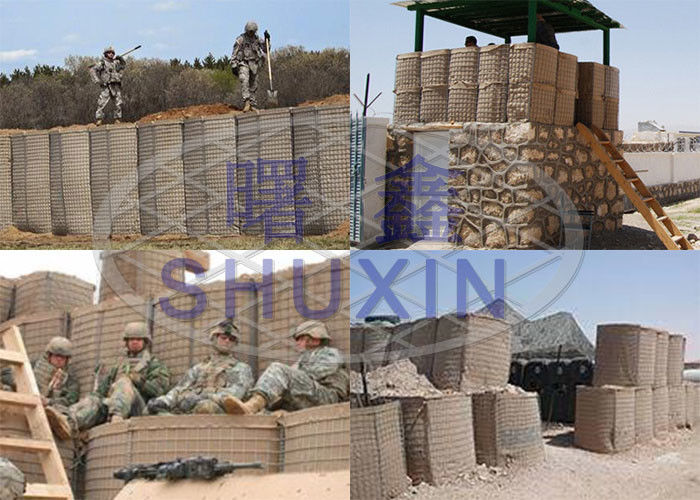

  • Military fortifications Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.
  • Shooting range Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.
  • Flood control Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.



HESCO Military Hot Galvanized Defensive Barriers Advantages



1. Removable It is assembled by panels and spring wires, and can be folded into a whole during loading and transportation.

2. Anticorrosion The raw material is hot-dip galvanized wire, which can be used for 10 years or more and is suitable for external protection.

3. Easy installation When you get it, open it in a spacious place and fill it with sand and mud. Even 2-3 people can finish it.

4. Rapid displacement When you want to use it in another place, just move it and it can be used many times.

5. Easy to repair If a part is damaged, throw it away and connect it with a new one.
