Geotextile Welded Military Fortification Fortress Sand Filled Barriers Wall

Basic Properties
Place of Origin: Hebei,CHINA
Brand Name: SHUXIN
Certification: ISO9001:2008
Model Number: SX-HESCO
Trading Properties
Minimum Order Quantity: 100 piece
Price: Negotiated
Standard Packaging: wrapped with shrink film or packed in pallet
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 piece per week
Product Summary
Geotextile Sand-Filled Bunker HESCO Defensive Barrier, Welded Military Fortification Fortress Barrier Wall Product Description: Wire diameter: 4mm, 5mm Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to ...

Product Details

Highlight:

geotextile hesco blast walls

,

fortification sand filled barriers

,

fortress sand filled barriers

Type: Welded Mesh With Geotextile
Material: Hot Dipped Galvanized Wire
Wire: 4.0mm 5.0mm
Mesh: 3'' X 3" ,7.62x7.62 Cm
Usage: Military Protection,Shooting Ranges,Flood Protection
Feature: Easily Assembled / Welding Point Deep Strong
Geotextile Color: Army Green, Sand , Gary , Beige, White Etc
Product Description

Geotextile Sand-Filled Bunker HESCO Defensive Barrier, Welded Military Fortification Fortress Barrier Wall





Product Description:

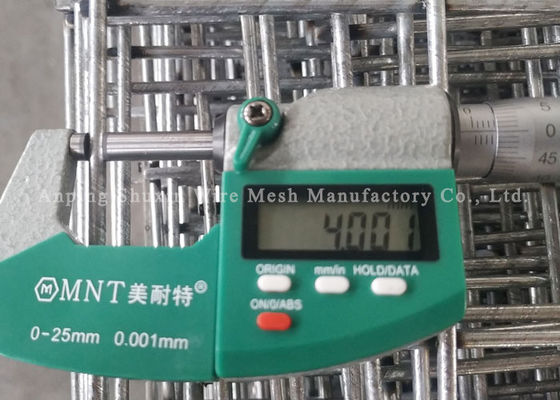

Wire diameter: 4mm, 5mm

Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm

Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement

Geotextile: in heavy duty non-woven polypropylene

Finish: hot dipped galvanized, galfan coated after welded

Packing: wrapped with shrink film or packed in pallet.



1.Geotextile Introduction

Hot dip galvanized gabion boxes with geotextile are also called fortresses, protective walls, sand cages, welded gabion boxes, etc. This is a multi-cellular system made of galvanized welded mesh and lined with non-woven fabric. The provided connection extension and connection unit may be used. It is easy to install and requires minimal manpower and commonly available equipment. After expansion, it is filled with sand and stones, and then welded with gabion barriers like defense walls or bunkers. It is widely used for military defense and flood control.

2. Working principle:

It is made of galvanized welded mesh plate, spring belt and other accessories, which can be filled with sand, soil, cement and stone, and can be used alone or connected by some defense barriers.

3. Quality assurance:

Our factory has been verified on site by SGS Group, the world's leading inspection company. Our products strictly follow ISO9001, SGS and CE certification. Our products comply with BS EN 10244-2:2009 and BS EN 1208-2:2012



Geotextile Sand-Filled Bunker HESCO Defensive Barrier
PRODUCT HEIGHT WIDTH LENGTH
MIL1 5442 R 54''(1.37M) 42''(1.06M) 32'9''(10M)
MIL2 2424 R 24'' (0.61M) 24''(0.61M) 4'(1.22M)
MIL3 3939 R 39''(1.00M) 39''(1.00M) 32'.9''(10M)
MIL4 3960 R 39''(1.00M) 60''(1.52M) 32'.9''(10M)
MIL5 2424 R 24''(0.61M) 24''(0.61M) 10'(3.05M)
MIL6 6624 R 66''(1.68M) 24''(0.61M) 10'(3.05M)
MIL7 8784 R 87''(2.21M) 84''(2.13M) 91'(27.74M)
MIL8 5448 R 54''(1.37M) 48''(1.22M) 32'.9''(10M)
MIL9 3930 R 39''(1.00M) 30''(0.76M) 30''(9.14M)
MIL10 8760 R 87''(2.21M) 60''(1.52M) 100'(32.50M)
MIL11 4812 R 48''(1.22M) 12''(0.30M) 4'(1.22M)
MIL12 8442 R 84''(2.13M) 42''(1.06M) 108'(33M)



Application

  • Perimeter security and defence walls
  • Equipment revetments
  • explosive and contraband search areas
  • Ammunition compounds
  • Personnel and material bunkers
  • Observation points
  • Defensive firing positions
  • Highway checkpoints
  • Border crossing checkpoints
  • Protection existing structures
  • High way traffic management
  • Flood control
  • Water courses
  • Emergency flood deployment
  • Erosion control
  • Retaining walls


1. Military fortifications Most armies use defense barriers to build military fortifications because they can be stacked on top of each other. You can change the width and height according to your requirements. More simple and flexible.

2. Shooting range Nowadays, many people use defense barriers to build shooting ranges because of its high defense strength and safety.

3. Flood control Defense barriers are becoming more and more popular and easy to assemble, and good permeability. Most countries near coastlines choose defense barriers as flood prevention walls. Even around the hotel, they erected protective walls.







Advantages :



Secure & reliable

Once filled with soil, sand or gravel, forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemy fire. For example:

Two feet thick barriers can be used to stop rifle bullets and shell fragments.

Four feet thick barriers can prevent most car bombs.

Five feet thick barriers is ideal for preventing penetration and explosion fragments from rocket propelled grenade.

Convenient usage

HESCO bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.

Labor saving design

Can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.

Quick & easy assembly

Provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our KNSCO do ten times the work.



Fetures:



Easy to handle and install

High strength and impact resistance

Long service life and normal use

Can be filled with sand, cement, stone, soil.



​Geotextile Welded Military Fortification Fortress Sand Filled Barriers Wall
