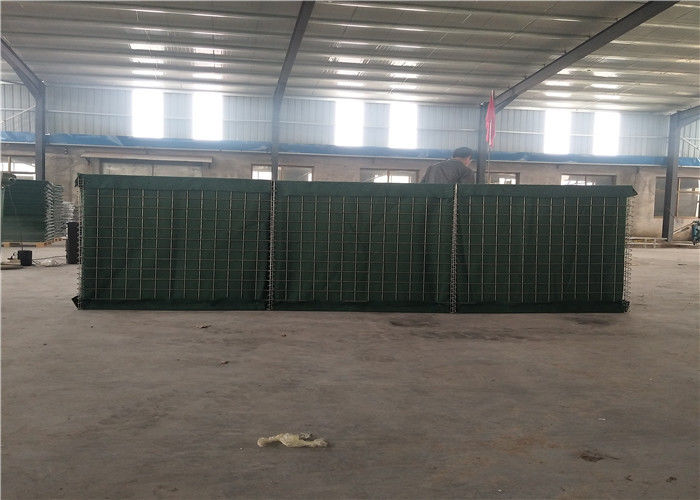

3mm Dia Mil 3 Sand Filled Barriers Hesco Blast Wall

Basic Properties
Place of Origin: CN
Brand Name: SHUXIN
Certification: ISO:9001
Model Number: SX-HB01
Trading Properties
Minimum Order Quantity: 10 pcs
Price: Negotiated
Standard Packaging: Plastic and then Pallet
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100 pcs per day
Product Summary
Military Hesco Barrier Fill Sand,Hesco Blast Wall Military Hesco Barrier Fill Sand,Hesco Blast Wall is also named as Welded bastion, Welded defense wall, Welded Barrier, Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non...

Product Details

Highlight:

mil 3 sand filled barriers

,

3mm dia sand filled barriers

,

mil 3 hesco blast walls

Product Name: Military Hesco Barrier Fill Sand,Hesco Blast Wall
Surface Treatment: Hot Dipped Galvanized
Specification: Mil1 To Mil 10
Color Of Geotextile: Sand, Gray, Brown, Miltary Green
Stock: 1000 Pcs
Package: Plastic And Then Pallet
Application: Miltaty Or Flood Control
Wire Diameter: 3.0-6.0mm
Product Description

Military Hesco Barrier Fill Sand,Hesco Blast Wall



 Military Hesco Barrier Fill Sand,Hesco Blast Wall is also named as Welded bastion, Welded defense wall, Welded Barrier, Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.

3mm Dia Mil 3 Sand Filled Barriers Hesco Blast Wall

3mm Dia Mil 3 Sand Filled Barriers Hesco Blast Wall

Material: Galvanized steel wire or Galfan/

zinc-5%aluminum wire

Service Life: 15-20 years

Price:19.8$-99.8$/set

Wire diameter: 3.0mm- 6.0mm

Aperture:50*50mm 75*75mm

76.2*76.2mm 80*80mm 100*100mm etc

Color of geotextile:Grey and Military

Green,Sand color etc

Gram Weight of geotextile:200g/m2

or 300g/m2

Finish:hot dipped galvanized,Galfan wire.

Welded method:welded after galvanized

or galvanized after welded

Packing:Wrapped with shrink film then

packed in wood pallet or iron pallet



Features



1. having a Galfan coated steel mesh framework

2. integrated cells to provide internal structural integrity.

3. exceptional strength and structural integrity

4. High tensile and anti-impact capability

5. making transportation efficient and rapid



operational principle



It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.



Quick Details



Unit Type

Height

(M)

Width

(M)

Length

(M)

Internal Cells
SX-01 1.37 1.08 10 9
SX-02 0.61 0.61 1.22 2
SX-03 1.0 1.0 10 10
SX-04 1.0 1.5 6 6
SX-05 0.61 0.61 3.05 5
SX-06 1.68 0.61 3.05 5
SX-07 2.21 2.13 8.25 4
SX-08 1.37 1.22 10 9
SX-09 1.0 0.76 6.84 9
SX-10 2.13 1.52 7.6 5









3mm Dia Mil 3 Sand Filled Barriers Hesco Blast Wall
