Product Details:
|
| Stock: | 1000 Pcs | Product Name: | Shuxin Welded Barrier |
|---|---|---|---|
| Surface Treatment: | Hot Dipped Galvanized | Specification: | Mil 1 |
| Color Of Geotextile: | Miltary Green | Package: | Plastic And Then Pallet |
| Application: | Miltaty Or Flood Control | Name: | Military Hesco Barrier Fill Sand Hesco Blast Wall Sand Filled Barriers |
| High Light: | 1.08m width defensive barrier,1.37m height defensive barrier,mil 1 defensive barrier |
||

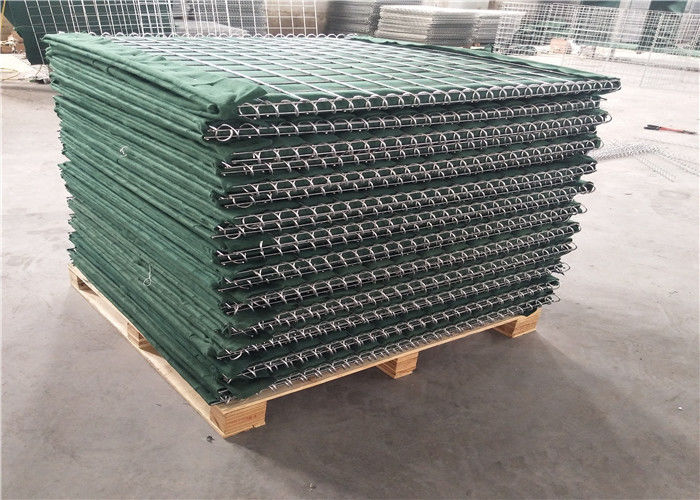

Military Hesco Barrier Fill Sand Hesco Blast wall Sand Filled Barriers
operational principle
It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand, earth, cement, stone, can be used in separate cell or some cells joint together.
Quick Details
| Unit Type |
Height (M) |
Width (M) |
Length (M) |
Internal Cells |
| SX-01 | 1.37 | 1.08 | 10 | 9 |
| SX-02 | 0.61 | 0.61 | 1.22 | 2 |
| SX-03 | 1.0 | 1.0 | 10 | 10 |
| SX-04 | 1.0 | 1.5 | 6 | 6 |
| SX-05 | 0.61 | 0.61 | 3.05 | 5 |
| SX-06 | 1.68 | 0.61 | 3.05 | 5 |
| SX-07 | 2.21 | 2.13 | 8.25 | 4 |
| SX-08 | 1.37 | 1.22 | 10 | 9 |
| SX-09 | 1.0 | 0.76 | 6.84 | 9 |
| SX-10 | 2.13 | 1.52 | 7.6 | 5 |
Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 75x75mm,50x50mm
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color:Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
|
|
Material: Galvanized steel wire or Galfan/ zinc-5%aluminum wire Service Life: 15-20 years Price:19.8$-99.8$/set Wire diameter: 3.0mm- 6.0mm Aperture:50*50mm 75*75mm 76.2*76.2mm 80*80mm 100*100mm etc Color of geotextile:Grey and Military Green,Sand color etc Gram Weight of geotextile:200g/m2 or 300g/m2 Finish:hot dipped galvanized,Galfan wire. Welded method:welded after galvanized or galvanized after welded Packing:Wrapped with shrink film then packed in wood pallet or iron pallet |
Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
