Product Details:
|
Product Name: | HESCO Weld Gabion Barrier Bastion | Surface Treatment: | Hot Dipped Galvanized |
---|---|---|---|
Company: | Shuxin Wire Mesh | Color Of Geotextile: | Miltary Green |
Stock: | 1000 Pcs | Package: | Plastic And Then Pallet |
Application: | River Flood Protection | Name: | Sand Filled Barriers Hesco Bastion Barrier System Green Geotextile For Force Protection |
Highlight: | 4MM hesco containers,green geotextile hesco containers,hesco containers for force protection |

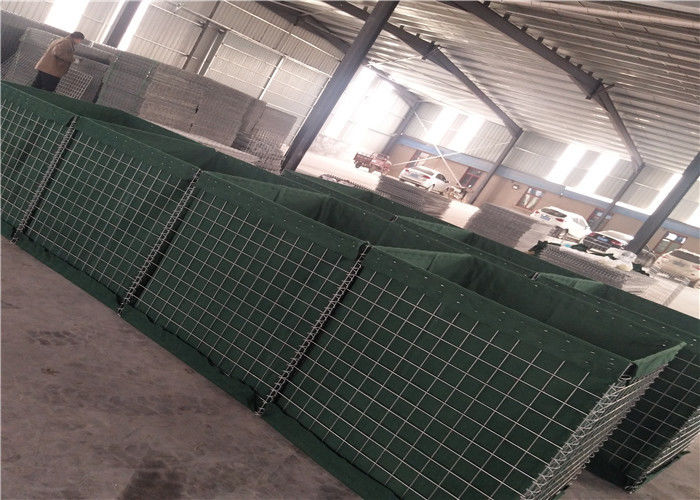

Sand Filled Barriers Hesco Bastion Barrier System Green Geotextile For Force Protection
Sand Filled Barriers Hesco Bastion Barrier System Green Geotextile For Force Protection Details
Unit Type |
Height (M) |
Width (M) |
Length (M) |
Internal Cells |
SX-01 | 1.37 | 1.08 | 10 | 9 |
SX-02 | 0.61 | 0.61 | 1.22 | 2 |
SX-03 | 1.0 | 1.0 | 10 | 10 |
SX-04 | 1.0 | 1.5 | 6 | 6 |
SX-05 | 0.61 | 0.61 | 3.05 | 5 |
SX-06 | 1.68 | 0.61 | 3.05 | 5 |
SX-07 | 2.21 | 2.13 | 8.25 | 4 |
SX-08 | 1.37 | 1.22 | 10 | 9 |
SX-09 | 1.0 | 0.76 | 6.84 | 9 |
SX-10 | 2.13 | 1.52 | 7.6 | 5 |
Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 75x75mm,50x50mm
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
|
Material: Galvanized steel wire or Galfan/ zinc-5%aluminum wire Service Life: 15-20 years Price:19.8$-99.8$/set Wire diameter: 3.0mm- 6.0mm Aperture:50*50mm 75*75mm 76.2*76.2mm 80*80mm 100*100mm etc Color of geotextile:Grey and Military Green,Sand color etc Gram Weight of geotextile:200g/m2 or 300g/m2 Finish:hot dipped galvanized,Galfan wire. Welded method:welded after galvanized or galvanized after welded Packing:Wrapped with shrink film then packed in wood pallet or iron pallet |
