Craft Welded es Stone Filled Gabions For Bridge Protection System

                         es For Stone Filled Gabions Used For Bridge Protection System​

 When requesting a quote, please specify:
size of units (length x width x height)
type of mesh
type of coating
EXAMPLE: No. 100 es 4x2x0.23 m - Mesh type 6x8 - Wire diam. 2.2 mm - Galvanized

Specification: galvanized, galfan, PVC coated wire
Opening: 6*8cm,8x10cm,10*12cm
Mesh wire: 2.2mm,2.7mm,3.0mm

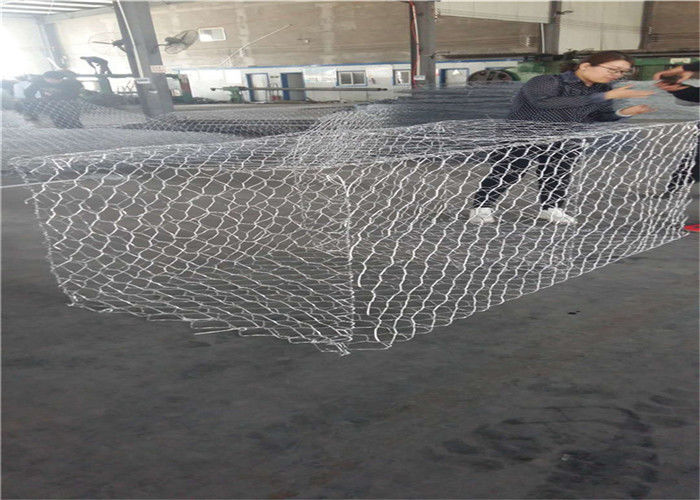

Woven Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.

Stone Filled Gabion Box Advantage:

Flexibility: Flexibility is an important benefit of any gabion structure. The double-twist hexagonal mesh construction permits it to tolerate differential settlement without fracture. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.
Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability. Generally, the wire mesh is needed for the first few years of the structure’s life; later the void between the stones is filled with soil, silt, and plant roots which act as a bonding agent for the stones.
Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy. This is evident on coast protection installations where gabion structures remain effective long after a massive rigid structure fails. Additionally, the double twisted hexagonal mesh won’t unravel if cut.

Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
• It requires little maintenance
• Its installations does not require skilled labor and stone fill is available on site or from nearby quarries,
• It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth.
• Gabions are porous, requiring no costly drainage provision
Ecology: Gabions is an environmentally sensitive solution to slope stabilization. It has already been mentioned that stone fill is done with natural stones making the gabions, naturally porous allowing interaction between the land and the water table and also persuades deposition of soil in the smaller voids between the stone fill during drainage that again promote vegetation growth.


Stone Filled Gabion Box Applications:

1. Control and guide rivers and floods.
2. Flood discharge dam and diversion dam.
3. Rock slope protection.
4. Soil protection.
5. As you want.

FAQ:

1. What is minimum order quantity?
Usually the minimum is 20 ft container for the price is reasonable for customers, but i f you really don"t need so much, it can be negotiable.

2. What is the lead time?
The lead time is within 20 days after we receive the deposit, if you need the product urgently, we will do our best to produce ASAP, and ship ASAP, to meet your requirements.
