Hot Dipped Galvanized Security Fencing Razor Barbed Wire Steel Wire Barbed Wire Coils

Basic Properties
Place of Origin: Hebei, CHINA
Brand Name: SHUXIN
Certification: ISO CE
Model Number: BTO-22, CBT-60, CBT-65
Trading Properties
Minimum Order Quantity: 100 pcs
Price: negotiated
Standard Packaging: plastic bags +wooden pallet
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 5000 pcs per week
Product Summary
Hot Dipped Galvanized Security Fencing Razor Barbed Wire Steel Wire Barbed Wire Coils Product Description Razor Barbed Wlre is also named concertina razor wire, razor fencing wire, razor blade wire . lt is a kind ofmodern security fencing materials with better protection and fencing strength made of ...

Product Details

Highlight:

barbed wire and razor wire

,

barbed wire razor

,

barbed wire razor wire

Product Name: Hot Dipped Galvanized Security Fencing Razor Barbed Wire Steel Wire Barbed Wire Coils
Type: Razor Concertina Barbed Wire
Surface Treatment: Hot Dipped Galvanized, Stainless Stell
Size: 45cm -100cm Coil Diameter
Razor Type: Cross Razor
Barb Length: 10mm-65mm
Barb Width: 11mm-33mm
Advantages: Easy To Clean,Long Service Used
Barb Spacing: 25mm-100mm
All Type: BTO-10,11, 18, 20, 22, CBT-60, CBT-65 Etc
Product Description

Hot Dipped Galvanized Security Fencing Razor Barbed Wire Steel Wire Barbed Wire Coils





Product Description

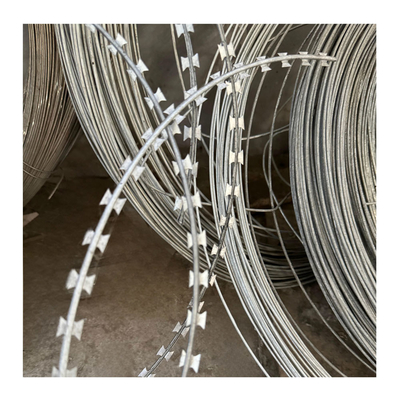

Razor Barbed Wlre is also named concertina razor wire, razor fencing wire, razor blade wire . lt is a kind ofmodern security fencing materials with better protection and fencing strength made of hot-dippedgalvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire hasthe features of secure fencing, easy installation, age resistance and other properties.

Categories:

Razor Barbed Wire is roughly divided into spiral, straight line, spiral cross type three forms.Blade thorn rope according to different installation methods can be divided into:

1. (snake belly) spiral blade thorn rope,
2. linear blade thorn rope,
3. flat blade thorn rope,
4. blade thorn rope welding net and so on.



Hot Dipped Galvanized Security Fencing Razor Barbed Wire Steel Wire Barbed Wire Coils



Applications:

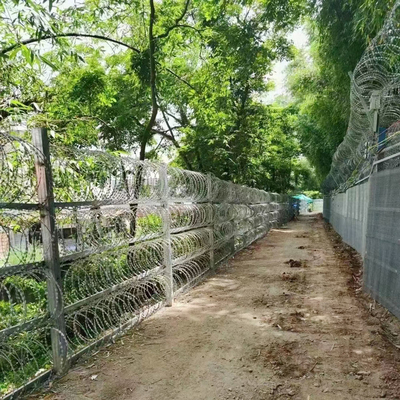

Razor Barbed Wire used in mainly serves in protecting of grass boundary, railway, highway and also widely used in military, jail, industry, agriculture, animal husbandry, dwelling house, plantation for fencing.



Specification:



Reference Number

Thickness

(mm)

Wire Dia

(mm)

Bard Length

(mm)

Bard Width

(mm)

Bard Distance

(mm)

BTO-10 0.5±0.05 2.5±0.05 10±1 13± 16±1
BTO-12 0.5±0.05 2.5±0.05 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.05 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.05 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5±0.05 28±1 15±1 53+1
BTO-30 0.5±0.05 2.5±0.05 30±1 21±1 54±1
CBT-60 0.5±0.05 2.5±0.05 60±1 32±1 100±1
CBT-65 0.5±0.05 2.5±0.05 65±1 21±1 100±2



Razor Barbed Wire Coil and Unit Loops



Outside Diameter No.of Loops Standard Length Per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type



Packing & Delivery:

1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.



Hot Dipped Galvanized Security Fencing Razor Barbed Wire Steel Wire Barbed Wire Coils

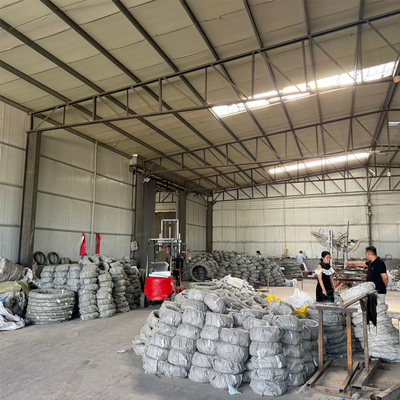

ANPING SHUXIN MANUFACTORY CO.,LTD,established in 2013.We are located in Anping county,Hebei province.Know as the hometown of Chinese wire mesh.
We are professional manufacturer and have professional technological.
Our mainly product: Chicken Cage, wire mesh basket, wire mesh container, defensive barrier, Gabion, razor wire, and barbed wire etc.
If you want to customize,please contact us.



Hot Dipped Galvanized Security Fencing Razor Barbed Wire Steel Wire Barbed Wire Coils
