Box Large 2.2mm Stone Filled Gabions For River Training

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: GABION
Trading Properties
Minimum Order Quantity: 100 pc
Price: Negotiated
Standard Packaging: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 pc per day
Product Summary
Different Types Gabion Basket Large Stone Filled Gabions For River Training Gabion refers to PVC coating on zinc coating wire fabric containers that comes in variable sizes with rocks filling to form a permanent structure. And the Green Gabion Mattress, also known as Gabion Mattress System by ...

Product Details

Highlight:

river training stone filled gabions

,

2.2mm stone filled gabions

,

river training gabion basket mesh

Material: Steel Wire
Surface: Zinc Coated

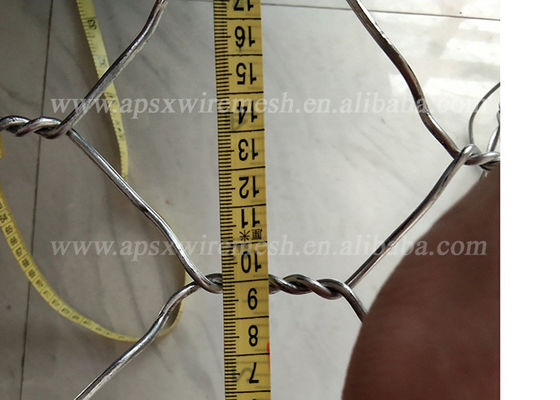

Aperture: 80x100mm

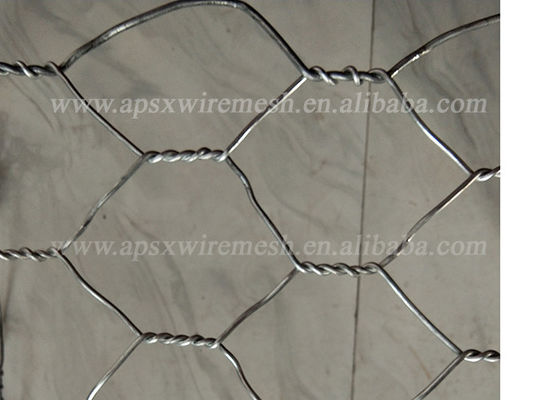

Hole Shape: Hexagonal
Surface Treatment: Galvanized
Warranty: ≥ 3 Years
Product Description

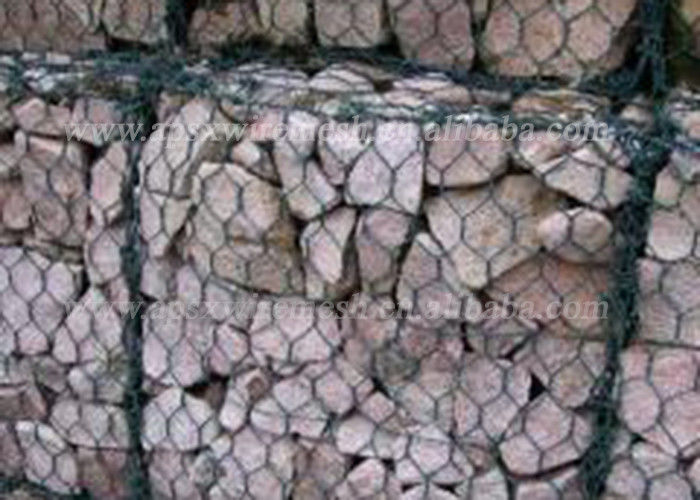

Different Types Gabion Basket Large Stone Filled Gabions For River Training




Gabion refers to PVC coating on zinc coating wire fabric containers that comes in variable sizes with rocks filling to form a permanent structure. And the Green Gabion Mattress, also known as Gabion Mattress System by Fibromat makes a great Earth Retention System caters for slopes erosion control, toe and river bank protection, maximizing permeability on the structure while providing reinforcement and grass establishment.



Gabion Mattresses serves as a retaining wall, providing various prevention and protection works such as landslide prevention, erosion and scour protection as well as various type of hydraulic and coastal protection for river, sea and channel protection. This Gabion Mattress System is made up of a specially designed composite in order to maximize its performance through three phases of vegetative process from vegetated to vegetation establishment up to vegetation maturation.



Products mm mm mm
wire diameter(galvanized/galfan coat) 2.2mm 2.7mm 3.0mm
wire diameter(PVC coat) 2.2/3.2mm 2.7/3.7mm 3.0/4.0mm
opening size 6*8cm 8*10cm 10*12cm
standard ASTM A975 EN10223 SANS675
gabion boxes size 1*1*1m 2*1*1m 2*1*0.5m 3*1*1m etc




Stone Filled Gabion Box Applications:


1. Control and guide rivers and floods.
2. Flood discharge dam and diversion dam.
3. Rock slope protection.
4. Soil protection.
5. As you want.


Stone Filled Gabion Box Advantage:


Flexibility: Flexibility is an important benefit of any gabion structure. The double-twist hexagonal mesh construction permits it to tolerate differential settlement without fracture. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.


Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability. Generally, the wire mesh is needed for the first few years of the structure’s life; later the void between the stones is filled with soil, silt, and plant roots which act as a bonding agent for the stones.


Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy. This is evident on coast protection installations where gabion structures remain effective long after a massive rigid structure fails. Additionally, the double twisted hexagonal mesh won’t unravel if cut.

Permeability: Gabion walls are previous to water and stabilize slopes by the combined action of draining
and retaining, precluding the development of hydrostatic pressure behind the gabion wall. Drainage is accomplished by gravity, as well as evaporation as the porous structure permits air circulation through it. As plant growth develops within the structure, the process of transpiration assists in removing moisture from the backfill – a much more efficient system than weep holes in standard masonry walls.
Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
• It requires little maintenance
• Its installations does not require skilled labor and stone fill is available on site or from nearby quarries,
• It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth.
• Gabions are porous, requiring no costly drainage provision
Ecology: Gabions is an environmentally sensitive solution to slope stabilization. It has already been mentioned that stone fill is done with natural stones making the gabions, naturally porous allowing interaction between the land and the water table and also persuades deposition of soil in the smaller voids between the stone fill during drainage that again promote vegetation growth.

Aesthetics: Gabions supporting vegetation has already been discussed; in some case the vegetation growth is so intense, making the gabion structure invisible, and pleasant to look at. Again if additional effort is given during construction, the gabion can create really pleasing structure with or without vegetation. Unlike other types of materials such a modular block walls the gabion stones do not discolor due to drainage.



Box Large 2.2mm Stone Filled Gabions For River Training
