Hot Dip Galvanized Erosion Control Gabion Wall Cages

Basic Properties
Place of Origin: CN
Brand Name: SHUXIN
Certification: ISO 9001
Model Number: SX-GM01
Trading Properties
Minimum Order Quantity: 1000 square meters
Price: Negotiated
Standard Packaging: Folded then in Pallet
Delivery Time: 8 working days after getting the depoist
Payment Terms: L/C, D/A, D/P, T/T, Western Union, ,Paypal
Supply Ability: 1000 square meter per week
Product Summary
Hot Dip Galvanized Erosion Control Gabion Wall Cages For Gabion Box River Wall Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low ...

Product Details

Highlight:

hot dip galvanized gabion wall cages

,

erosion control gabion wall cages

,

rust resistance gabion wall mesh

Material: Q195,Q235
Surface Treatment: Galfan Coated/hot Dip Galvanized /PVC
Advantages: Easy Operation,Corrosion Resistance
Cage Size: 1*1*1M, 1*1*2M,1*1*3M
Mesh Hole: 7*9cm,6*8cm,8*10cm,10*12cm
Ceritification: CE ,ISO
Product Description

Hot Dip Galvanized Erosion Control Gabion Wall Cages For Gabion Box River Wall

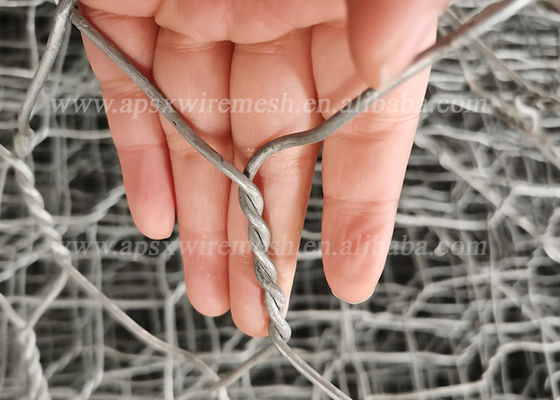

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.
Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.

Gabion Specification :
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion size : 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion application: can be widely used in flood controlling,retaining wall,river bank protection,slope protection

Quick View of Hex Gabion Wire Mesh Gabion Baskets Stone Boxes :

Product NameGabion Wire Mesh Box Cage
MaterialLow Carbon Steel Wire, Q195,Q235
ProcessWeave By Machine
UsageSlope support, foundation pit support
FeaturesHigh corrosion resistance, high strength, ductility
Tensile Strength38kg/m2


Specification Sheet of Hex Gabion Wire Mesh Gabion Baskets Stone Boxes :

Wire DiameterMesh HoleSize of Box Cage
2.0mm-4.0mm60 * 80 mm

2M * 1M * 1M
3M * 1M * 1M
4M * 1M * 1M
2M * 1M * 0.5M
4M * 1M * 0.5M

80 * 100 mm
80 * 120 mm
100 *120 mm
120 * 150mm
90 * 110 mm
Surface Treatment: Galvanized, Hot Dipped Galvanized,Galfan Coated, PVC Coated

PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion Wire Mesh, The using life can be 20 years, it is more suitable.

Gabion basket application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area

Advantages:

  • Economy, Just put the stone into the cage is okay to use.
  • It is simple to Operation, No need special skills.
  • Strong ability to resist the effects of natural damage, corrosion and weather.
  • It will not collapse with a wide range of deformation
  • It is good to Growing for Plant between the gap of Stone,together with the Environmental.
  • Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches
  • It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
  • Corrosion resistance: galvanized materials are not afraid of sea water.

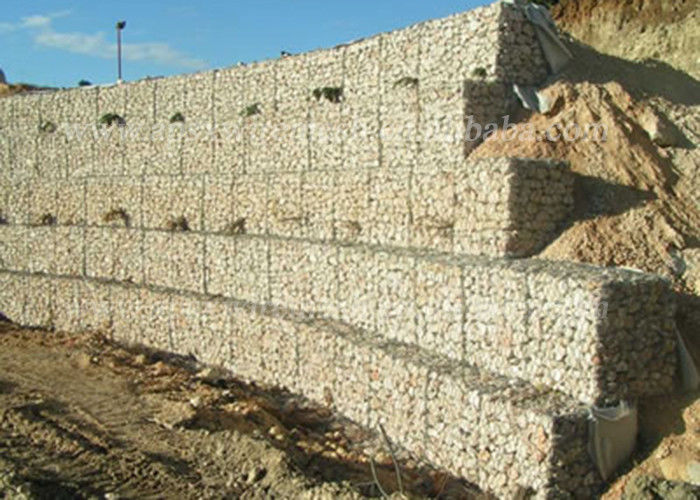

After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.

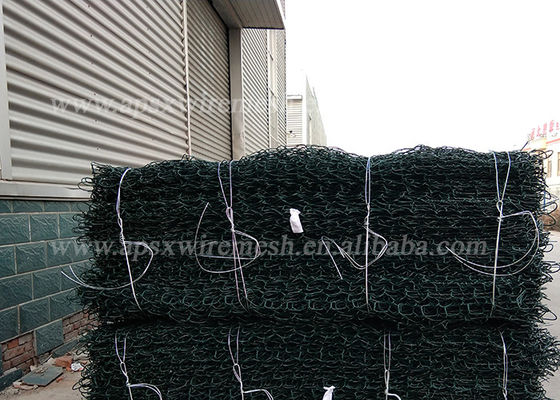

Package Type:
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.According to customer's request
