Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection

Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection
Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection
Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection

Large Image :  Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection

Product Details:
Place of Origin: CN
Brand Name: SHUXIN
Certification: ISO 9001
Model Number: SX-GM01
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meters
Price: Negotiated
Packaging Details: Folded then in Pallet
Delivery Time: 8 working days after getting the depoist
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 square meter per week

Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection

Description
Material: Q195,Q235 Surface Treatment: Galfan Coated/hot Dip Galvanized /PVC
Advantages: Easy Operation,Corrosion Resistance Cage Size: 1*1*1M, 1*1*2M,1*1*3M
Mesh Hole: 7*9cm,6*8cm,8*10cm,10*12cm Ceritification: CE ,ISO
High Light:

easy collapsible hexagonal gabion basket

,

soil protection hexagonal gabion basket

,

watr protection hexagonal gabion

Easy Collapsible PVC Coated Hexagonal Gabion Basket For Water And Soil Protection

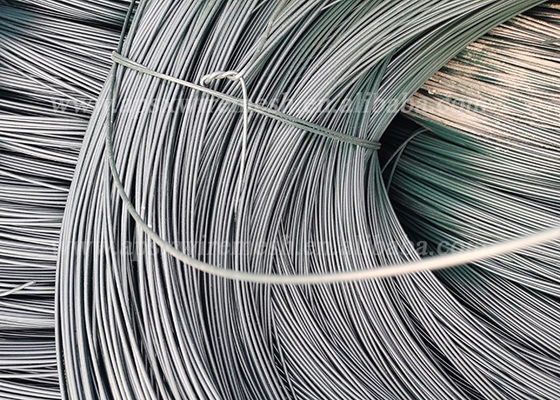

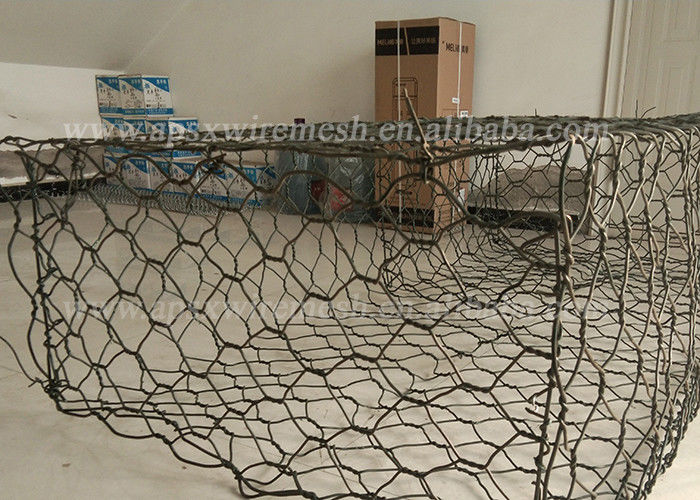

Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.
Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.

Gabion Specification :
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion size : 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.

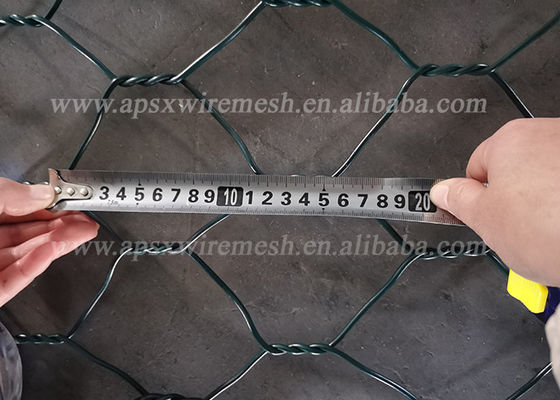

Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion application: can be widely used in flood controlling,retaining wall,river bank protection,slope protection


Specification of Hex Gabion Wire Mesh Gabion Baskets Stone Boxes :



Gabion box

(mesh size):

80*100mm

100*120mm

Mesh Wire diameter 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire diameter 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g,≥220g/m2

Gabion mattress

(mesh size):

60*80mm

Mesh wire diameter. 2.2mm zinc coating:60g, ≥220g/m2
Edge wire diameter. 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire diameter. 2.2mm zinc coating:60g, ≥220g/m2



special sizes Gabion

are available



Mesh wire diameter 2.0~4.0mm

superior quality,competitive price and

considerate service

Edge wire diameter 2.7~4.0mm
Tie wire diameter 2.0~2.2mm


Economy, Just put the stone into the cage is okay to use.PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion Wire Mesh, The using life can be 20 years, it is more suitable.

Gabion basket application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area

Advantages:

(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;

(2) the construction is simple and does not need special technology;

(3) Strong ability to resist natural damage, corrosion and adverse weather effects;

(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.

(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;

(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.

(7) Heavy hex net is made of high-quality low-carbon steel wire with galvanized large wire number. The tensile strength of the steel wire is not less than 38kg/m2, and the diameter of the steel wire can reach 2.0 mm-3.2 mm. The surface of the steel wire is usually protected by hot galvanizing. The thickness of the galvanized protective layer can be made according to the requirements of customers, and the maximum amount of galvanizing can reach 300g/m2.



After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.

Package Type:
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.According to customer's request
Easy Collapsible Pvc Coated Hexagonal Gabion Basket For Water And Soil Protection 0
