Product Details:
|
| Material: | Low-carbon Steel Iron Wire Mesh | Surface: | Galvanized/PVC Coated |
|---|---|---|---|
| Aperture: | 60*80mm,80*100mm,100*120mm | Hole Shape: | Hexagonal |
| Wire Diameter: | 2.0-4.0mm | Basket Size: | 1*1*1m,2*1*1m,3*1*1m |
| High Light: | three twisted weave stone filled gabions,3.4mm stone filled gabions,3.4mm stone filled wire cages |
||
Three-Twisted Weave Galvanized Hexagonal Wire Mesh Stone Filled Gabion Basket Box Supplier

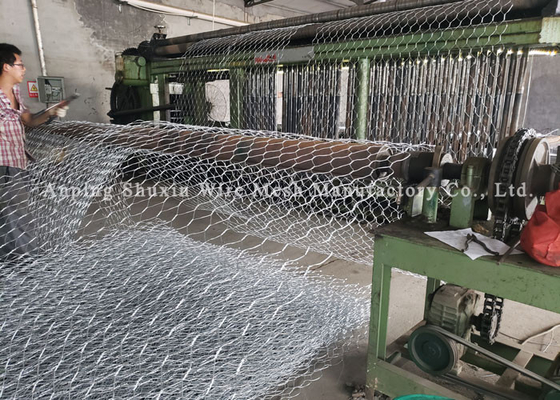

Weave Galvanized Hexagonal Wire Mesh Stone Filled Gabions Basket are boxes which are engineered from triple / quintuple twisted hexagonal woven wire mesh. It is usable for the control of rivers and floods, flood discharge dam and diversion dam, and rock slope protection. The management and production system is certified with ISO9001.
1. Materials: hot dipped galvanized wire and PVC coated galvanized wire
2. Mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
3. Selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm

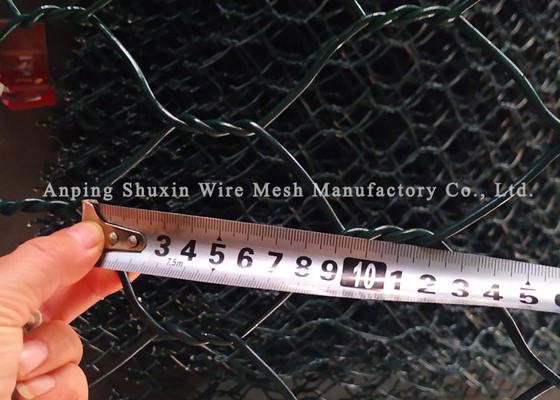

4. Mesh hole: 6*8cm,8*10cm,10*12cm,12*15cm
5. Tie wire/lacing wire: 2.2mm, 3%,5%,8% of weight
6. Zinc coated rate: 220-290g/m2
7. Size: 2x1x1m,2x1x0.5m,6x2x0.3m,or as your request
Woven Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.
| Products | mm | mm | mm |
| wire diameter(galvanized/galfan coat) | 2.2mm | 2.7mm | 3.0mm |
| wire diameter(PVC coat) | 2.2/3.2mm | 2.7/3.7mm | 3.0/4.0mm |
| opening size | 6*8cm | 8*10cm | 10*12cm |
| standard | ASTM A975 | EN10223 | SANS675 |
| gabion boxes size | 1*1*1m | 2*1*1m | 2*1*0.5m 3*1*1m etc |
Stone Filled Gabion Box Applications:
●Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
●Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.

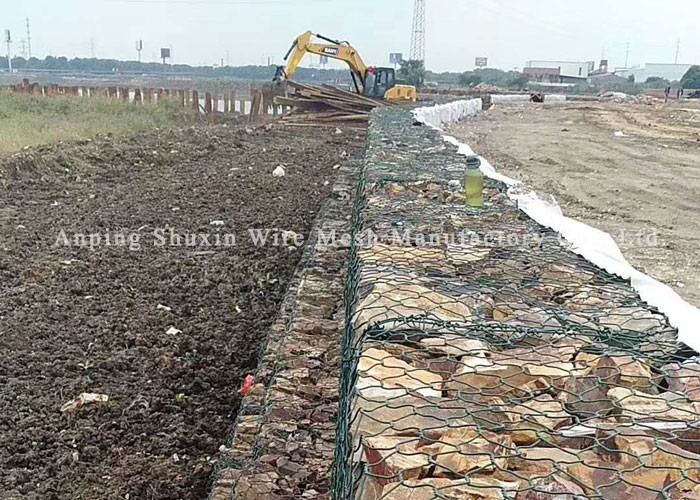

●Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.
Retaining wall
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Stone Filled Gabion Box Advantage:
1. The flexible structure can adapt to the changes of the slope without being destroyed, and has better safety and stability than the rigid structure;
2. Strong anti-scouring ability, can withstand the maximum water flow speed up to 6m/s;
3. The structure is inherently water-permeable, and has strong tolerance to the natural and filtering effects of groundwater. Suspended matter and silt in the water can be deposited in the rockfill, which is beneficial to the growth of natural plants. Restore the original ecological environment.
