Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole

Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole
Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole
Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole

Large Image :  Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole

Product Details:
Place of Origin: CN
Brand Name: SHUXIN
Certification: ISO 9001
Model Number: SX-GM01
Payment & Shipping Terms:
Minimum Order Quantity: 1000 square meters
Price: Negotiated
Packaging Details: Folded then in Pallet
Delivery Time: 8 working days after getting the depoist
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000 square meter per week

Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole

Description
Material: Q195,Q235 Surface Treatment: Galfan Coated/hot Dip Galvanized /PVC
Application: Retaining Wall For Protection Advantages: Easy Operation,Corrosion Resistance
Cage Size: 1*1*1M, 1*1*2M,1*1*3M Mesh Hole: 7*9cm,6*8cm,8*10cm,10*12cm
Package: Wooden Pallets Ceritification: CE ,ISO
High Light:

galfan coated retaining wall gabion baskets

,

7x9cm hole retaining wall gabion baskets

,

galfan coated gabion wall cages

Iron Steel Wire Gabion Wall Cages Erosion Control River

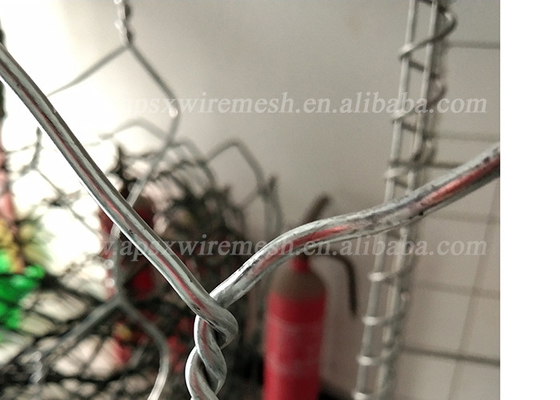

Hex Gabion Wire Mesh Gabion Baskets Stone Boxes is Woven by Machine used Low carbon Steel Wire, which is High corrosion resistance, high strength,and ductile. This kind of Gabion Wire Mesh also can make into Cage called Gabion Mesh Box Cage.According to ASTM and EN Standard, The Wire Diameter can be 2.0mm-4.0mm, The T/S not less than 38 kg/M2. The Zinc Coating is Higher than 245 g/M2. The Edge Wire Diameter is thicker than Wire Mesh Diameter, The Length of Twist part is not less than 50mm, to protect Zinc Coating or PVC Coating.





Gabion mesh/ gabion box material:

(1) Galvanized steel wire: diameter 2.0MM-4.0MM, tensile strength >380Mpa, zinc :240g / m2.

(2) Zinc 5% Aluminum - wire diameter 1.0MM-3.0MM, tensile strength >380Mpa.

(3) coated galvanized steel wire: low carbon steel wire PVC coated.

(4) Woven Mesh Opening: Hexagonal Wire Pattern 60*80mm, 80*100mm,100*120mm,

(5) Size: 1*1*1m,2*1*1m, 4*1*1x2m, other size can be produced as requested

Specification Sheet of Hex Gabion Wire Mesh Gabion Baskets Stone Boxes :

Wire Diameter Mesh Hole Size of Box Cage
2.0mm-4.0mm 60 * 80 mm

2M * 1M * 1M
3M * 1M * 1M
4M * 1M * 1M
2M * 1M * 0.5M
4M * 1M * 0.5M

80 * 100 mm
80 * 120 mm
100 *120 mm
120 * 150mm
90 * 110 mm
Surface Treatment: Galvanized, Hot Dipped Galvanized,Galfan Coated, PVC Coated

PS: People often use Hot Dipped Galvanized, Or Galfan Coated Gabion Wire Mesh, The using life can be 20 years, it is more suitable.



Production Process of Hex Gabion Wire Mesh Gabion Baskets Stone Boxes :
Raw Materials (Wire Rod) - Cold drawn / Galvanized / PVC Coated - Machine Weaving - Artificial Shear, Assembly - Product Inspection - Packaging and Transport

Gabion basket application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area

Advantages:

  • Economy, Just put the stone into the cage is okay to use.
  • It is simple to Operation, No need special skills.
  • Strong ability to resist the effects of natural damage, corrosion and weather.
  • It will not collapse with a wide range of deformation
  • It is good to Growing for Plant between the gap of Stone,together with the Environmental.
  • Has good permeability to prevent damage caused by hydrostatic forces. Conducive to the stability of the slopes and shore beaches

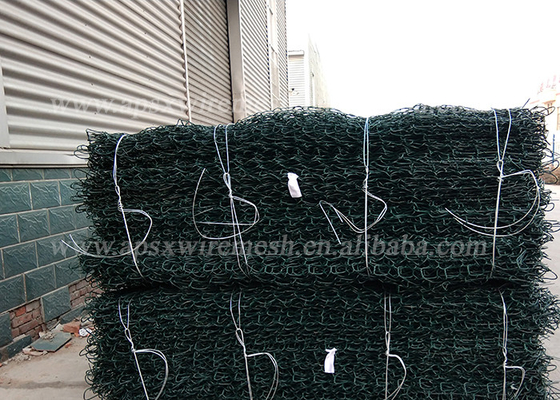

  • It is foldable to save space and shipping cost, Assemble easily on the Construction Site.
  • Corrosion resistance: galvanized materials are not afraid of sea water.

The construction combination and stone filling steps can be summarized as follows:
The construction combination and stone filling steps can be summarized as follows: Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire. Rock fill in structure Cover the structure and fasten it with tie wire.

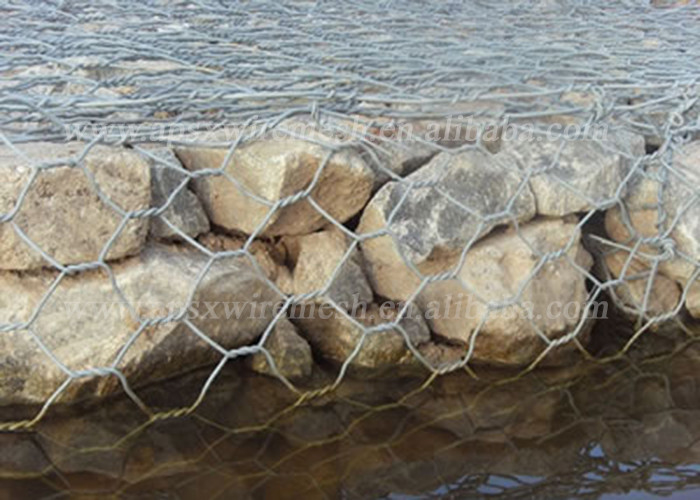

After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.

Stone Cage Galfan Coated Retaining Wall Gabion Baskets 7x9cm Mesh Hole 0
