3.7mm Double Twisted Stone Filled Cages Hexagon Heavily Gabion Preventing Rock Breaking

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE, SGS
Model Number: SX-1
Trading Properties
Minimum Order Quantity: 1000 square meter
Standard Packaging: Packing with tape
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 square meter per month
Product Summary
Double Twisted Hexagon Heavily Gabion Preventing Of Rock Breaking Product Description The double twist of the woven wire mesh provides integrity, strength and continuity to the structure by adding a non-raveling effect that prevents any accidental damage from spreading. Lacing wire is used to ...

Product Details

Highlight:

double twisted stone filled cages

,

preventing rock breaking stone filled cages

,

3.7mm stone filled gabions

Type: HDG Galvanized
Wire Diameter: 2.7, 3.0, 3.7 Mm
Hole Size: 6x8cm, 8*10cm ,10x12cm
Surface Treatment: PVC Coated, Hot Dipped Galvanized
Color: Silver,gray,green,black
Application: Construction Wire Mesh,Cages,Protecting Mesh
Package: Wooden Pallet
Certification: CE,ISO
Product Description

Double Twisted Hexagon Heavily Gabion Preventing Of Rock Breaking





Product Description



The double twist of the woven wire mesh provides integrity, strength and continuity to the structure by adding a non-raveling effect that prevents any accidental damage from spreading. Lacing wire is used to assemble and interconnect empty units and to close and secure stone-filled units. Once assembled, the baskets are filled on site with durable stone.



The gabion cage has unique ecological function. A little soil is sprinkled on the surface of the protective body, and greening can be carried out. Because the stones are filled with gaps, the gaps contain soil, which is beneficial to the development of plant roots and creates a good ecological environment. Even if the soil is not sprinkled, with the passage of time, the space between the stones will silence the soil, thus growing some herbaceous plants and forming a natural ecological environment. After the production of gabion net cage is completed, in order to save volume, compression packaging can be bundled.



Specification



Hexagonal Wire Mesh Gabion Basket, Hot Dipped Galvanized Gabion Box
 1. Wire diameter  2.0-4.0mm
 2. Mesh opening  60x80 mm, 80x100 mm, 100x120mm, 120x150mm
 3. Gabion box size  2x1x0.5m, 2x1x1m, 3x1x1m, 4x1x1m ect.

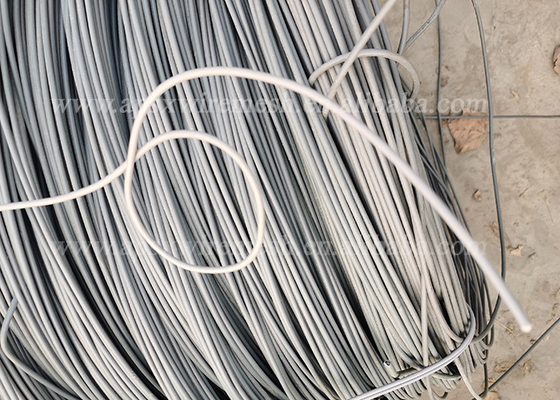

 4. Material  Hdg steel wire, Galfan Steel Wire, PVC coated steel wire ect.
 5. Weaving  Straight twist,reverse twist,straight and reverse twist(3 twist,5 twist etc.)



1) Gabion wire mesh is used for slope and foundation pit support ,prevention or rock breaking ,slope planting ,water and soil protection,

high mesh fence,protection of dam and seawall against erosion ,etc.

2) Specification of gabion wire mesh

3) Mesh Size;:60x80,80x100,100x120,120x150

4) Diameter:2.0mm-4.5mm

5) Length x width x height :2mx1mx1m,3mx1mx1m,6mx1mx1m.,6mx1mx0.3m


Feature

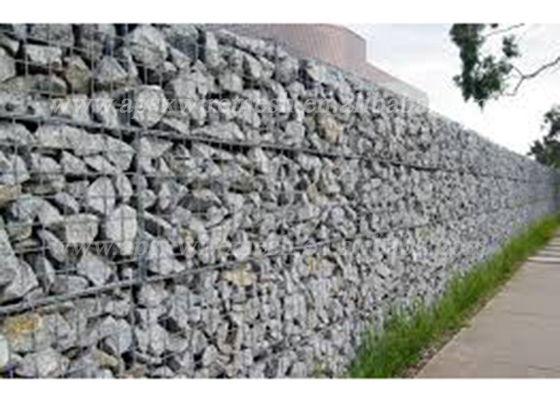

1. High versatility: Gabion Wall Cages can be stacked to create a retaining wall with vertical, sloping or stepped front face based on the requirements of your project. Meanwhile, woven gabion baskets can be mounted combining various plants for enhanced strength and more pleasing appearance.



2. Long lifespan: All of our Gabion Wall Cages are heavily galvanized, Zn-Al alloy plated with optional PVC coating to resistant against corrosion and maximum their lifespan. Normally, our galfan gabion and PVC gabion can last up to 120 years based on different exposure conditions.



3. Robust and flexible structure: woven gabion baskets have robust and flexible structure which enable them to prevent unraveling effectively and withstand forced from water and earth masses.



4. Good ductility, no structural joints.



Advantages

(1) It is convenient to use, and can be used only by tiling the net surface into wall surfaces and building cement;

(2) the construction is simple and does not need special technology;

(3) Strong ability to resist natural damage, corrosion and adverse weather effects;

(4) can withstand large-scale deformation without collapsing. It plays a role in fixing heat preservation and heat insulation.

(5) The excellent technological foundation ensures the uniformity of coating thickness and has stronger corrosion resistance;

(6) Save transportation costs. It can be shrunk into small rolls and wrapped in moisture-proof paper, occupying little space.



Application

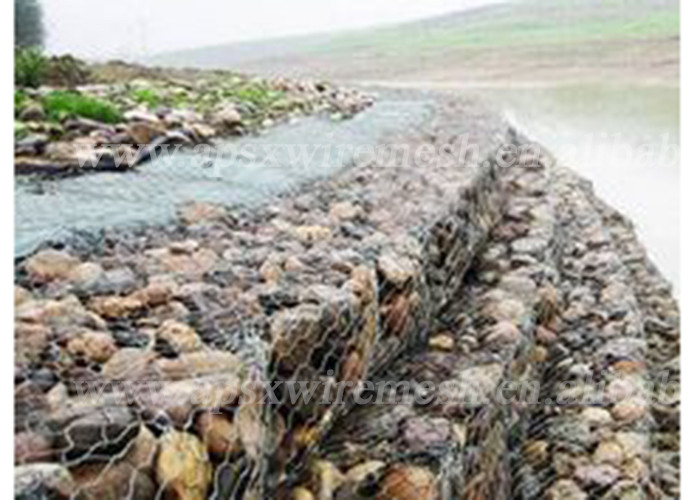

After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.



3.7mm Double Twisted Stone Filled Cages Hexagon Heavily Gabion Preventing Rock Breaking
