Mil 3 Sand Filled Barriers Protection Against Bomb 8cm X 8cm Mesh

Mil 3 Sand Filled Barriers Protection Against Bomb 8cm X 8cm Mesh
Mil 3 Sand Filled Barriers Protection Against Bomb 8cm X 8cm Mesh Mil 3 Sand Filled Barriers Protection Against Bomb 8cm X 8cm Mesh Mil 3 Sand Filled Barriers Protection Against Bomb 8cm X 8cm Mesh

Large Image :  Mil 3 Sand Filled Barriers Protection Against Bomb 8cm X 8cm Mesh

Product Details:
Place of Origin: Hebei,CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: Mil-3
Payment & Shipping Terms:
Minimum Order Quantity: 100 unit
Price: Negotiated
Packaging Details: pallet then plastic film outside
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 units per week

Mil 3 Sand Filled Barriers Protection Against Bomb 8cm X 8cm Mesh

Mesh Size: 3"x 3" Or 8cm X 8cm Internal Cells: 5+5=10 Cells
Geotextile Fabric: 300g/㎡ Geotextile Color: White, Beige Or Military Green
Application: Military Defensive Barrier, Protection Against Bomb, Etc. Accessories: Spring, Joint Pin, Geotextile
High Light:

mil 3 sand filled barriers


protection against bomb sand filled barriers


8cm x 8cm mesh sand filled barricades

Standard Military Mil-3 Folding Defensive Sand Filled Barriers Wall For Protection Against Bomb​



Military Mil-3 Folding Defensive Sand Filled Barrier is a multi-cellular barrier system lined with heavy-duty, non-woven polypropylene geotextile and manufactured from welded Zinc-Aluminium coated steel mesh.Known as a Military Gabion Barrier Bastion Sand Wall , it consists of collapsible wire mesh frames, lined with heavy duty canvas or other material. The boxes are then filled with dirt or sand , preferably with a front-end loader , to make a barrier resistant to small arms fire and shrapnel.

Military Mil-3 Folding Defensive Sand Filled Barrier come in many sizes. Most fences can also be stacked and packed into a compact set. Whether used as protective barriers or to define borders, security barriers and T-walls are used to protect equipment, facilities, vehicles and personnel in military, peacekeeping, humanitarian and civil operations.

Sand Filled Barriers Detail:

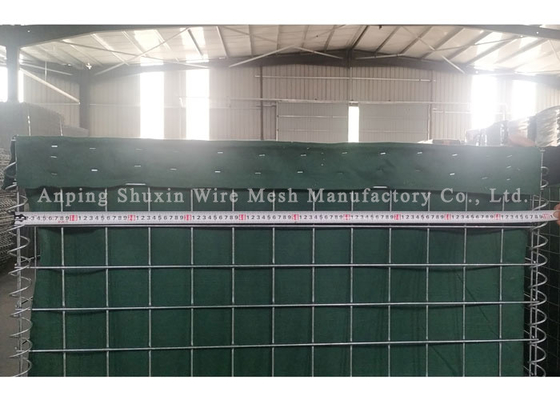

1. Wire diameter: 4-5mm

2. Mesh size: 3" x3" (75x75mm,80x80mm)

3. Panel size: 12 type size for any security protection,suddenly burst attacks

4. Geotextile: in heavy duty non-woven polypropylene;

5. Color: Grey and Military Green,Sand color etc.

6. Finish: hot dipped galvanized, Galfan wire.

7. Packing: wrapped with shrink film or packed in pallet


                                       Sand Filled Barriers Specification


Model Height Width Length Internal Cells
SX-1(Mil 1) 54”(1.37m) 42”(1.06m) 32’9”(10m) 5+4=9 cells
SX-2(Mil 2) 24”(0.61m) 24”(0.61m) 4’(1.22m) 2 cells
SX-3(Mil 3) 39”(1.0m) 39”(1.0m) 32’9”(10m) 5+5=10 cells
SX-4(Mil 4) 39”(1.0m) 60”(1.52m) 32’9”(10m) 5+5=10 cells
SX-5(Mil 5) 24”(0.61m) 24”(0.61m) 10’(3.05m) 5 cells
SX-6(Mil 6) 66”(1.68m) 24”(0.61m) 10’(3.05m) 5 cells
SX-7(Mil 7) 87”(2.21m) 84”(2.13m) 91’(27.74m) 5+4+4=13 cells
SX-8(Mil 8) 54”(1.37m) 48”(1.22m) 32’9”(10m) 5+4=9 cells
SX-9(Mil 9) 39”(1.0m) 30”(0.76m) 30’(9.14m) 6+6=12 cells
SX-10(Mil 10) 87”(2.21m) 60”(1.52m) 100’(30.5m) 5+5+5+5+5=20 cells
SX-11(Mil 11) 48”(1.22m) 12”(0.30m) 4’(1.22m) 2 cells
SX-12(Mil 12) 84”(2.13m) 42”(1.06m) 108’(33m) 5+5+5+5+5+5=30 cells
SX-19(Mil 19) 108”(2.74m) 42”(1.06m) 10’5”(3.18m) 6 cells


Sand Filled Barriers Application


1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration


2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.


3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.


4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.


Sand Filled Barriers Advantages


Secure & reliable

Once filled with soil, sand or gravel, forms a solid and strong barrier with exceptional strength and structural integrity to protect personnel and equipment from enemy fire. For example:

Two feet thick barriers can be used to stop rifle bullets and shell fragments.

Four feet thick barriers can prevent most car bombs.

Five feet thick barriers is ideal for preventing penetration and explosion fragments from rocket propelled grenade.

Convenient usage

HESCO bastion barrier can be used in separate cell or some cells joined together by joint pins to suit different needs of your projects. Almost any locally filling material can be used such as soil, sand, gravel, crushed rock and various other granular materials.

Labor saving design

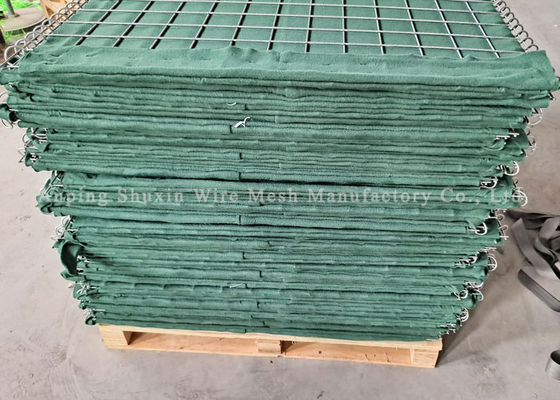

Can be collapsed and stacked on pallets for easy package, handling and transport, so that it efficiently saves labor cost.

Quick & easy assembly

Provides the easiest deploy methods - just unfold it and fill it using minimal manpower or commonly available equipment. Previously, sandbag barrier is considered a slow undertaking as a person can only fill about 20 sandbags per hour. Yet our KNSCO do ten times the work.


Our services

Selected high-quality materials and processes follow strict international standards.

A team of technical experts who produce high-quality products. Products that have been certified or inspected for the third time can be provided as required.

Analyze or suggest the best transportation plan to save costs. Feedback or reply to you in a timely manner through excellent customer service.

Provide OEM services

One-stop sales team delivers goods quickly

Our promise: Professionalism, Efficiency, Faithful


Mil 3 Sand Filled Barriers Protection Against Bomb 8cm X 8cm Mesh 0
