3.0mm Wire Mesh Baskets Retaining Walls Box Stone Filled For Roads And Bridges

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: GABION
Trading Properties
Minimum Order Quantity: 100 pc
Price: Negotiated
Standard Packaging: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 pc per day
Product Summary
3.0mm Gabion Basket Retaining Wall Box Stone Filled For Roads And Bridges Gabion basket After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil ...

Product Details

Highlight:

3.0mm wire mesh baskets retaining walls

,

bridges wire mesh baskets retaining walls

,

3.0mm gabion box retaining wall

Name: Gabion Basket Retaining Wall
Aperture: 80*100mm
Wire Size: 2.7 Mm /3.4/2.2 Mm
Surface Treatment: Green Pvc Coated
Mesh Shape: Weave Hexagonal
Package: Wooden Pallet
Gabion Sizes: 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m
Gabion Basket Application: Can Be Widely Used In Flood Controling,retaining Wall,river Bank Protection,slope Protection Etc.
Mesh: Hexagonal Shape
Wire Gauge: 2.0mm,3.0mm.3.5mm,3.8mm,4.0mm
Product Description

 3.0mm Gabion Basket Retaining Wall Box Stone Filled For Roads And Bridges

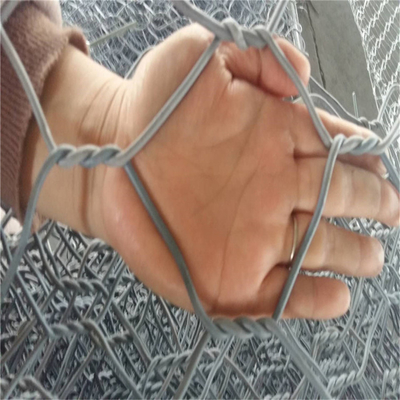

Gabion basket

After being made into a box-shaped container, the net cage is filled with riprap and the like, which can be used for protecting and supporting seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects, and is a good material for flood control and flood fighting.hydraulic and coastal protection for river, sea and channel protection



parameter:

Name Gabion Basket Retaining Wall
Aperture 80*100mm
Wire size 2.7 mm /3.4/2.2 mm
Sureface treatment green pvc coated
Mesh Shape weave hexagonal
Package Wooden Pallet
Gabion size 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m
Gabion basket application can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.
Mesh hexagonal shape
Wire Gauge 2.0mm,3.0mm.3.5mm,3.8mm,4.0mm








 Gabion Basket Specification
Length*Width*Height 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m or Customized
Mesh Size 60*80; 80*100; 100*120 as standard, or customized
Wire Diameter 2.00mm to 4.0m or customized
Surface Finish Electric Galvanized
Hot Dipped Galvanized
Galfan Coated
PVC Coated
Weaving Double Twist
PVC Coated Gabion Box Specification
Opening
(mm)
Wire Diameter(Metal Wire) (mm) Wire Diameter (PVC Coate)/ Inner/Outside(mm)
60X80 φ2.0-2.8 φ2.0/3.0-2.5/3.5
80X100 φ2.0-3.2 φ2.0/3.0-2.8/3.8
80X120 φ2.0-3.2 φ2.0/3.0-2.8/3.8
100X120 φ2.0-3.4 φ2.0/3.0-2.8/3.8
100X150 φ2.0-3.4 φ2.0/3.0-2.8/3.8
120X150 φ2.0-4.0 φ2.0/3.0-3.0/4.0





3.0mm Wire Mesh Baskets Retaining Walls Box Stone Filled For Roads And Bridges

The packing:

woven bags of the above and bottom,high quality package or as customers requested In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. according to customers requirement.

The Shipping:

Production time :15-20 days after received your payments Transportation way : by see or by air Port: XinGang TianJin or as your order



3.0mm Wire Mesh Baskets Retaining Walls Box Stone Filled For Roads And Bridges3.0mm Wire Mesh Baskets Retaining Walls Box Stone Filled For Roads And Bridges3.0mm Wire Mesh Baskets Retaining Walls Box Stone Filled For Roads And Bridges
