Heavy Duty 3.0 Mm Galfan Mesh Gabion Baskets 2m X 1m X 1m Wire For Retaining Walls

Basic Properties
Place of Origin: Hebei
Brand Name: SHUXIN
Certification: ISO,CE,SGS,BV
Model Number: SX-211
Trading Properties
Minimum Order Quantity: 100 PCS
Price: Negotiated
Standard Packaging: Bundle
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 1000 PCS per week
Product Summary
Heavy Duty 3.0 mm Galfan 2m x 1m x 1m Wire Gabion Basket for Retaining Walls This kind of gabion basket with extraordinary flexibility and can be applied to any terrain, such as: river bank, sea bank, under bridge, underwater, land and so on. easily installation make sure you finish the project in ...

Product Details

Highlight:

galfan 3mm gabion baskets

,

2m x 1m x 1m mesh gabion baskets

,

retaining walls mesh gabion baskets

Features: Easy Installation, Suitable For Any Terrain
Name: Wire Mesh Gabion Box
Material: Galvanized Wire, PVC Wire, Galfan Wire
Weave: Double Twist, Trible Twist
Mesh Wire: From 2.4mm To 3.4mm
Selvage Wire: From 3.0mm To 3.9mm
Biding Wire: Common Use 2.2mm
Mesh Hole: 60*80mm, 80*100mm, Customized
Gabion Size: 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 2*1*0.5m

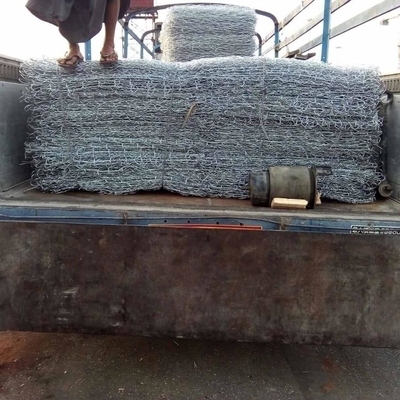

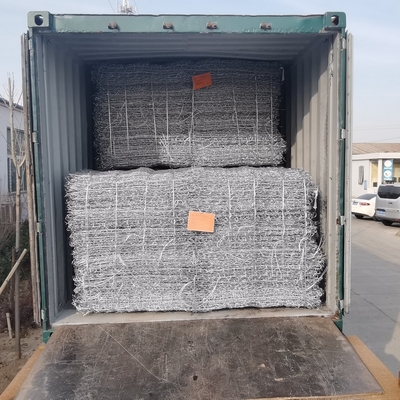

Pakcage: In Bundle ( After Compression)
Zinc Coating: Around 275g/sq.mt
Usage: Rive Protection, Retaing Wall, Flood Control
Product Description

Heavy Duty 3.0 mm Galfan 2m x 1m x 1m Wire Gabion Basket for Retaining Walls



This kind of gabion basket with extraordinary flexibility and can be applied to any terrain, such as: river bank, sea bank, under bridge, underwater, land and so on. easily installation make sure you finish the project in time.

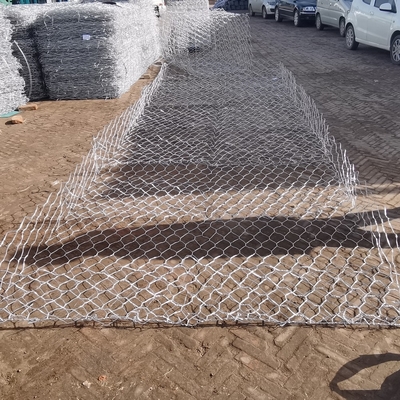

Gabion Wires Box are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.



The acceptable tolerances unless specified otherwise for Gabion Boxes / Mattresses shall be as under:

Tolerances
Gabion Baskets Gabion Mattresses
Size (m) Tolerance Size (m) Tolerance

L = 1.5 – 2.0-3.0 –4.0

W = 1.0

H = 0.5 –1.0

± 3%

± 5%

± 5 %

L = 3.0-4.0-5.0-60

W = 2.0-3.0

H for Mesh 5x7 = 0.15-0.20-0.25

H for Mesh 6x8 = 0.17-0.23-0.30

± 3%

± 3%

± 2.5 cm



Gabion Basket Technical Data Sheet
Material Q195, Low Carbon Steel Wire
Weave Type Double Twisted
Hole Shape Hexagonal
Surface Treatment Hot Dipped Galvanized PVC Coated
Mesh Hole 80 * 100 mm 60 * 80 mm 80 *100 mm 60 * 80 mm
Mesh Wire  2.2 - 3.0 mm 2.0 - 2.7 mm 2.2 / 3.2 - 3.0 / 4.0 mm 2.0 /3.0 - 2.7 / 3.7 mm
Selvage Wire 3.0 - 3.9 mm 3.0 - 3.7 mm 3.0 / 4.0 - 3.9 / 4.9 mm 3.0 / 4.0 - 3.7 / 4.7 mm
Lacing Wire 2.2 mm 2.2 mm 2.2 / 3.2 mm 2.2 / 3.2 mm
Gabion Basket Size 1 * 1 * 1 m, 2 * 1 * 1  m, 3 * 1 * 1 m, 4 * 1 * 1 *1 m, etc



Features:

1. Easy to install, no special technology required.

2. 6 M/S strong anti - scour ability, able to withstand water, flow speeds up to 6 M/S

3. Good Ductility, no structural joints

4. High strength, withstand a wide range of deformation.

Heavy Duty 3.0 Mm Galfan Mesh Gabion Baskets 2m X 1m X 1m Wire For Retaining Walls
