Product Details:
|
| Name: | 4x1x1m Hot Galvanized Iron Heavy Duty Gabion Baskets Fix Stone Filling Units | Type: | Weave Wire Mesh |
|---|---|---|---|
| Lacing Wire: | 2.2mm | Surface Treatment: | PVC Coated,Hot Galvanized |
| Mesh Shape: | Hexagonal Hole | Feature: | Anti-corrosion |
| Warranty: | ≥ 3 Years | Binding Wire: | Diameter Of 2.7m |
| High Light: | 4x1x1m galvanized rock cage,heavy duty hot galvanized rock cage,4x1x1m hexagonal gabion box |
||

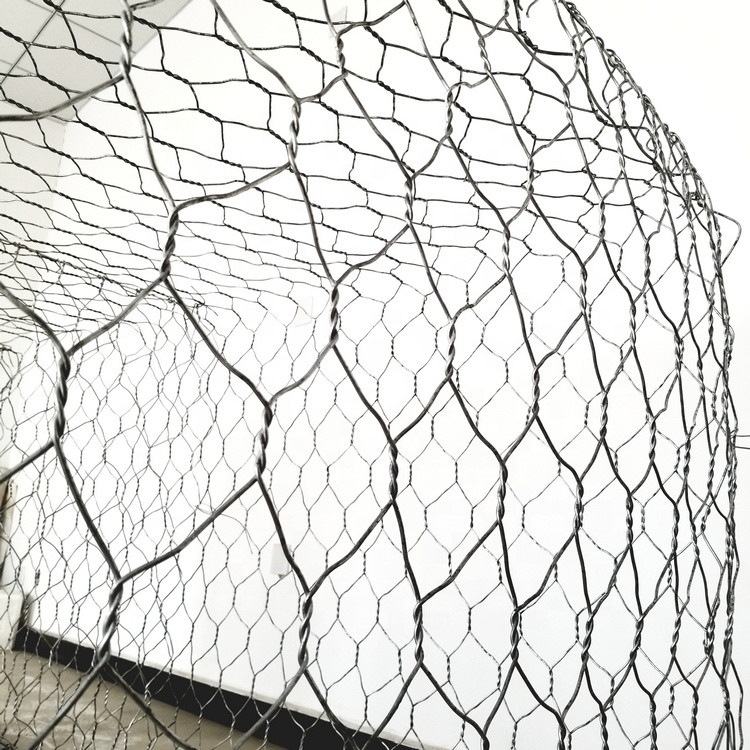

4x1x1m Hot Galvanized Iron Heavy Duty Gabion Baskets Fix Stone Filling Units
Gabion basket Description :
also known as gabion box and gabion net, is a new type of ecological grid structure. It has been successfully applied to water conservancy projects, highways, railway projects and dike protection projects, and has well realized the organic combination of engineering structure and ecological environment.
parameter:
| Name | 4x1x1m Hot Galvanized Iron Heavy Duty Gabion Baskets Fix Stone Filling Units |
| Type | Weave wire mesh |
| Lacing Wire | 2.2mm |
| Surface treatment | PVC coated,Hot galvanized |
| Mesh Shape | hexagonal hole |
| warranty | ≥ 3 years |
| Feature | Anti-corrosion |
| Binding wire | diameter of 2.7m |
| Gabion Baskets Specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||
Introduction to the use of gabion baskets:
The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.
●Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
●Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.
●Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.
Gabion Cage Advantage:
Flexibility,Durability,Strength,Permeability
Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
• It requires little maintenance
• Its installations does not require skilled labor and stone fill is available on site or from nearby quarries,
• It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth.
• Gabions are porous, requiring no costly drainage provision
