Product Details:
|
| Product Name: | Low-carbon Steel Wire Gabion Basket | Material: | Galvanized Steel Wire,Low-carbon Steel Wire |
|---|---|---|---|
| Surface Treatment: | Hot Galvanized, PVC Coated | Mesh Shape: | Hexagonal Hole, Three Twist Weave |
| Hole Size: | 60*80mm,80*100mm,100*120mm | Cage Size: | 1*1*1m,2*1*1m,3*1*1m,4*1*1m |
| Feature: | Have In Stock,Fast Delivery,Economic | ||
| High Light: | 1x1x2 m gabion fence baskets,three twist weave gabion fence baskets,low carbon steel gabion baskets 1x1x2 |
||
Low-carbon Steel Wire Gabion Basket Fence 1x1x2 m Stone Filled Box Gabion Walls Prices
Gabion baskets, also called gabion boxes, are made of corrosion-resistant, high-strength and ductile galvanized wire or PVC coated wire through mechanical weaving. Wire material is zinc -5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.
Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
| Product Name | Low-carbon Steel Wire Gabion Basket |
| Material | Low Carbon Steel Wire, Q195,Q235 |
| Process | Weave By Machine |
| Usage | Slope support, foundation pit support |
| Features | High corrosion resistance, high strength, ductility |
| Tensile Strength | 38kg/m2 |
| Introduction of gabion basket products | |||
|
Gabion box (mesh size): 80*100mm 100*120mm |
Mesh wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire Dia. | 3.4mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire Dia. | 2.2mm | zinc coating:60g,≥220g/m2 | |
|
Gabion mattress(mesh size): 60*80mm |
Mesh wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 | |
|
Available gabions of special sizes |
Mesh wire Dia. | 2.0~4.0mm | superior quality,competitive price and considerate service |
| Edge wire Dia. | 2.7~4.0mm | ||
| Tie wire Dia. | 2.0~2.2mm | ||
Gabion mattresses are used as retaining walls to provide various prevention and protection projects, such as landslide prevention, erosion and erosion protection, as well as hydraulic and coastal protection for various types of rivers, seas and river courses. This gabion mattress system is made of a specially designed composite material, which maximizes its performance through a three-stage vegetation process from non-vegetation to vegetation establishment to vegetation maturation.
Gabions offer excellent protection as soil stabilizers around bridges, bridge piers and abutment slopes. Generally, the degree of the slope to be protected shall determine what structure type is best suited for a specific application. Slopes with an angle of 1:1 or steeper usually require standard gabion retaining wall protection. Slopes with an angle of 1:1.5 or less may use a combination of gabion baskets and/or mattresses for slope protection.

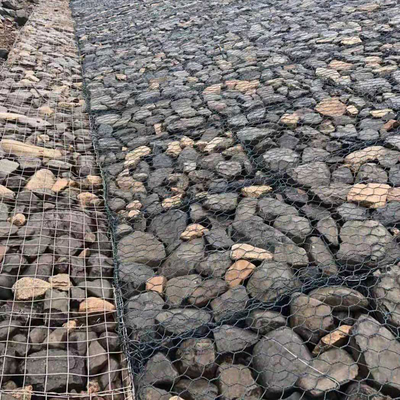

The cracks between the rocks used to pack gabions are frequently filled with soil to encourage plant growth, which makes gabion retaining walls ideal for projects where beauty is a must, such as controlling soil erosion along waterways that run through residential areas that need to be both long lasting and visually pleasing.
