Cage 4.0mm Hexagonal Wire Mesh Gabion Galvanized Iron Wire Mesh

Basic Properties
Place of Origin: Hebei, CHINA
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: SX-GABION
Trading Properties
Minimum Order Quantity: 100 pc
Price: Negotiated
Standard Packaging: wooden pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 500 pc per day
Product Summary
Gabion Mesh Cage Galvanized Hexagonal Iron Wire Mesh Gabion Baskets In Cambodia Gabion basket is an ecological grid structure. The stone cage net is mechanically woven from low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire. The box-shaped ...

Product Details

Highlight:

4.0mm hexagonal wire mesh gabion

,

galvanized iron hexagonal wire mesh gabion

,

4.0mm hexagonal gabion basket

Product Name: Galvanized Hexagonal Iron Wire Mesh Gabion Baskets
Material: Galvanized Steel Wire,Low-carbon Steel Wire
Wire Gauge: 2.0mm-4.0mm
Surface Treatment: Hot Galvanized, PVC Coated
Mesh Shape: Hexagonal Hole, Three-twist Weave
Hole Size: 60*80mm,80*100mm,100*120mm
Cage Size: 1*1*1m,2*1*1m,3*1*1m,4*1*1m
Feature: High Corrosion Resistance, High Strength, Ductility
Product Description

Gabion Mesh Cage Galvanized Hexagonal Iron Wire Mesh Gabion Baskets In Cambodia

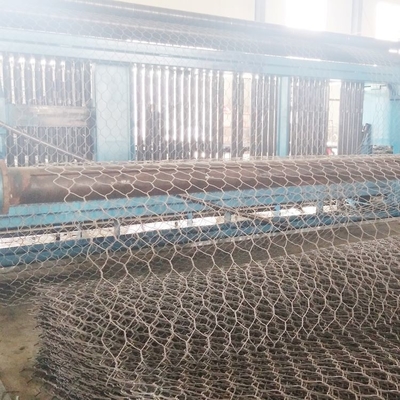

Gabion basket is an ecological grid structure. The stone cage net is mechanically woven from low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire. The box-shaped structure made by the net is the stone cage. The diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire is not less than 38kg/m2, and the metal coating weight is generally higher than 245g/m2. The diameter of the edge wire of the gabion mesh is generally larger than the diameter of the wire. The length of the twisted part of the double wire shall not be less than 50mm. To ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.



 Galvanized Hexagonal Iron Wire Mesh Gabion Basket
Mesh wire 2.0mm-4.0mm

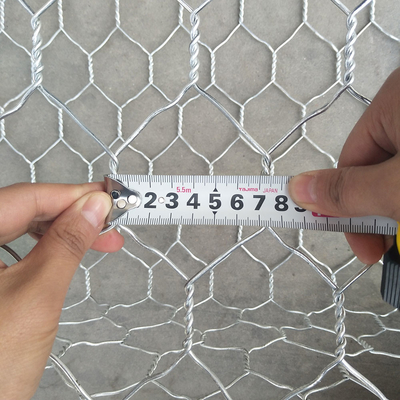

Mesh size 60*80mm,80*100mm,100*120mm
Selvedge wire thicker 0.5mm-1.0mm than mesh wire
Tie wire 2.2mm,2.5mm
Gabion size 1*1*1m,2*1*1m,3*1*1m,4*1*1m,6*2*0.3m
Surface treatment Hot dip galvanized, PVC coated
Introduction of gabion basket products

Gabion box (mesh size):

80*100mm

100*120mm

Mesh wire Dia. 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire Dia. 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire Dia. 2.2mm zinc coating:60g,≥220g/m2

Gabion mattress(mesh size):

60*80mm

Mesh wire Dia. 2.2mm zinc coating:60g, ≥220g/m2
Edge wire Dia. 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire Dia. 2.2mm zinc coating:60g, ≥220g/m2

Available gabions of

special sizes

Mesh wire Dia. 2.0~4.0mm superior quality,competitive price and considerate service
Edge wire Dia. 2.7~4.0mm
Tie wire Dia. 2.0~2.2mm



Introduction to the use of gabion baskets:



The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.

●Control and guide rivers and floods

The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.

●Channel canal bed

The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.

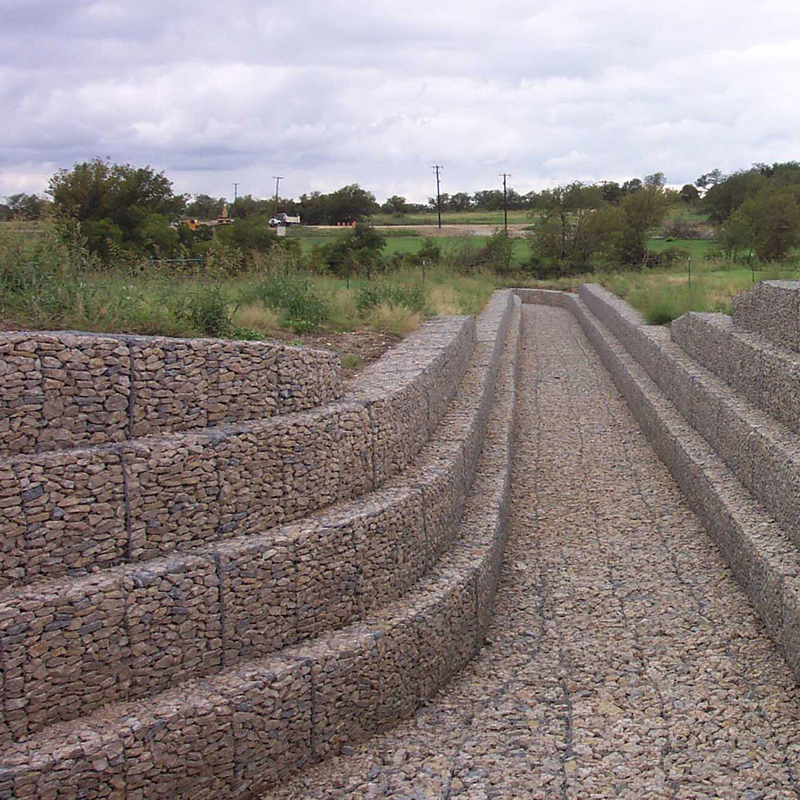

●Slope protection

The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.

​
