Product Details:
|
| Name: | 4x1x1m Hexagonal Galvanized 3.8mm Gabion Basket | Aperture: | 8x10cm |
|---|---|---|---|
| Lacing Wire: | 3.8mm | Surface Treatment: | Hot Galvanized |
| Mesh Shape: | Hexagonal Hole | Feature: | Wall Rust Proof Fix Stone Filling Units |
| Warranty: | ≥ 3 Years | Binding Wire: | Diameter Of 2.7m |
| High Light: | 4x1x1m galvanised gabions,hexagonal galvanised gabions,3.8mm galvanized gabion basket |
||

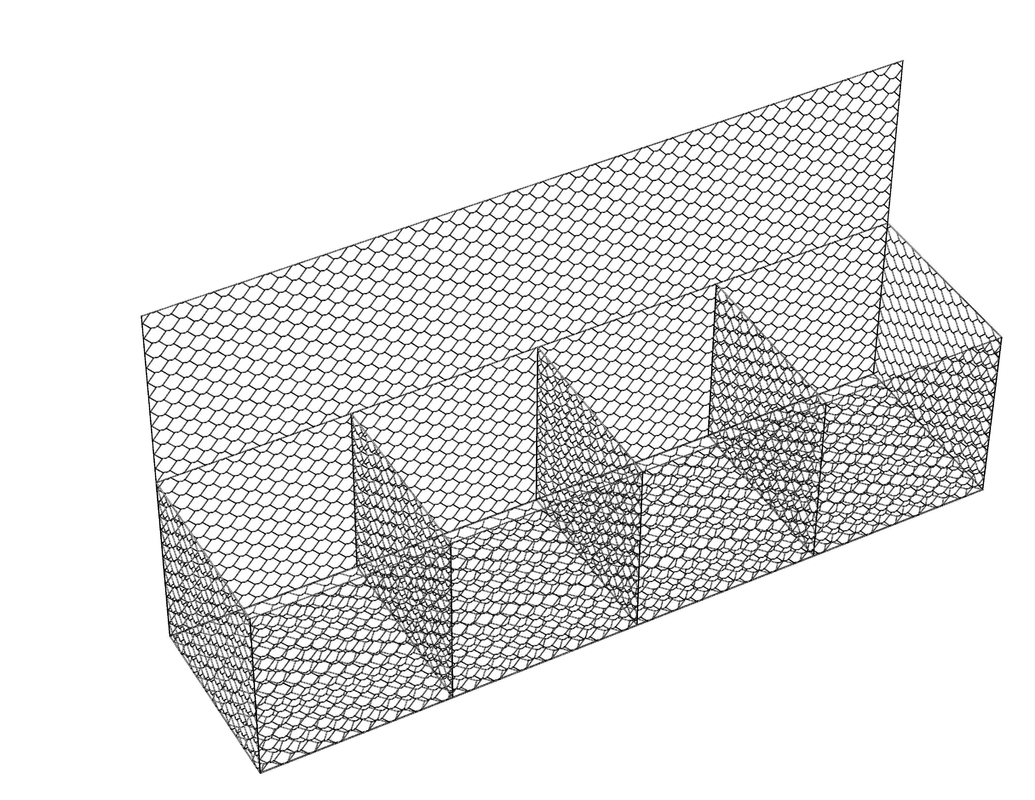

4x1x1m Hexagonal Galvanized 3.8mm Gabion Basket Wall Rust Proof Fix Stone Filling Units
Gabion basket Description :also known as gabion box and gabion net, Tensile strength of steel wire is not less than 38kg/m2, metal coating weight is higher than 245g/m2, high corrosion resistance, high strength, good ductility,Used for slope support, foundation pit support, slope greening, river bed protection, etc
parameter:
| Name | 4x1x1m Hexagonal Galvanized 3.8mm Gabion Basket Wall Rust Proof Fix Stone Filling Units |
| Aperture | 8x10cm |
| Lacing Wire | 3.8mm |
| Surface treatment | PVC coated,Hot galvanized |
| Mesh Shape | hexagonal hole |
| Feature | Anti-corrosion |
| Warranty | ≥ 3 years |
| Binding wire | diameter of 2.7m |
| Gabion Baskets Specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m | ||
Gabion Basket Advantage:
Flexibility,Durability,Strength,Permeability
Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
• It requires little maintenance
• Its installations does not require skilled labor and stone fill is available on site or from nearby quarries,
• It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth.
• Gabions are porous, requiring no costly drainage provision
