Product Details:
|
| Name: | 3.0mm 3x1x1m Galvanized Iron Heavy Duty Gabion Baskets Stone Filled For Roads And Bridges | Aperture: | 80*100mm |
|---|---|---|---|
| Wire Size: | 3.4mm | Surface Treatment: | Galvanized |
| Mesh Shape: | Weave Hexagonal | Package: | Wooden Pallet |
| Gabion Sizes: | 3x1x1m | Gabion Basket Application: | Can Be Widely Used In Flood Controling,retaining Wall,river Bank Protection,slope Protection Etc. |
| Mesh: | Hexagonal Shape | Wire Gauge: | 3.8mm |
| High Light: | 3mm galvanized gabion boxes,bridges galvanized gabion boxes,gabion baskets 3m x 1m x 1m |
||

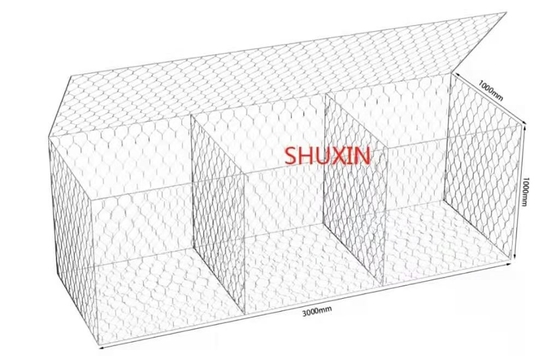

3.0mm 3x1x1m Galvanized Iron Heavy Duty Gabion Baskets Stone Filled For Roads And Bridges
Gabion basket:Flexible structure, safe and stable, strong anti-erosion ability, can withstand the water flow speed 6m/s four technological advantages: simple construction, sealing, do not need technology and hydropower, two low cost, low cost, three, beautiful landscape, good protection effect
parameter:
| Name | 3.0mm 3x1x1m Galvanized Iron Heavy Duty Gabion Baskets Stone Filled For Roads And Bridges |
| Aperture | 80*100mm |
| Wire size | 3.4mm |
| Sureface treatment | Galvanized |
| Mesh Shape | weave hexagonal |
| Package | Wooden Pallet |
| Gabion size | 3x1x1m |
| Gabion basket application | can be widely used in flood controling,retaining wall,river bank protection,slope protection etc. |
| Mesh | hexagonal shape |
| Wire Gauge | 3.8mm |
| Gabion Basket Specification | |||
| Length*Width*Height | 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m or Customized | ||
| Mesh Size | 60*80; 80*100; 100*120 as standard, or customized | ||
| Wire Diameter | 2.00mm to 4.0m or customized | ||
| Surface Finish | Electric Galvanized Hot Dipped Galvanized Galfan Coated PVC Coated |
||
| Weaving | Double Twist | ||
| PVC Coated Gabion Box Specification | |||
| Opening (mm) |
Wire Diameter(Metal Wire) (mm) | Wire Diameter (PVC Coate)/ Inner/Outside(mm) | |
| 60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | |
| 80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | |
| 80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | |
| 100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | |
| 100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | |
| 120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | |
The packing:
woven bags of the above and bottom,high quality package or as customers requested In roll ,water proof paper in side and our side with weave bag;carton;wooden case;pallet. according to customers requirement.
The Shipping:
Production time :15-20 days after received your payments Transportation way : by see or by air Port: XinGang TianJin or as your order
