Earth Retaining Wall 1m X 1m X 1m Gabion Box Fence Woven Three Twist Hexagonal Pvc Coating

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: Gabion-Weave
Trading Properties
Minimum Order Quantity: 100 pcs
Price: Negotiated
Standard Packaging: Packed in bundles.We have a lot of stock and can ship quickly.
Delivery Time: 7 work days
Payment Terms: T/T, Western Union, , D/A, D/P, L/C
Supply Ability: 30000 Square Meter/Square Meters per Day
Product Summary
Earth-Retaining Wall Woven Three-Twist Hexagonal PVC Coating Gabion Basket Box Cage Gabion is PVC coatings on zinc-coated metal wire fabric containers with variable sizes that fill rocks to form permanent structures. Green gabion mattress (Fibromat is also called gabion mattress system) is a great ...

Product Details

Highlight:

1m x 1m x 1m gabion box fence

,

earth retaining wall gabion box fence

,

1m x 1m x 1m twisted wire gabion baskets

Features: High Corrosion Resistance, High Strength, Ductility
Weave Style: Hexagonal Double Twisted Weaving
Color: Sliver,Green,Gray
Surface Treatment: Hot Dipped Galvanized, PVC Coated
Mesh Wire: 2.0mm-4.0mm
Selvedge Wire: 3.4mm, 3.8mm
Lacing Wire: Common Use 2.2mm
Zinc Coating: 240-260g/m2
Gabion Box Size: 1*1*1m / 1*1*2m/1*1*3m
Application: Earth-Retaining Wall, River Bank Gabion Protection
Product Description

Earth-Retaining Wall Woven Three-Twist Hexagonal PVC Coating Gabion Basket Box Cage

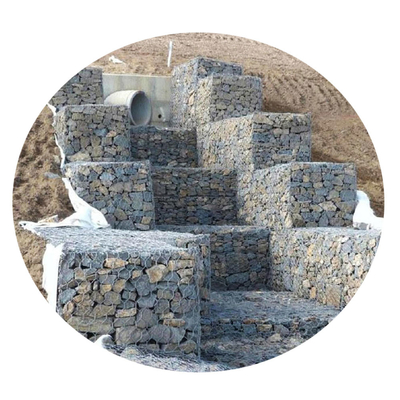

Gabion is PVC coatings on zinc-coated metal wire fabric containers with variable sizes that fill rocks to form permanent structures. Green gabion mattress (Fibromat is also called gabion mattress system) is a great soil stabilization system, which can be used for slope erosion control, toe and river bank protection, to maximize the permeability of the structure, while providing reinforcement and grassland construction.

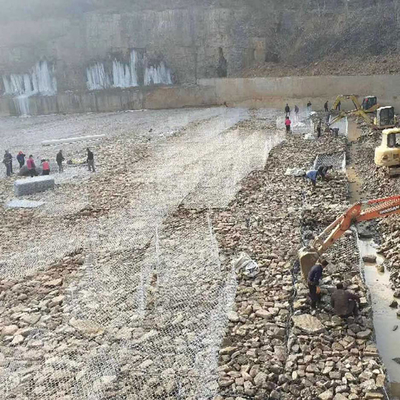

Gabion mattresses are used as retaining walls to provide various prevention and protection projects, such as landslide prevention, erosion and erosion protection, as well as hydraulic and coastal protection for various types of rivers, seas and river courses. This gabion mattress system is made of a specially designed composite material, which maximizes its performance through a three-stage vegetation process from non-vegetation to vegetation establishment to vegetation maturation.



Earth Retaining Wall 1m X 1m X 1m Gabion Box Fence Woven Three Twist Hexagonal Pvc Coating



Introduction of gabion products

Gabion box (mesh size):

80*100mm

100*120mm

Mesh wire Dia. 2.7mm zinc coating:60g,245g, ≥270g/m2
Edge wire Dia. 3.4mm zinc coating:60g,245g, ≥270g/m2
Tie wire Dia. 2.2mm zinc coating:60g,≥220g/m2

Gabion mattress(mesh size):

60*80mm

Mesh wire Dia. 2.2mm zinc coating:60g, ≥220g/m2
Edge wire Dia. 2.7mm zinc coating:60g,245g, ≥270g/m2
Tie wire Dia. 2.2mm zinc coating:60g, ≥220g/m2
Available gabions of special sizes Mesh wire Dia. 2.0~4.0mm superior quality,competitive price and considerate service
Edge wire Dia. 2.7~4.0mm
Tie wire Dia. 2.0~2.2mm

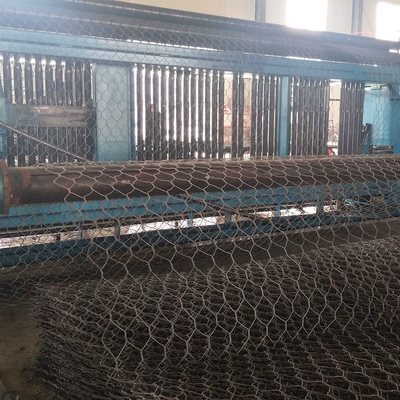

Gabion basket is made of twisted hexagonal woven mesh. The metal wire used to make gabion baskets is made of soft tensile heavy galvanized steel, and PVC coating can also be used for additional corrosion protection when the application requires. The double twisting of the woven wire mesh provides structural integrity, strength and continuity by increasing the non-loosening effect of preventing any accidental damage from spreading. Fastening wires are used to assemble and interconnect empty units and to close and fix stone filling units. Once assembled, the basket will be filled with stones at the scene.

Gabion Installation Process:

1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh

2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels

3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped

4. Box gabion filled with graded stone by hand or with a shovel.

5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.

6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.



Earth Retaining Wall 1m X 1m X 1m Gabion Box Fence Woven Three Twist Hexagonal Pvc Coating

Earth Retaining Wall 1m X 1m X 1m Gabion Box Fence Woven Three Twist Hexagonal Pvc Coating
