Product Details:
|
| Features: | Easy Installation, Suitable For Any Terrain | Name: | Wire Mesh Gabion Box |
|---|---|---|---|
| Material: | Galvanized Wire, PVC Wire, Galfan Wire | Weave: | Double Twist, Trible Twist |
| Mesh Wire: | From 2.4mm To 3.4mm | Selvage Wire: | From 3.0mm To 3.9mm |
| Biding Wire: | Common Use 2.2mm | Mesh Hole: | 60*80mm, 80*100mm, Customized |
| Gabion Size: | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 2*1*0.5m | Pakcage: | In Bundle ( After Compression) |
| Zinc Coating: | Around 275g/sq.mt | Usage: | Rive Protection, Retaing Wall, Flood Control |
| High Light: | 1m gabion basket retaining wall,corrosion resistance gabion basket retaining wall,galvanized gabion stone basket retaining wall |
||
BS 443/82 standard galvanized corrosion resistance gabion basket retain wall in Philippines
Gabion basket are mostly used in coastal cities or places with many rivers, it is mainly to protect river banks from being washed and prevent natural disasters, such as rainstorms and floods.
The diameter can be 2.0mm to 3.05mm, there are also a variety of mesh options to suit different needs, and the dimensions can also be customized according to customer requirements.
The acceptable tolerances unless specified otherwise for Gabion Boxes / Mattresses shall be as under:
| Tolerances | |||
| Gabion Baskets | Gabion Mattresses | ||
| Size (m) | Tolerance | Size (m) | Tolerance |
|
L = 1.5 – 2.0-3.0 –4.0 W = 1.0 H = 0.5 –1.0 |
± 3% ± 5% ± 5 % |
L = 3.0-4.0-5.0-60 W = 2.0-3.0 H for Mesh 5x7 = 0.15-0.20-0.25 H for Mesh 6x8 = 0.17-0.23-0.30 |
± 3% ± 3% ± 2.5 cm |
| Gabion Basket Technical Data Sheet | ||||
| Material | Q195, Low Carbon Steel Wire | |||
| Weave Type | Double Twisted | |||

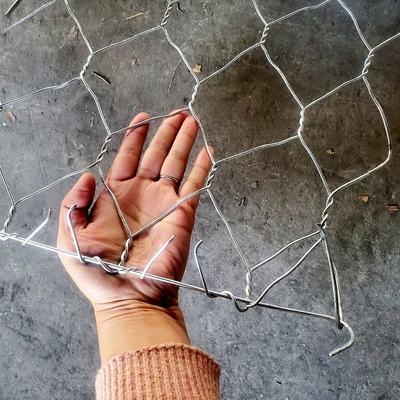

| Hole Shape | Hexagonal | |||
| Surface Treatment | Hot Dipped Galvanized | PVC Coated | ||
| Mesh Hole | 80 * 100 mm | 60 * 80 mm | 80 *100 mm | 60 * 80 mm |
| Mesh Wire | 2.2 - 3.0 mm | 2.0 - 2.7 mm | 2.2 / 3.2 - 3.0 / 4.0 mm | 2.0 /3.0 - 2.7 / 3.7 mm |
| Selvage Wire | 3.0 - 3.9 mm | 3.0 - 3.7 mm | 3.0 / 4.0 - 3.9 / 4.9 mm | 3.0 / 4.0 - 3.7 / 4.7 mm |
| Lacing Wire | 2.2 mm | 2.2 mm | 2.2 / 3.2 mm | 2.2 / 3.2 mm |
| Gabion Basket Size | 1 * 1 * 1 m, 2 * 1 * 1 m, 3 * 1 * 1 m, 4 * 1 * 1 *1 m, etc | |||
Features:
1. Easy to install, no special technology required.
2. 6 M/S strong anti - scour ability, able to withstand water, flow speeds up to 6 M/S
3. Good Ductility, no structural joints
4. High strength, withstand a wide range of deformation.
