2.7mm Woven Gabion Baskets Heavy Galvanized Hexagonal Retaining Wall Design

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: Gabion
Trading Properties
Minimum Order Quantity: 100 pcs
Price: Negotiated
Standard Packaging: Packed in bundles.We have a lot of stock and can ship quickly.
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 Square Meter/Square Meters per Day
Product Summary
Woven 2.7mm Heavy Galvanized Hexagonal Gabion Baskets Retaining Wall Design Product Description: Gabion baskets, also called gabion boxes, are made of corrosion-resistant, high-strength and ductile galvanized wire or PVC coated wire through mechanical weaving. Wire material is zinc -5% aluminum ...

Product Details

Highlight:

2.7mm woven gabion baskets

,

retaining wall design woven gabion baskets

,

3m x 1m x 1m gabion baskets

Product Name: 2.7mm Galvanized Gabion Baskets Retaining Wall
Material: Galvanized Iron Wire
Type: Weave Gabion
Wire Gauge: 2.0mm - 4.0mm
Surface Treatment: Hot Dipped Galvanized,PVC Coated
Hole Size: 60*80/80*100/100*120mm
Delivery Time: Within 7 Days
Application: Retaining Wall,protection
Hole Shape: Hexagonal
Advantage: Easy To Assemble And Durable
Product Description

Woven 2.7mm Heavy Galvanized Hexagonal Gabion Baskets Retaining Wall Design





Product Description:

Gabion baskets, also called gabion boxes, are made of corrosion-resistant, high-strength and ductile galvanized wire or PVC coated wire through mechanical weaving. Wire material is zinc -5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.



Material Galvanized low carbon steel wire

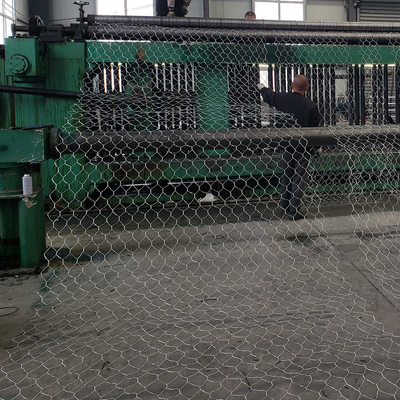

Weave Type Three-twist weave

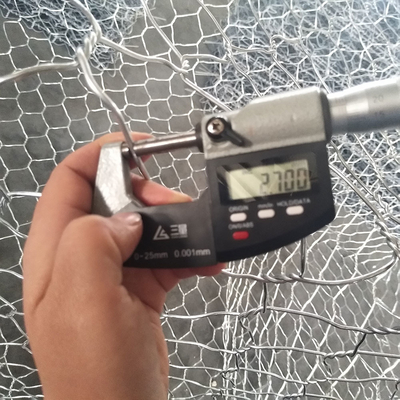

Wire diameter Mesh wire:2.0mm-4.0mm
Selvedge wire:3.4mm, 3.8mm
Lacing wire:2.2mm
Mesh size 60*80mm, 80*100mm, 100*120mm
Hole Shape Hexagonal
Gabion size 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m,
Surface treatment HD galvanized, PVC coated
Color Green,Sliver
Characteristics Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported.
Usage Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project
Packaging Packed in bundles or pallets or according to customer's requirements.



Gabion Application:

Bridge protection

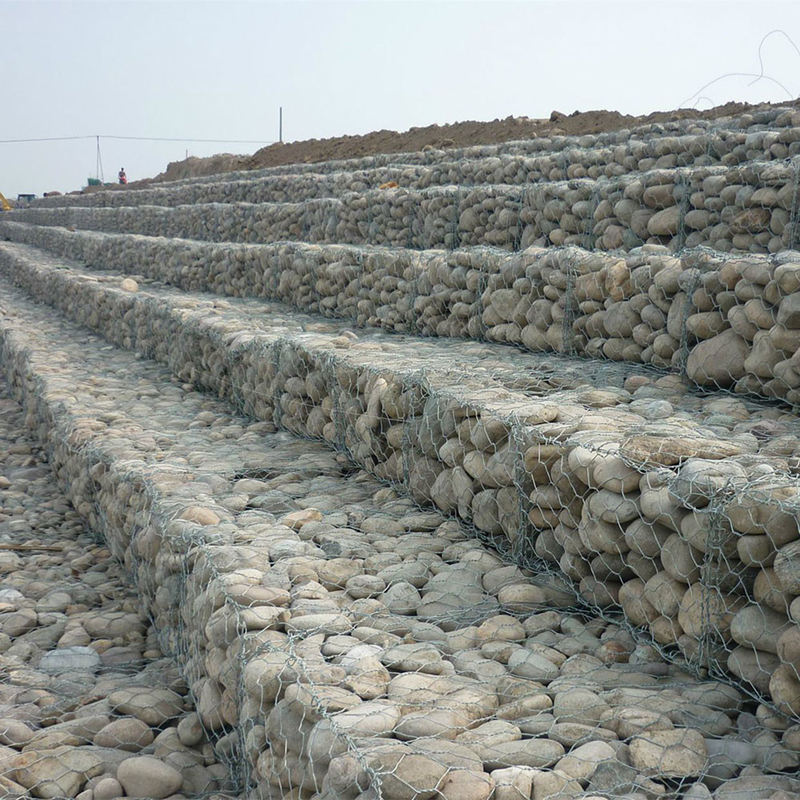

Gabions offer excellent protection as soil stabilizers around bridges, bridge piers and abutment slopes. Generally, the degree of the slope to be protected shall determine what structure type is best suited for a specific application. Slopes with an angle of 1:1 or steeper usually require standard gabion retaining wall protection. Slopes with an angle of 1:1.5 or less may use a combination of gabion baskets and/or mattresses for slope protection.

Gabion mattresses used in channel for erosion protection

The cracks between the rocks used to pack gabions are frequently filled with soil to encourage plant growth, which makes gabion retaining walls ideal for projects where beauty is a must, such as controlling soil erosion along waterways that run through residential areas that need to be both long lasting and visually pleasing.



Gabion Installation Process:

1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh

2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels

3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped

4. Box gabion filled with graded stone by hand or with a shovel.

5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.

6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
