Product Details:
|
| Features: | High Corrosion Resistance, High Strength, Ductility | Weave Style: | Hexagonal Double Twisted Weaving |
|---|---|---|---|
| Color: | Sliver，Green，Gray | Surface Treatment: | Hot Dipped Galvanized, PVC Coated |
| Mesh Wire: | 2.0mm-4.0mm | Selvedge Wire: | 3.4mm, 3.8mm |
| Lacing Wire: | Common Use 2.2mm | Zinc Coating: | 240-260g/m2 |
| Gabion Box Size: | 1*1*1m / 1*1*2m/1*1*3m/1*1*4m | Application: | Earth-Retaining Wall, River Bank Gabion Protection |
| High Light: | 2x1x1m woven gabions,slope protection woven gabions,slope protection galvanized gabion |
||

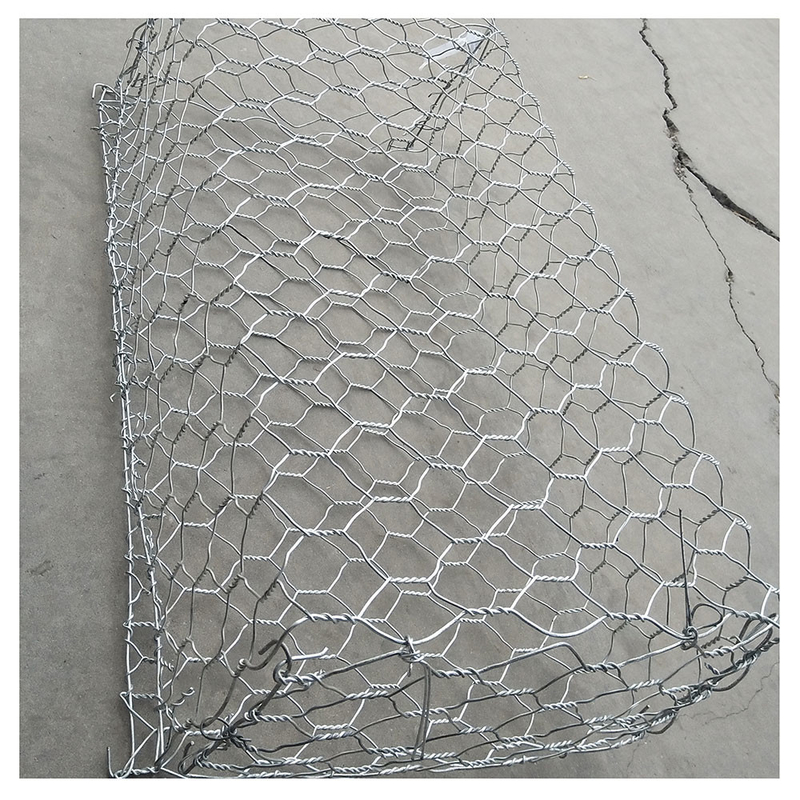

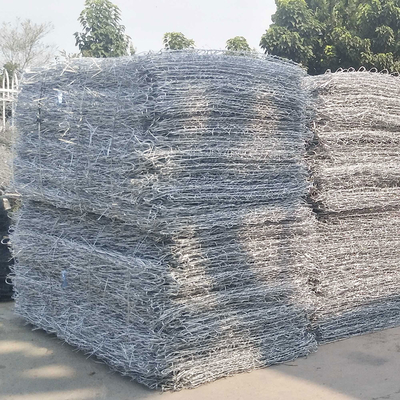

2x1x1m Gabion Woven Wire Basket Gabion Mattress for River Bank and Slope Protection
Gabion baskets, also called gabion boxes, are made of corrosion-resistant, high-strength and ductile galvanized wire or PVC coated wire through mechanical weaving. Wire material is zinc -5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.
Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
| Mesh wire | 2.0mm-4.0mm |
| Mesh size | 60*80mm,80*100mm,100*120mm |
| Selvedge wire | Thicker 0.5mm-1.0mm than mesh wire |
| Tie wire | Common use 2.2mm |
| Gabion size | 1*1*1m,2*1*1m,3*1*1m,4*1*1m,6*2*0.3m |
| Surface treatment | Hot dip galvanized, PVC coated |
| Material | Low Carbon Steel Wire, Q195,Q235 |

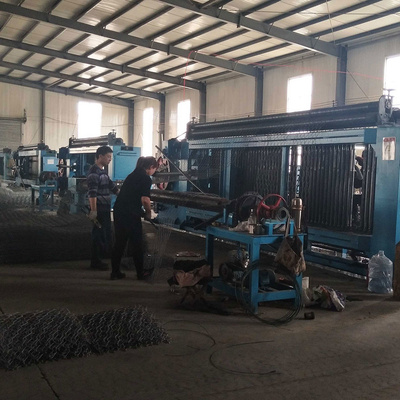

| Process | Weave By Machine |
| Usage | Slope support, foundation pit support |
| Features |
High corrosion resistance, high strength, ductility |
| Tensile Strength | 38kg/m2 |
Gabion Basket Application:
Retaining wall
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Bridge protection
Gabions offer excellent protection as soil stabilizers around bridges, bridge piers and abutment slopes. Generally, the degree of the slope to be protected shall determine what structure type is best suited for a specific application. Slopes with an angle of 1:1 or steeper usually require standard gabion retaining wall protection. Slopes with an angle of 1:1.5 or less may use a combination of gabion baskets and/or mattresses for slope protection.
Gabion mattresses used in channel for erosion protection
The cracks between the rocks used to pack gabions are frequently filled with soil to encourage plant growth, which makes gabion retaining walls ideal for projects where beauty is a must, such as controlling soil erosion along waterways that run through residential areas that need to be both long lasting and visually pleasing.
Gabion Installation Process:
1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
