Product Details:
|
Features: | High Corrosion Resistance, High Strength, Ductility | Weave Style: | PVC Coated Gabions Baskets Prices Retaining Wall |
---|---|---|---|
Color: | Sliver,Green,Gray | Surface Treatment: | Hot Dipped Galvanized, PVC Coated |
Mesh Wire: | 2.0mm-4.0mm | Selvedge Wire: | 3.4mm, 3.8mm |
Lacing Wire: | Common Use 2.2mm | Zinc Coating: | 240-260g/m2 |
Gabion Box Size: | 1*1*1m / 2*1*1m / 3*1*1m / 2*1*0.5m | Application: | Earth-Retaining Wall, River Bank Gabion Protection |
High Light: | galvanized metal gabion cages,3mx1mx1m metal gabion cages,gabion baskets 3mx1mx1m |
Iron Wire Mesh Galvanized/PVC Coated Gabions Baskets Prices Retaining Wall Blocks
Gabion basket, also known as gabion box and gabion net, is a new type of ecological grid structure. It has been successfully applied to water conservancy projects, highways, railway projects and dike protection projects, and has well realized the organic combination of engineering structure and ecological environment. At the same time, compared with the traditional rigid structure, it has its own advantages and has become the preferred structural form for riverbed, landslide, debris flow, rockfall protection and environmental protection worldwide.

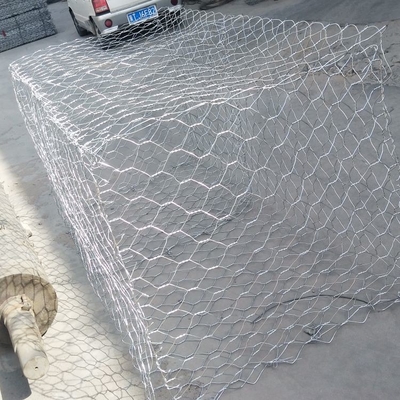

Gabion basket is made of twisted hexagonal woven mesh. The metal wire used to make gabion baskets is made of soft tensile heavy galvanized steel, and PVC coating can also be used for additional corrosion protection when the application requires. The double twisting of the woven wire mesh provides structural integrity, strength and continuity by increasing the non-loosening effect of preventing any accidental damage from spreading. Fastening wires are used to assemble and interconnect empty units and to close and fix stone filling units. Once assembled, the basket will be filled with stones at the scene.
Introduction of gabion basket |
|||
Gabion basket (mesh size): 80*100mm 100*120mm |
Mesh wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
Edge wire Dia. | 3.4mm | zinc coating:60g,245g, ≥270g/m2 | |
Tie wire Dia. | 2.2mm | zinc coating:60g,≥220g/m2 | |
Gabion mattress(mesh size): 60*80mm |
Mesh wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 |
Edge wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 | |
Tie wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 | |
Available gabions of special sizes |
Mesh wire Dia. | 2.0~4.0mm | superior quality,competitive price and considerate service |
Edge wire Dia. | 2.7~4.0mm | ||
Tie wire Dia. | 2.0~2.2mm |
Gabion is PVC coatings on zinc-coated metal wire fabric containers with variable sizes that fill rocks to form permanent structures. Green gabion mattress (Fibromat is also called gabion mattress system) is a great soil stabilization system, which can be used for slope erosion control, toe and river bank protection, to maximize the permeability of the structure, while providing reinforcement and grassland construction.
Gabion Basket Application:
●Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
●Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.
●Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.
Gabion Installation Process:

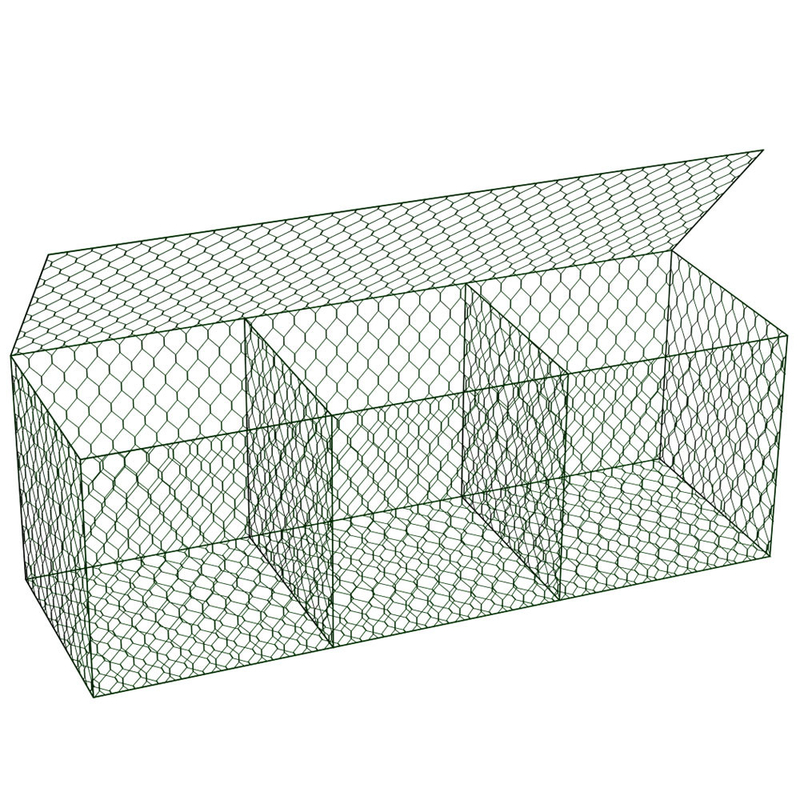

1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
