Product Details:
|
| Material: | Low-carbon Steel Iron Wire Mesh | Surface: | Galvanized/PVC Coated |
|---|---|---|---|
| Application: | Stone Cage | Hole Shape: | Hexagonal |
| Wire Gauge: | 2.0-4.0mm | Hole Size: | 60*80/80*100/100*120 Mm |
| High Light: | hexagonal gabion wall retaining wall,2mm gabion wall retaining wall,2mm pvc gabion baskets |
||

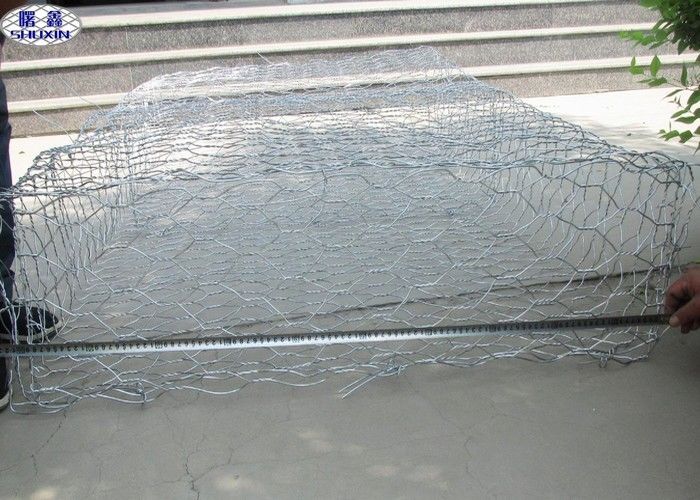

PVC Coated And Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall In The Philippines
Hexagonal Wire Mesh Gabion Basket are boxes which are engineered from triple / quintuple twisted hexagonal woven wire mesh. It is usable for the control of rivers and floods, flood discharge dam and diversion dam, and rock slope protection. The management and production system is certified with ISO9001.
| Introduction of Hexagonal Wire Mesh Gabion Basket | |||
|
Gabion box (mesh size): 80*100mm 100*120mm |
Mesh wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire Dia. | 3.4mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire Dia. | 2.2mm | zinc coating:60g,≥220g/m2 | |
|
Gabion mattress(mesh size): 60*80mm |
Mesh wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 | |
| Available gabions of special sizes | Mesh wire Dia. | 2.0~4.0mm | superior quality,competitive price and considerate service |
| Edge wire Dia. | 2.7~4.0mm | ||
| Tie wire Dia. | 2.0~2.2mm | ||
| Applications |
Retaining wall |
| Applications | Control and guide of water or flood |
| Applications | Flood bank or guiding bank |
| Applications | Preventing of rock breaking |
| Applications | Water and soil protection |
| Applications | Bridge protection |
Protection engineering of seaside area
Stone Filled Gabion Box Advantage:
Flexibility: Flexibility is an important benefit of any gabion structure.
Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy..
Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
Ecology: Gabions is an environmentally sensitive solution to slope stabilization.
Aesthetics: Gabions supporting vegetation has already been discussed
