Product Details:
|
| Material: | Low-carbon Steel Iron Wire Mesh | Surface: | Galvanized/PVC Coated |
|---|---|---|---|
| Aperture: | 80x100mm | Application: | Stone Filled Gabion Basket |
| Wire Gauge: | 2.0-4.0mm | Hole Size: | 60*80/80*100/100*120 Mm |
| High Light: | anti rust galvanized gabion baskets,8x10cm galvanized gabion baskets,4mm heavy duty gabion baskets |
||

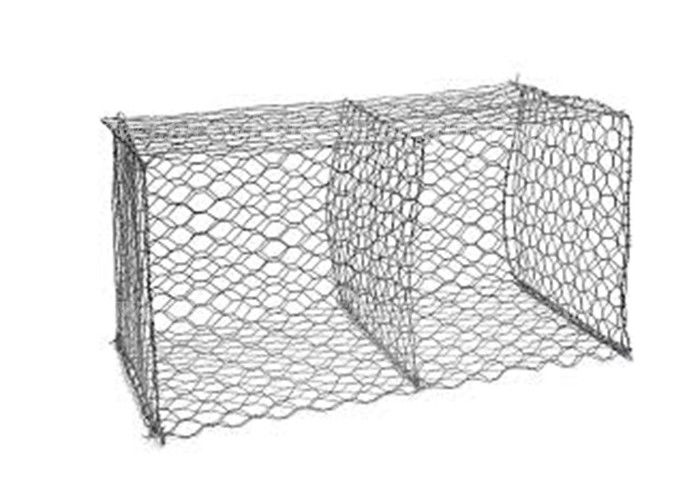

4mm Anti Rust Gabion Box Woven Stone Filled Gabion Basket 8X10CM In The United States
Stone Filled Gabion Basket
1. Materials: hot dipped galvanized wire and PVC coated galvanized wire
2. Mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
| Introduction of Stone Filled Gabion Basket products | |||
|
Gabion box (mesh size): 80*100mm 100*120mm |
Mesh wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire Dia. | 3.4mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire Dia. | 2.2mm | zinc coating:60g,≥220g/m2 | |
|
Gabion mattress(mesh size): 60*80mm |
Mesh wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire Dia. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 | |
| Tie wire Dia. | 2.2mm | zinc coating:60g, ≥220g/m2 | |
| Available gabions of special sizes | Mesh wire Dia. | 2.0~4.0mm | superior quality,competitive price and considerate service |
| Edge wire Dia. | 2.7~4.0mm | ||
| Tie wire Dia. | 2.0~2.2mm | ||
Detail
| Material | Low-carbon Steel Iron Wire Mesh |
| Surface | Galvanized/PVC Coated |
| Aperture | 80x100mm |
| Application | Stone Filled Gabion Basket |
| Wire Gauge | 2.0-4.0mm |
| Hole size | 60*80/80*100/100*120 mm |
Stone Filled Gabion Box Applications:
Retaining wall
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Stone Filled Gabion Box Installation Process:
1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
