Product Details:
|
| Product Name: | Rockfall Protection Netting Hexagonal Woven Wire Mesh Gabion Basket | Material: | Galvanized Iron Wire, Low-Carbon Iron Wire |
|---|---|---|---|
| Mesh Shape: | Hexagonal Hole | Surface Treatment: | PVC Coated Or Hot Galvanized |
| Weave Style: | Three-twisted Weaving | Hole Size: | 60*80mm,80*100mm,100*120mm |
| Cage Size: | 1*1*1m,2*1*1m,3*1*1m，4*1*1m | Feature: | High Corrosion Resistance, High Strength, Ductility |
| High Light: | rockfall protection netting 4mm gabion baskets,retaining wall 4mm gabion baskets,4mm gabion wire mesh basket |
||
Rockfall Protection Netting Gabion Wire Mesh Basket Retaining Wall
China Top Gabion Company
Expert Rockfall Netting
Our Projects: On Time, On Budget, Superior Quality

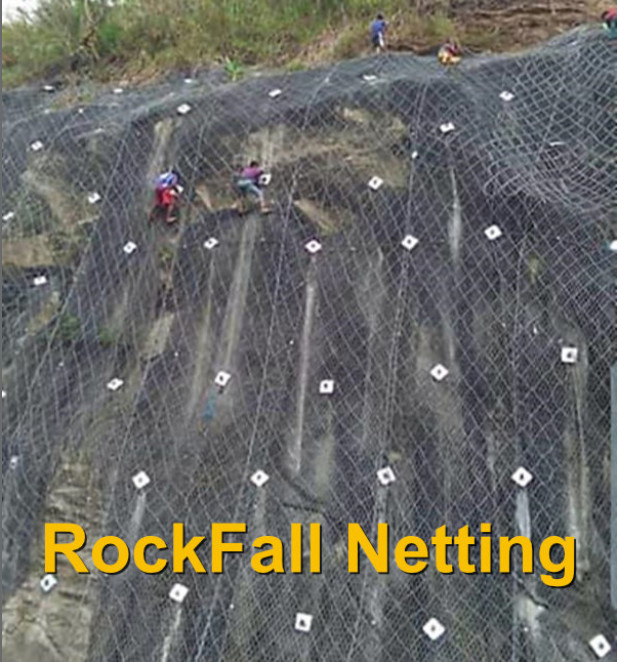

Rockfall Netting is applied for Slope Protection projects, preserving the natural state of the slope, allowing drainage, assisting the slope to re-vegetate, thus providing more natural protection of the slope.
Specification of Rockfall Protection Netting
| Material |
8*10cm 2.7mm Galvanized/PVC Coated 2x1x1m Gabion Basket |
|
| Weave Type | Three-twist we | |
| Wire diameter | Mesh wire:2.0mm-4.0mm | |
| Selvedge wire:3.4mm, 3.8mm | ||
| Lacing wire:2.2mm, 2.5mm | ||
| Mesh size | 60*80mm, 80*100mm, 90*110mm, 100*120mm | |
| Hole Shape | Hexagonal | |
| Gabion size | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m | |
| Surface treatment |
HD galvanized, PVC coated |
|
| Color | Green,Sliver | |
| Characteristics |
Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported. |
|
| Usage |
Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project |
|
| Packaging | Packed in bundles or pallets or according to customer's requirements. | |
Detail of Rockfall Protection Netting
| Product name | Anping ISO Factory Hexagonal Gabion Retaining Wall Gabion Stone Cage Gabion Box In The Philippines |
| Mesh Shape | Hexagonal hole |
| Surface treatment | PVC coated or hot galvanized |
| Weave Style | Three-twisted Weaving |
| Feature | High corrosion resistance, high strength, ductility |
When your gabion walls are being used as erosion control, a civil engineer experienced in flood control and erosion prevention, should be consulted. Gabions are a proven method of halting river bank erosion, for both large rivers and small streams that are prone to flooding. Any river erosion system needs to be designed to cope with the expected peak river flood volumes, as this is when most damage to river banks and their erosion protection measures occurs. Flood events are often described as 1 in 100yr floods or 1 in 50yrs floods, and any river bank protection system needs to be able to cope with these flood events.
Gabion Basket Characteristics:
(1) Economic. Just fill the stone into the gabion and seal it.
(2) Simple installation. No special technology needed.
(3) Weather proof under natural destroy, corrosion resistant.
(4) No collapse even under big scope of deforming.
(5) Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
(6) Good permeation can prevent the damage by hydrostatics.
(7) Less transport freight. It can be folded together for transport and further installation.
