Product Details:
|
Product Name: | Barbed Wire | Zinc Coated: | 40-60g/m2,8-20g/m2 |
---|---|---|---|
Weight Coil: | 5-50KG | Roll Length: | 100m,200m,350m,400m,500m |
Breaking Load (Rupture): | 250KGF,350KGF | Surface Treatment: | Hot Dipped Galvanized |
Material: | Q235 Steel Wire | Wire Gauge(SWG): | 10# 12# 14# 16# 18# |
Highlight: | 5 tiers layer chicken cage,hdg layer chicken cage,250 birds chicken laying eggs cage |

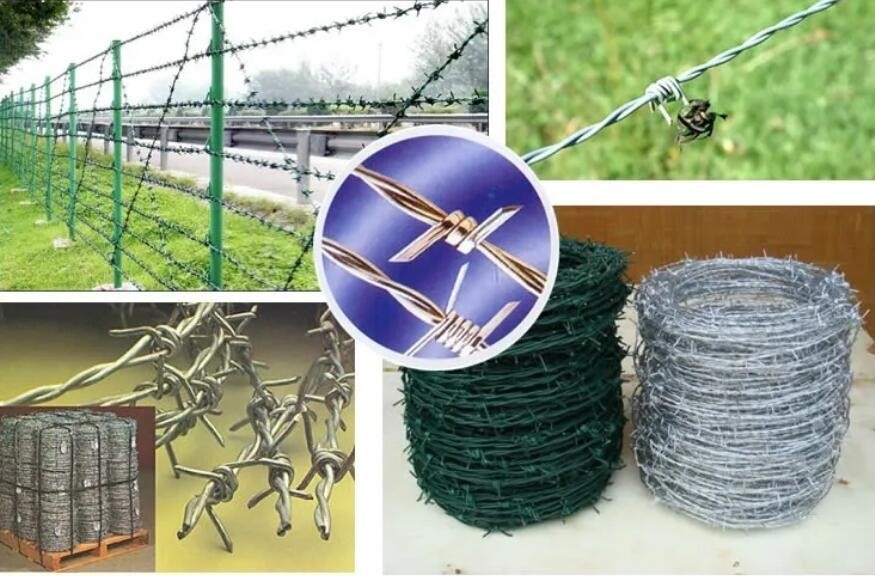

Barbed wire is twisted wires armed with barbs or sharp points. Double twist barbed wire consists of two wire strands together with four point barbs, placed at predetermined distance. Normally, the standard barbs distance are 3inch,4inch,5inch. Single twist barbed wire use high or low carbon wire as main wire with either two or four point barbs. Barbed wire produce with roll packing. In order to protect hands during load and unload, it is also usually installed with handle. We supply both double twist barbed wire and single twist barbed wire with high quality. Barbed wire is common fence material. It’s not only used individually to barbed wire fence but also can be attached onto various fence mesh, such as Chain link fence, welded wire mesh panel. Barbed wire is used chiefly for fencing in livestock, keeping out trespassers. It is suitable for agriculture, animal boundary, prison protection, and security applications. Features: Low cost, non-climb, Materials: Electro-galvanized wire, Hot-dipped galvanized wire, PVC Coated galvanized wire Applications: Farm fencing, Airport fencing, Building fence etc.
Barbed wire type and specifications | |||
Type | Wire Gauge(SWG) | Barb Distance | Barb Length |
Electro Galvanized Barbed Wire Hot-dipped zinc plating barbed wire |
10#*12# | 3"-6" | 14-24mm |
12#*12# | |||
12#*14# | |||
14#*14# | |||
14#*16# | |||
16#*16# | |||
16#*18# | |||
PVC coated barbed wire PE coated barbed wire |
Before coating / After coating | ||
1.0-3.5mm/ 1.4-4.0mm | |||
BWG11#-20#/BWG8#-17# | |||
SWG11#-20#/SWG8#-17# | |||
Zinc coated: 40-60g/m2,8-20g/m2 Weight coil:5-50KG Roll length:100m,200m,350m,400m,500m Breaking load (Rupture):250KGF,350KGF Barbed wire weave types: Double twist barbed wire, Traditonal Twist barbed wire, Single strand barbed wire PVC PE coating thickness:0.4-0.6mm; different colors or length are available at customers request |
GALVANIZED BARBED WIRE | ||||
Wire Diameter (BWG) |
Length per KG | |||
Barb distance 3” |
Barb distance 4” |
Barb distance 5” |
Barb space 6” |
|
12 x 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12 x 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12.5 x 12.5 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12.5 x 14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
13 x 13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
13 x 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13.5 x 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14 x 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14.5 x 14.5 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15 x 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15.5 x 15.5 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
High-Quality Construction: Length of 100 meters (328 feet) with a diameter of 15GA (1.7mm). The barbed wire features 4-point barbs twisted both forward and backward, ensuring maximum security and effective intrusion prevention.
⚙️ Twist Design: Designed to twist forward and backward, enhancing durability and strength. This design ensures the barbed wire remains securely attached and resilient under various weather conditions and external pressures.

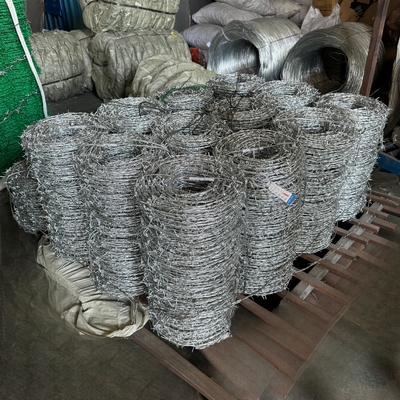

Packing&Shipping:
