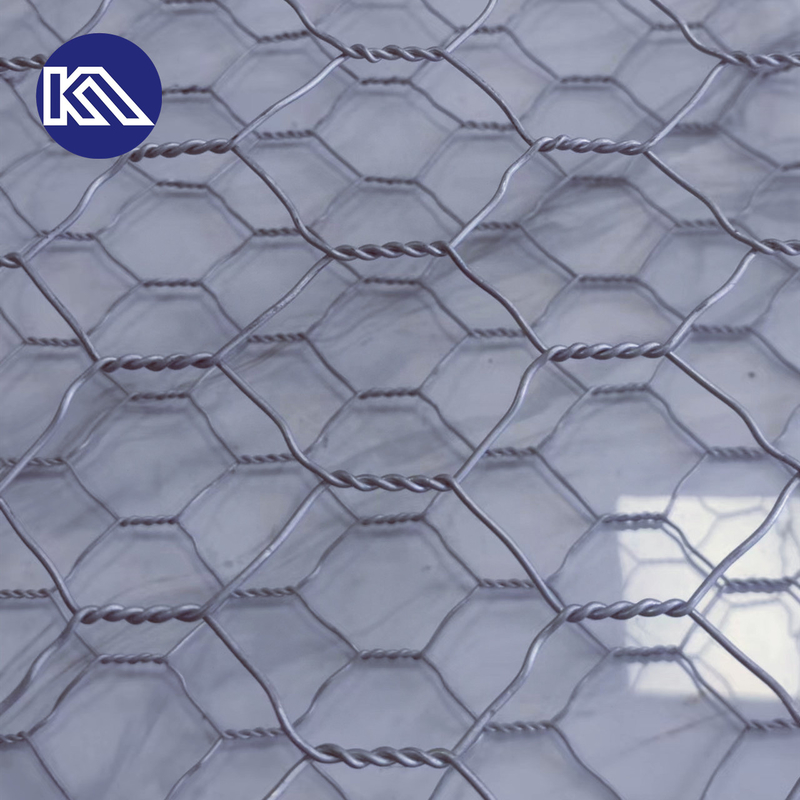

Galvanized Hexagonal Hole Woven Gabion Baskets Stone Cage For River Wall

Basic Properties
Place of Origin: CHINA
Brand Name: SHUXIN
Certification: ISO,CE,SGS,
Model Number: SX-gabion basket-02
Trading Properties
Minimum Order Quantity: 1300PCS
Price: USD: 6-8/PCS
Standard Packaging: Bundle and Container
Delivery Time: 6-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: 120000 PCS Per Week
Product Summary
Galvanized hexagonal hole Stone Cage Gabion Mesh Gabion box For River Wall Gabion mesh is a kind of iron wire or polymer wire mesh pattern making the rockfill fixed in place. The wire cage is a structure made of wire woven mesh or welded. These two structures can be electroplated, and the woven wire ...

Product Details

Highlight:

hexagonal hole woven gabion baskets

,

river wall woven gabion baskets

,

3m x 1m x 1m gabion baskets

Name: Gabion Basket
Material: Galvanized Wire, PVC Wire, Galfan Wire
Weave: Double Twist
Mesh Wire: 2.5/2.8/3.0mm
Selvage Wire: 3.4mm
Biding Wire: 2.2mm
Mesh Hole: 60*80mm, 80*100mm, 100mm*120mm
Gabion Size: 6*2*0.3m, 2*1*1m, 3*1*1m, 4*1*1m
Warranty: ≥ 2 Years
Application: Gabions Retaining Wall, Bank Protection
Product Description

Galvanized hexagonal hole Stone Cage Gabion Mesh Gabion box For River Wall

Gabion mesh is a kind of iron wire or polymer wire mesh pattern making the rockfill fixed in place. The wire cage is a structure made of wire woven mesh or welded. These two structures can be electroplated, and the woven wire box can be coated with PVC. Weathering resistant hard stone shall be used as filler, which will not be quickly broken due to abrasion in the stone box or gabion settlement. Gabions with different types of block stones have different characteristics. The polygonal block stones can be interlocked well with each other, and the gabions filled with them are not easy to deform. In landscape engineering, highway slope protection, embankment revetment and mountain slope greening have always been a headache for engineers and technicians. For many years, they have been exploring a process that can not only meet the protection requirements for the stability of mountains and beaches, but also achieve the effect of greening the environment, while also being economical and convenient. Gradually, this process began to emerge, which is the ecological gabion net application process. The application process of ecological gabion net is to weave rectangular cages of different specifications with high-strength galvanized steel wire, and the cage is filled with stones. After this structure is applied to bank slope protection, under the dual action of human and natural factors, the gap between stones is continuously filled with soil. The plant seeds gradually take root and sprout in the soil between the rocks, and grow vigorously. The roots firmly fix the rocks and soil. In this way, the purpose of slope protection and greening can be realized, and the effect of ecological improvement and water and soil conservation is also very significant.

Galvanized Hexagonal Hole Woven Gabion Baskets Stone Cage For River Wall

Mesh Hole
PVC Coated Wire (Inner/Outside
Hot Dipped Galvanized Wire
Galfan Coated Wire
60*80mm
2.0mm/3.0mm-2.8mm/3.8mm
2.2mm-3.8mm
2.2mm-3.8mm
80*100mm
2.2mm/3.2mm-3.0mm/4.0mm
3.2mm-4.0mm
3.2mm-4.0mm
100*120mm
2.4mm/3.4mm-3.2mm/4.2mm
3.4mm-4.2mm
3.4mm-4.2mm
120*150mm
2.7mm/3.7mm-3.5mm/4.5mm
3.7mm-4.5mm
3.7mm-4.5mm
Length (M)
Width (M)
Height (M)
Diaphragm Quantity
1
1
1
0
2
1
1
1
3
1
1
2
4
1
1
3
6
1
1
5
2
1
0.5
1
3
1
0.5
2
3
2
0.3
5

Galvanized Hexagonal Hole Woven Gabion Baskets Stone Cage For River Wall

It can be produced according to the design requirements of the drawings. Generally, the machine is up to 4m wide and any length. However, the conventional size of Renault pad in China is 6*2*0.3m, mesh: 6*8cm, wire diameter: 2.0mm. Materials: galvanized, galvanized PVC (PVC color is usually gray or green), Galfan commonly known as 5% or 10% zinc aluminum alloy, zinc aluminum alloy coated PVC. Zinc aluminum alloy material is the best quality of these products, and its service life is 70~80 years! The cage size is generally 2*1*1m 4*1*1m 1*1*1m, and the mesh pad size is generally 6*2*0.3m 6*2*0.17m 4*2*0.35m.

Galvanized Hexagonal Hole Woven Gabion Baskets Stone Cage For River Wall

Gabion pad material:
(1) Galvanized steel wire: high-quality low-carbon steel wire, with a diameter of 2.0mm-4.0mm, and a tensile strength of not less than 380MPa. The surface of the steel wire is protected by hot galvanizing. The thickness of the galvanized protective layer is made according to the customer's requirements, and the maximum amount of galvanizing can reach 300g/m2.
(2) Zinc-5% aluminum mixed rare earth alloy steel wire: (also known as golfan) steel wire, which is a new material in the world in recent years, has corrosion resistance more than three times that of traditional pure galvanizing. The diameter of the steel wire can reach 2.0mm-4.0mm, and the tensile strength of the steel wire is not less than 380MPa.
(3) Galvanized steel wire wrapped with plastic: high-quality low-carbon steel wire is wrapped with a layer of PVC or PE protective layer on the surface of the steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.
(4) Zinc-5% aluminum mixed rare earth alloy steel wire wrapped with plastic: a layer of PVC or PE protective layer is wrapped on the surface of Zinc-5% aluminum mixed rare earth alloy steel wire, and then woven into gabion nets of various specifications. This protective layer will greatly increase the protection in highly polluted environment, and make it integrate with the surrounding environment through the selection of different colors.

Galvanized Hexagonal Hole Woven Gabion Baskets Stone Cage For River WallGalvanized Hexagonal Hole Woven Gabion Baskets Stone Cage For River Wall
