Standard River Protection Erosion Control Gabion Baskets Galvanized 2x1x1m

Basic Properties
Place of Origin: Hebei, China
Brand Name: SHUXIN
Certification: CE SGS ISO COC
Model Number: Gabion
Trading Properties
Minimum Order Quantity: 100 pcs
Price: Negotiated
Standard Packaging: Packed in bundles.We have a lot of stock and can ship quickly.
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000 Square Meter/Square Meters per Day
Product Summary
Standard Kenya 2x1x1m Gabion Baskets River Gabion Protection Galvanized Gabion Basket Price Product Description: Gabion basket, also known as gabion box and gabion net, is a new type of ecological grid structure. It has been successfully applied to water conservancy projects, highways, railway ...

Product Details

Highlight:

standard erosion control gabion baskets

,

galvanized erosion control gabion baskets

,

2mx1mx1m tall gabion baskets

Product Name: Kenya 2x1x1m Gabion Baskets River Gabion Protection
Material: Galvanized Iron Wire
Type: Weave Gabion
Wire Gauge: 2.0mm - 4.0mm
Surface Treatment: Hot Dipped Galvanized,PVC Coated
Hole Size: 60*80/80*100/100*120mm
Delivery Time: Within 7 Days
Application: Retaining Wall,protection
Hole Shape: Hexagonal
Advantage: Easy To Assemble And Durable
Product Description

Standard Kenya 2x1x1m Gabion Baskets River Gabion Protection Galvanized Gabion Basket Price





Product Description:

Gabion basket, also known as gabion box and gabion net, is a new type of ecological grid structure. It has been successfully applied to water conservancy projects, highways, railway projects and dike protection projects, and has well realized the organic combination of engineering structure and ecological environment. At the same time, compared with the traditional rigid structure, it has its own advantages and has become the preferred structural form for riverbed, landslide, debris flow, rockfall protection and environmental protection worldwide.

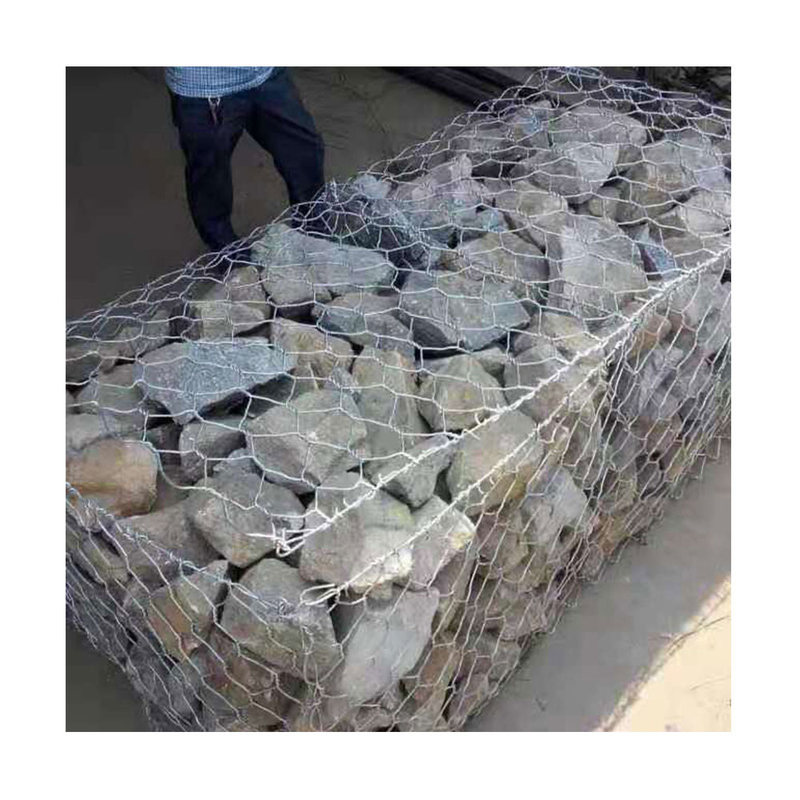

Gabion basket is made of twisted hexagonal woven mesh. The metal wire used to make gabion baskets is made of soft tensile heavy galvanized steel, and PVC coating can also be used for additional corrosion protection when the application requires. The double twisting of the woven wire mesh provides structural integrity, strength and continuity by increasing the non-loosening effect of preventing any accidental damage from spreading. Fastening wires are used to assemble and interconnect empty units and to close and fix stone filling units. Once assembled, the basket will be filled with stones at the scene.



Material Galvanized low carbon steel wire
Weave Type Three-twist weave
Wire diameter Mesh wire:2.0mm-4.0mm
Selvedge wire:3.4mm, 3.8mm
Lacing wire:2.2mm
Mesh size 60*80mm, 80*100mm, 100*120mm
Hole Shape Hexagonal
Gabion size 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m,
Surface treatment HD galvanized, PVC coated
Color Green,Sliver
Characteristics Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported.
Usage Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project

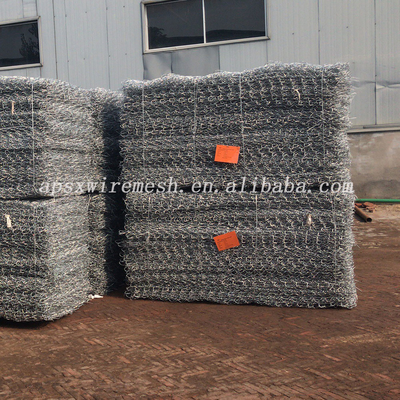

Packaging Packed in bundles or pallets or according to customer's requirements.



Gabion Basket Application:

Gabion mattresses are used as retaining walls to provide various prevention and protection projects, such as landslide prevention, erosion and erosion protection, as well as hydraulic and coastal protection for various types of rivers, seas and river courses. This gabion mattress system is made of a specially designed composite material, which maximizes its performance through a three-stage vegetation process from non-vegetation to vegetation establishment to vegetation maturation.

Bridge protection

Gabions offer excellent protection as soil stabilizers around bridges, bridge piers and abutment slopes. Generally, the degree of the slope to be protected shall determine what structure type is best suited for a specific application. Slopes with an angle of 1:1 or steeper usually require standard gabion retaining wall protection. Slopes with an angle of 1:1.5 or less may use a combination of gabion baskets and/or mattresses for slope protection.

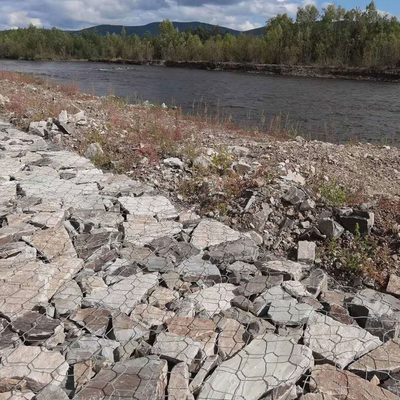

Gabion mattresses used in channel for erosion protection

The cracks between the rocks used to pack gabions are frequently filled with soil to encourage plant growth, which makes gabion retaining walls ideal for projects where beauty is a must, such as controlling soil erosion along waterways that run through residential areas that need to be both long lasting and visually pleasing.



Retaining Gabion Advantages:
1). Flexible structure to adapt to changes in the slope without being destroyed, better than the rigid structure with the security and stability;
2). Anti-erosion ability, able to withstand the maximum flow rate of up to 6m / s .
3). This structure has essentially permeability, groundwater and the filtering effect of the natural role of a strong inclusive, suspended matter and silt in the water to move in to fill the crevice in precipitation, which is conducive to the growth of natural plants, and gradually restore the original ecological environment.



Standard River Protection Erosion Control Gabion Baskets Galvanized 2x1x1m
