Product Details:
|
| Delivery Time: | Within 7 Days | Product Name: | 80x100mm 2.7mm Hexagonal Woven Gabion Basket Mesh |
|---|---|---|---|
| Material: | Steel Wire, Galvanized Wire | Gabion Size: | 1*1*1m, 2*1*1m, 3*1*1m, 2*1*0.5m |
| Wire Gauge: | 2.0mm - 4.0mm | Surface Treatment: | Hot Dipped Galvanized,PVC Coated |
| Hole Size: | 60*80/80*100/100*120mm | Application: | Gabions, Rockfall Protection, Bank Protection |
| Hole Shape: | Hexagonal | Advantage: | Easy To Assemble And Durable |
| High Light: | machine weaving gabion cages and baskets,80x100mm gabion cages and baskets,gabion cages and baskets 1mx1m |
||
Hexagonal Woven Gabion Basket Mesh Machine Weaving 80x100mm Hole 2.7mm Gabion Box
Product Description:
Heavy galvanized coated
Mesh hole : 80*100 mm
Mesh wire : 2.7 mm

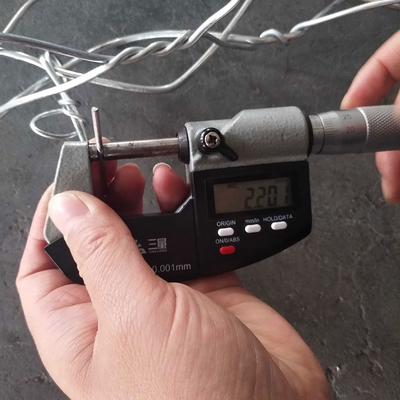

Tie wire : 2.2 mm
Selvedge wire : 3.4 mm
Including binding wire for gabion box.

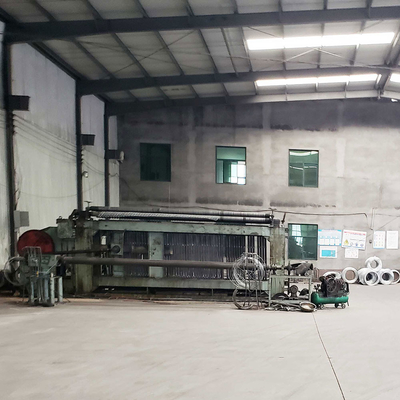

We have 7 machines to produce gabion baskets, and daily production is 30,000 square meters. Have a lot of stock
Gabion basket is an ecological grid structure. The stone cage net is mechanically woven from low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire. The box-shaped structure made by the net is the stone cage. The diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire is not less than 38kg/m2, and the metal coating weight is generally higher than 245g/m2. The diameter of the edge wire of the gabion mesh is generally larger than the diameter of the wire. The length of the twisted part of the double wire shall not be less than 50mm. To ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.
Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
| Material | Galvanized low carbon steel wire |
| Weave Type | Three-twist weave |
| Wire diameter | Mesh wire:2.0mm-4.0mm |
| Selvedge wire:3.4mm, 3.8mm | |
| Lacing wire:2.2mm | |
| Mesh size | 60*80mm, 80*100mm, 100*120mm |
| Hole Shape | Hexagonal |
| Gabion size | 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, |
| Surface treatment | HD galvanized, PVC coated |
| Color | Green,Sliver |
| Characteristics | Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported. |
| Usage | Water or flood control and guidance, prevention of rock breakage, coastal area protection projects, road protection.river gabion protection project |

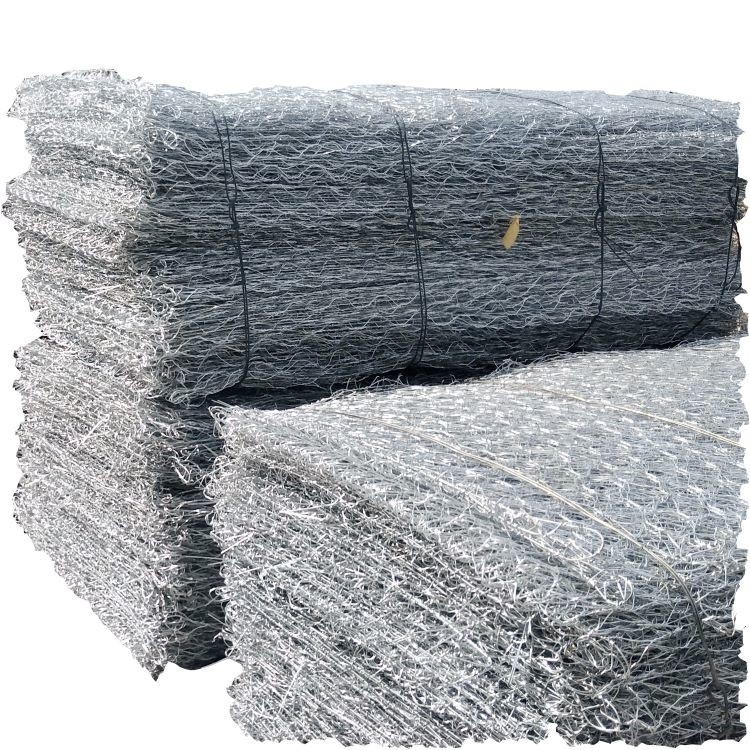

| Packaging | Packed in bundles or pallets or according to customer's requirements. |
Gabion Basket Application:
Retaining wall
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Strengthening structure of soil
Protection engineering of seaside area
Gabions offer excellent protection as soil stabilizers around bridges, bridge piers and abutment slopes. Generally, the degree of the slope to be protected shall determine what structure type is best suited for a specific application. Slopes with an angle of 1:1 or steeper usually require standard gabion retaining wall protection. Slopes with an angle of 1:1.5 or less may use a combination of gabion baskets and/or mattresses for slope protection.
The cracks between the rocks used to pack gabions are frequently filled with soil to encourage plant growth, which makes gabion retaining walls ideal for projects where beauty is a must, such as controlling soil erosion along waterways that run through residential areas that need to be both long lasting and visually pleasing.
Advantages of gabion basket structure:
1. The flexible structure can adapt to the changes of the slope without being destroyed, and has better safety and stability than the rigid structure;
2. Strong anti-scouring ability, can withstand the maximum water flow speed up to 6m/s;
3. The structure is inherently water-permeable, and has strong tolerance to the natural and filtering effects of groundwater. Suspended matter and silt in the water can be deposited in the rockfill, which is beneficial to the growth of natural plants. Restore the original ecological environment.
Gabion Basket Installation Process:
1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh
2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped
4. Box gabion filled with graded stone by hand or with a shovel.
5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.
6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
