Pvc Coated Galvanized Gabion Baskets Garden Iron Wire Mesh 2*1*1m

PVC Coated Gabion Basket Prices Galvanized Iron Wire Mesh Gabion 2*1*1m Philippines For Sale

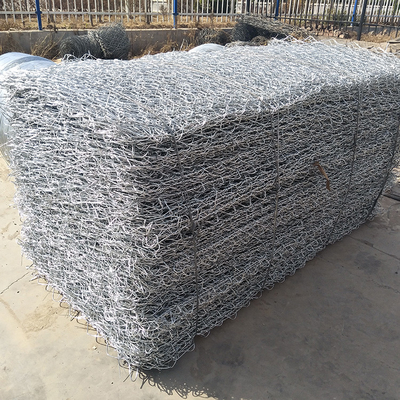

Gabion baskets, also called gabion boxes, are made of corrosion-resistant, high-strength and ductile galvanized wire or PVC coated wire through mechanical weaving. Wire material is zinc -5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

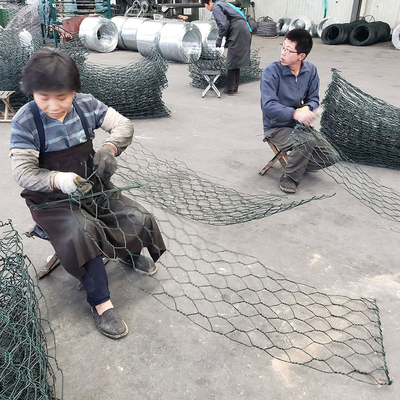

Gabion basket is woven from low-carbon steel wire treated with anti-corrosion technology. The mesh is shaped like a hexagon. The cage has a spacer per meter and is divided into independent units.

Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.

Introduction to the use of gabion baskets:

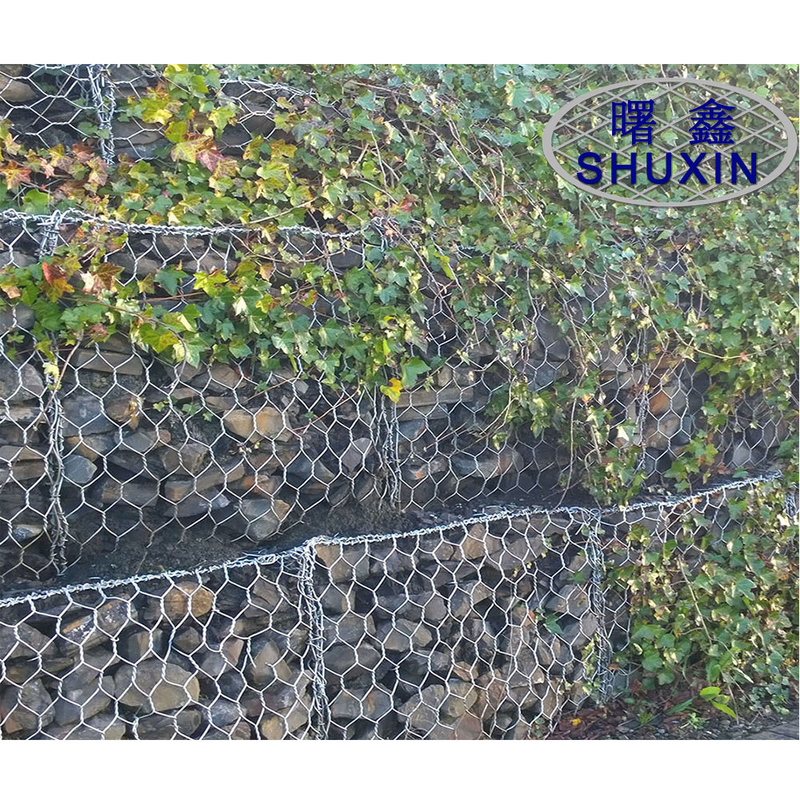

The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.

●Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
●Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.
●Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.

Gabion Installation Process:

1. Ends,diaphragms,front and back panels are placed upright on the bottom section of wire mesh

2. Secure panels by screwing sprial binders through the mesh openings in adjacent panels

3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,and crimped

4. Box gabion filled with graded stone by hand or with a shovel.

5. After filling,close the lid and secure with sprial binders at the diaphragms,ends,front and back.

6. When stacking tiers of the weled gabion,the lid of the lower tier may serve as base of the upper tier.Secure with sprial binders and add pre-formed stiffeners to exterior cells before filling with graded stones.
